60 IFC-3030 Installation Manual — P/N 52024:C 08/05/2005
Applications Connecting a Releasing Device to a M300CJ Module
4.7.1 Connecting an NBG-12LRA Agent Release-Abort Station

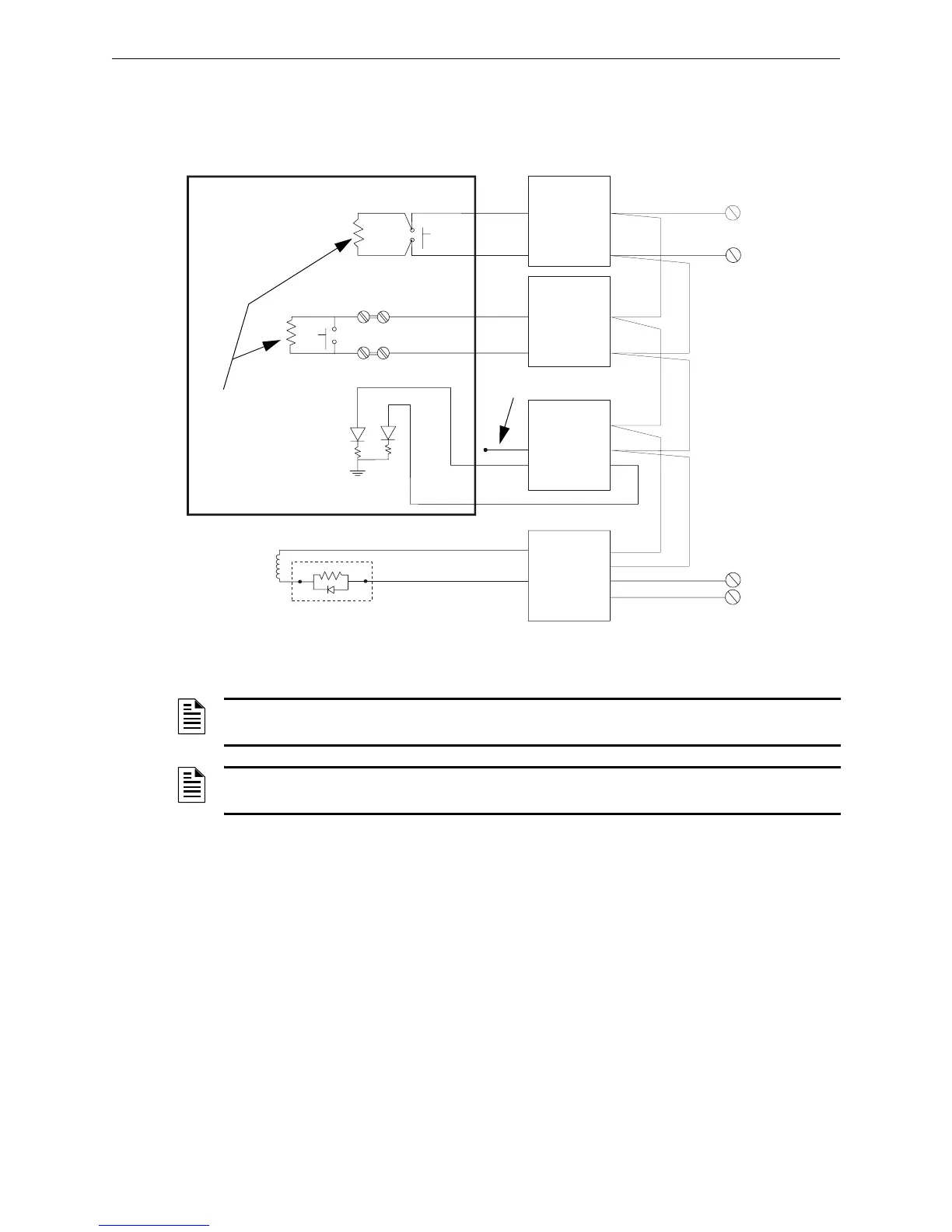

Typical Connections Figure 4.11 shows typical connections for wiring an NBG-12LRA Agent
Release-Abort Station.
+
+
–
–
–
–
+
+
+
1
2
4
6
5
7 -
6 +
1
2
3
4
0
–
–
+
+
–
–
+
–
–
+
SLC loop to FACP,
LCM-320, or LEM-320
M300CJ
M300RJ
M301MJ
M301MJ
Black
Red
Yellow
Violet
Black
Red
Yellow
Violet
Non-resettable +24 VDC
from AMPS-24/E
Manual Abort
Manual Release
Normal
Release
NBG-12LRA
See Document 51369
for installation details.
ELR mode R-47K
supervised and
power-limited
RedBrown
24 VDC UL-listed
releasing device
C.
N.O.
REL-47K
(use with Type Code
“Rel Ckt ULC”)
3030-NBG12LRA.wmf
System
Common (–)
24 VDC power
from FACP’s
main power supply
N.C.
Figure 4.11 Typical Connections for an NBG-12LRA Agent Release-Abort Station
NOTE: See Circuit Requirements for Section 4.7 “Connecting a Releasing Device to a M300CJ
Module” on page 59.
NOTE: Devices for use in releasing applications must be programmed as type code RELEASE
CIRCUIT or REL CKT ULC.
