56 IFC-3030 Installation Manual — P/N 52024:C 08/05/2005
Applications Fire/Security Applications
4.5.8 Single Tenant Security System with Entry/Exit Delay
The following system requirements are illustrated in Figure 4.8.
• One IFC-3030 Control Panel
• Multiple Security Supervisory Circuits Reporting to Central Station as a Single Area
• The minimum security equipment required is as follows:
—Multiple MM Monitor Modules per Protected Area
—One Group Interface for security alarm
—One Group Interface to generate trouble arming system
—Contact Switch for Each Entry/Exit Door
—RKS-S Key Switch
—MM Monitor Modules
—Remote Annunciator for Each Entry/Exit Door
(ACM-24AT, ACM-48A, ACM-16AT, ACM-32A)
—Security Devices
Programming Notes for Figure 4.8
1. Programming of Key Switch, Access Points, and Motion Detection
RKS Remote Key Switch with Monitor Module
Address: LXXMYYY (arbitrary)
Type ID: ACCESS MONITOR
Zone Map: (none)
Custom Label: Arming Switch
TENANT A
Area6_b.cdr
AREA 1
(Perimeter
and interior)
To Signaling
Line Circuit
MM
To Central Station
(via EIA-485 circuit)
Entry/Exit Door
IFC-3030 Central Station
* Group Interface must be
physically located in either
the protected premises or
the Central Station
Key
Motion Detector
Contact Switch
Contact Switch with MM Module
Pull Station
Smoke Detector
RKS-S Remote Key Switch with MM Module
Remote Annunciator
MM Security Access Monitor
Group Interface *
CM
MM CM
Note: See Programming Notes for Figure 4.8.

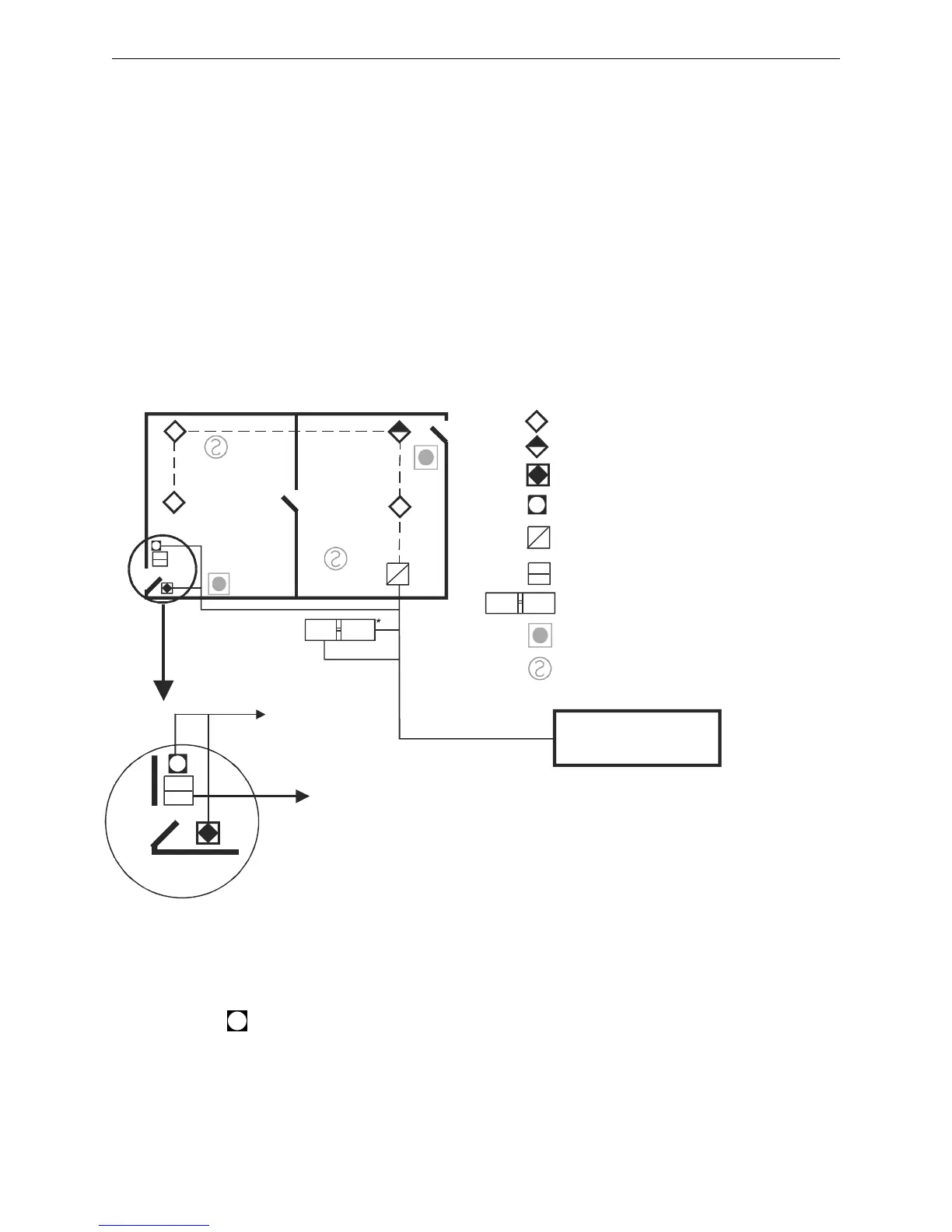

Figure 4.8 Single Tenant Security System with Entry/Exit Delay
