32 IFC-3030 Installation Manual — P/N 52024:C 08/05/2005
Installation NACs with ICM-4RK
⁄
ICE-4
3.9.1 Power Supply Connections

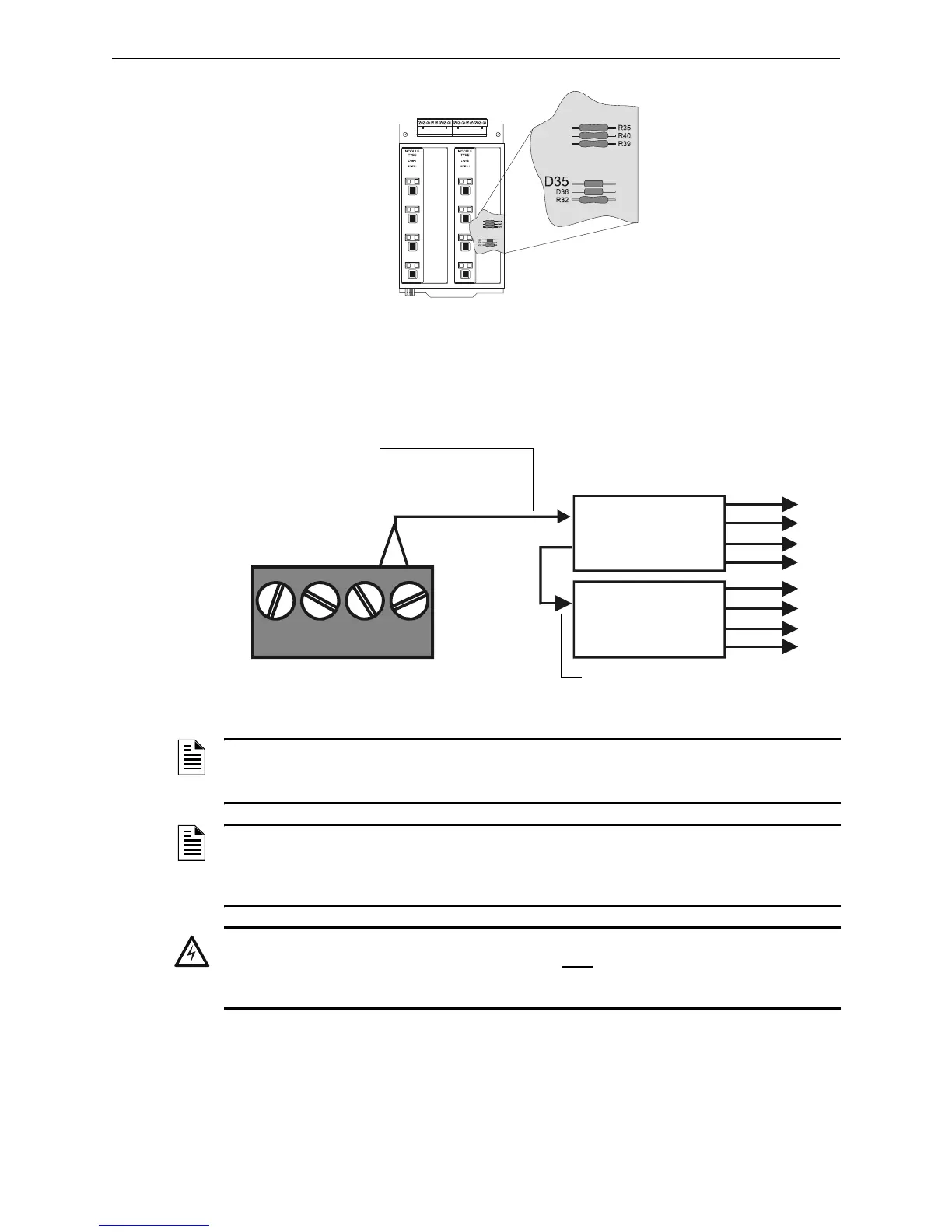

Figure 3.14 illustrates typical connections from the main power supply. Figure 3.15 shows location
of those connections on the bottom of the ICM-4RK and the ICE-4 modules.
Cut D35 on the circuit board to
produce California code.
icm-4rk-d35.cdr
Figure 3.13 Location of D35 on ICM-4RK Circuit Board
J5
J6
J5
+5V
1
MP
GND
GND
ACCESSORIES TB6
+24V
1
MP
Power Cable P/N 71091
Power Harness (71093)
Black wire (–), Blue wire (+)
Note: Lugs must be removed and wires stripped
for connection to the power source.
3030-icmnac.cdr
Eight NACs that share up to 1 A.
See note below.
AMPS-24/E
ICM-4RK
ICE-4
Figure 3.14 ICM-4RK/ICE-4 Main Power Supply Connection
NOTE: For limitations on the total current available for any group of Notification Appliance
Circuits (NACs), see Section 3.13 “Notification Appliance Circuit Current Limitations” on page 36,
as well as the manual for your system’s power supply.
NOTE: ICM-4RK could be connected to a compatible UL/ULC-listed +24V auxiliary power
supply instead (such as APS-6R). Refer to the manual for your auxiliary power supply for
equivalent connections. If an auxiliary power supply is used, maximum current per circuit is 3
Amps, total output limited to the maximum rating of the supply.
!
b
WARNING:
Auxiliary power supply connections to ICM-4RK/ICE-4 must
come from a power supply whose
battery terminals are tied back to those on the main power supply. Failure to do so will cause panel
circuit trouble at the control panel and possible equipment damage.
