42 IFC-3030 Installation Manual — P/N 52024:C 08/05/2005
Installation Connecting Power Sources and Outputs
3.15.2 Connecting the Power Supply
Connect J13 Power on the CPU to TB2 on AMPS-24/E with Cable 75591 (see Figure 3.24). This
cable is 20 feet long, and must run in conduit between the backbox containing the fire alarm control
panel and the backbox containing the AMPS-24/E. See AMPS-24/E manual for full details and
installation precautions.
In order to conserve batteries, connect AC power and check it before connecting batteries. Follow
the procedures specified in the power supply manual.
3.15.3 Checking AC Power
Table 3.3 contains a checklist for checking the system with AC power applied to the main power
supply:
3.15.4 Auxiliary Power Supply Connections
If an optional auxiliary power supply is installed in the cabinet, connect it at this time. Follow the
connection procedures specified in your auxiliary power supply manual.
3030-AMPS-24.wmf
IFC-3030
Cable 75591
Red
Black
Black
Red
AMPS-24
Main Power
Supply

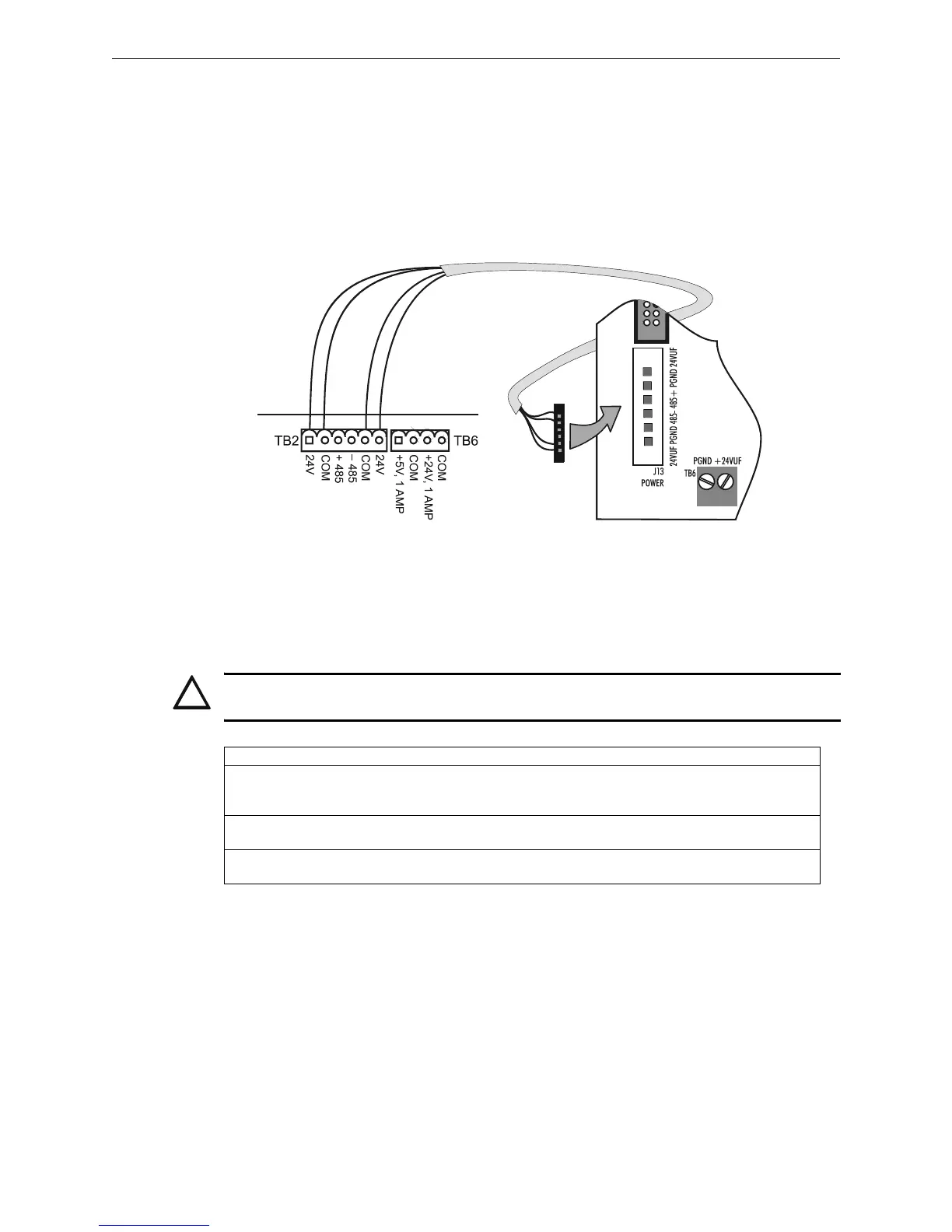

Figure 3.24 DC Power Connections: Main Power Supply
!
CAUTION:
While checking AC power, make sure batteries are not connected.
Component Status
CPU The green Power indicator will come on when power is coming from the main
power supply. The yellow Trouble indicator will come on until batteries are
connected.
Main power supply The green AC indicator will come on when AC is supplied.
The yellow Trouble indicator will come on until batteries are connected.
Each auxiliary power
supply
The yellow Trouble indicator comes on because batteries are not connected.
Table 3.3 AC Power Checklist
