IFC-3030 Installation Manual — P/N 52024:C 08/05/2005 49
Section 4: Applications
4.1 Overview
A listing of chapters and topics covered in this section:
Municipal Box (Auxiliary)
Municipal Box applications require a TM-4 Transmitter module. Refer to the Transmitter Module
TM-4 installation document for installation details.
4.2 Devices Requiring External Power Supervision
With LCM-320 revision 2.0 and
higher, certain type codes have
external power supervision
(FlashScan only) built into the
software. An external
power-supervision relay is
required (see Figure 4.1) unless
one of the following typecodes is
selected for the device:
• Control
• Relay
•Strobe
• Horn
• (Blank)
• Release Ckt
• Rel Ckt Ulc
•Rel Form C
•Nonreset Ctl
• Alarms Pend
• Gen Alarm
• Gen Super
• Gen Trouble
• Gen Pend
• Trouble Pend
•Form C Reset
Chapter Covers the following topics
Section 4.3 “NFPA 72 Central or
Remote Station Fire Alarm System
(Protected Premises Unit)”
How to install a UDACT with the CPU for use as a NFPA Central or
Remote Station Fire Alarm System (Protected Premises Unit)
Section 4.4 “NFPA 72 Proprietary
Fire Alarm Systems”
How to set up a Protected Premises Unit to communicate with a listed
compatible Protected Premises Receiving Unit.
Section 4.5 “Fire/Security
Applications”
How to use the CPU as a combination Fire/Security system, including
the following:
• Installing a Security Tamper Switch into the cabinet
• Circuit Wiring
NOTE: IFC-3030 is not listed for Canadian security application.
Device to be
Supervised
Non-resettable 24
VDC Power from
a listed source
–
+
–
+
SLC from FACP
M300CJ
N.C. Supervision
Relay Contact
Part of EOLR-1 or
A77-716B
(Only required when
type code does not
provide built-in
power supervision.)
Power Supervision Relay
(EOLR-1 or A77-716B)
(Only required when type
code does not provide
built-in power supervision.)

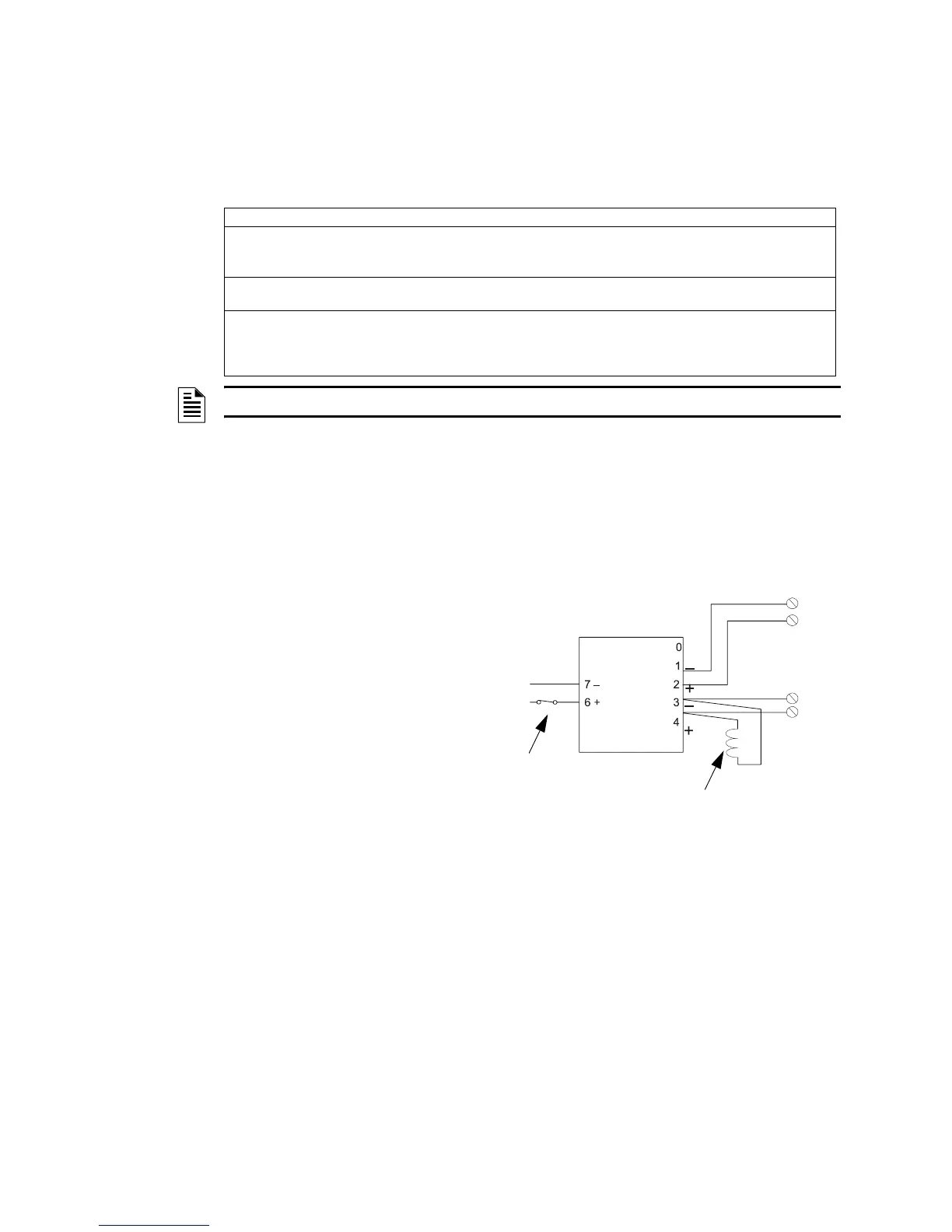

Figure 4.1 Enabling External Power Supervision
Using Relays
3030-external-power-sup.wmf
