Attaching Panel Circuit Modules Installation
NOTE: Depending on system components, clearance may be tight. Do not force modules! Move
the assembly around gently until you find the angle where components and mounting studs pass
each other without scraping together.
voice-mount-mod.cdr
Chassis
Module
Screw
Top
Slot
Bottom
Slots

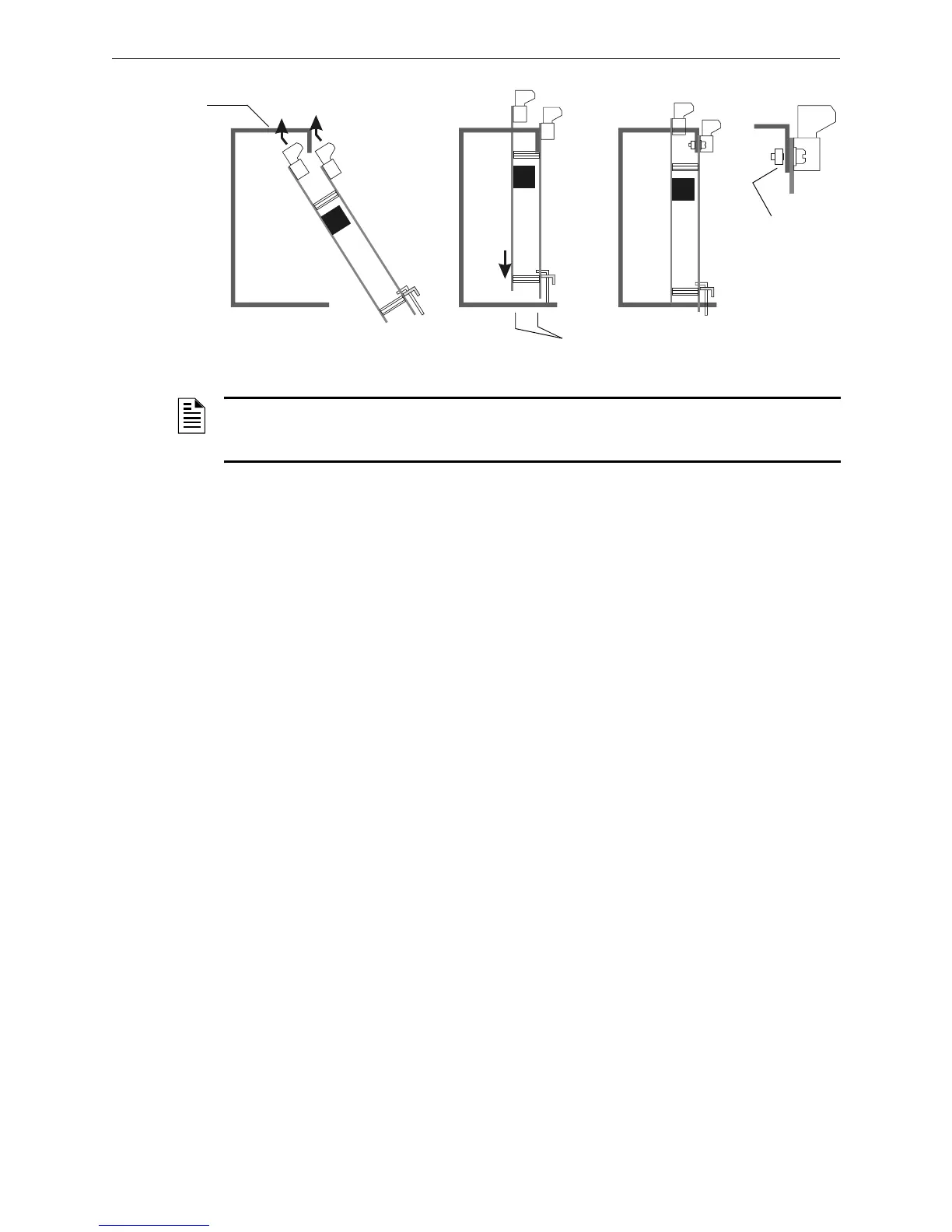

Figure 3.8 Inserting a Two-Layer Module into CHS-4N or CHS-M3 Chassis
