IFC-3030 Programming Manual — P/N 52025:C 08/05/2005 109
Abort Switches Releasing Applications
How to Program a Release Audible Circuit
The following contains information needed to program a Release Audible circuit for an SLC or
Panel Circuit output module
.
NOTE: An output with a REL AUDIBLE Type Code requires the following selections: a Releasing
Zone; an output circuit mapped to the same Releasing Zone; Switch Inhibit.
Description An output module programmed to activate an audio or visual device when all releasing outputs,
programmed to the same Releasing Zone, turn on. Multiple outputs with the
REL AUDIBLE Type
Code can be mapped to the same Releasing Zone. When the Releasing Zone activates, all
outputs with the
REL AUDIBLE Type Code activate at the same time.
Program Select a control module or panel circuit module to use as a releasing circuit. While
programming the point (refer to the Point Programming section of this manual for instructions),
1. Select the
REL AUDIBLE Type Code,
2. Enter the number of the desired Releasing Zone into the module’s zone map. The releasing
zone must be fully programmed (refer to “Releasing Zone” on page 51).
Example
A programming example of a control module programmed as a Release Audible circuit for Releasing
ZoneZR05.

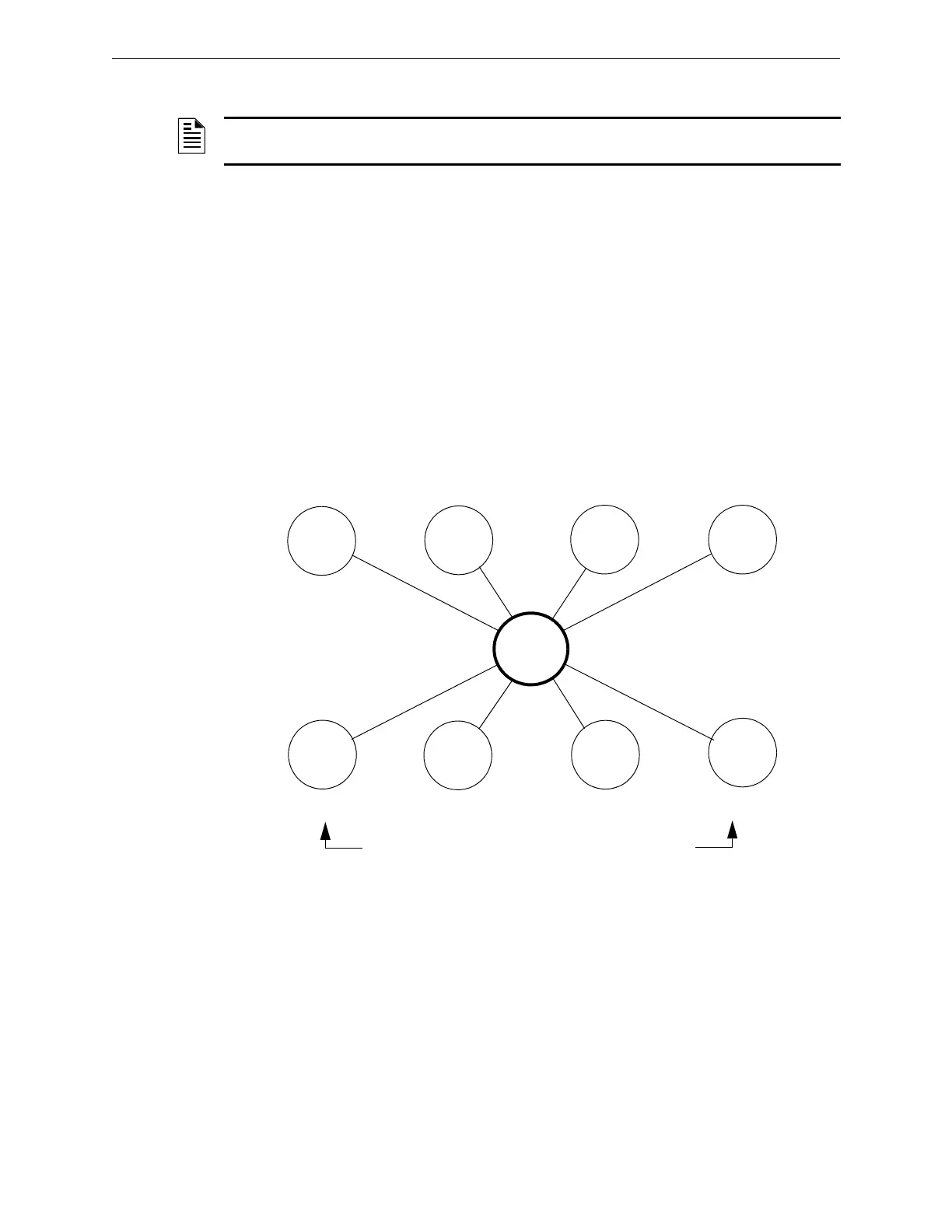

Figure B.17 Output Module Configured as a Release Audible Circuit
Type Code
REL AUDIBLE
Type Code
RELEASE CKT
Type Code
RELEASE CKT
Type Code
REL AUDIBLE
For example, an output module programmed with the REL
AUDIBLE Type Code activates simultaneously with other
outputs (modules A & B) programmed for ZR05.
ZR05
Monitor
Module
Detector
Detector
Detector
Output
module
SLC
output
module
A
SLC
output
module
B
Output
module
To Next Page
