110 IFC-3030 Programming Manual — P/N 52025:C 08/05/2005
Releasing Applications Abort Switches
How to Program an Instant Release Circuit
The following contains information needed to program an Instant Release circuit for an SLC output
module
.
NOTE: An output with an INST RELEASE Type Code requires the following selections: a zone
selection (a releasing zone may be used, but is not required); an output circuit mapped to the
same zone; Switch Inhibit; Non-Silenceable; No Walk Test.
Description An SLC output circuit module programmed to activate non-releasing devices, such as door
openers or warning sounders, without counting down delay timers. A device programmed with
the
INST RELEASE Type Code device is supervised for open circuits and ground faults.
Program Select an SLC output module to use with a releasing circuit. While programming the point (refer
to the Point Programming section of this manual for instructions),
1. Select the
INST RELEASE Type Code,
2. Enter the number of the desired Releasing Zone into the module’s zone map. The releasing
zone must be fully programmed (refer to “Releasing Zone” on page 51).
Example
A programming example of a control module programmed as an Instant Release circuit for Releasing Zone
ZR05.

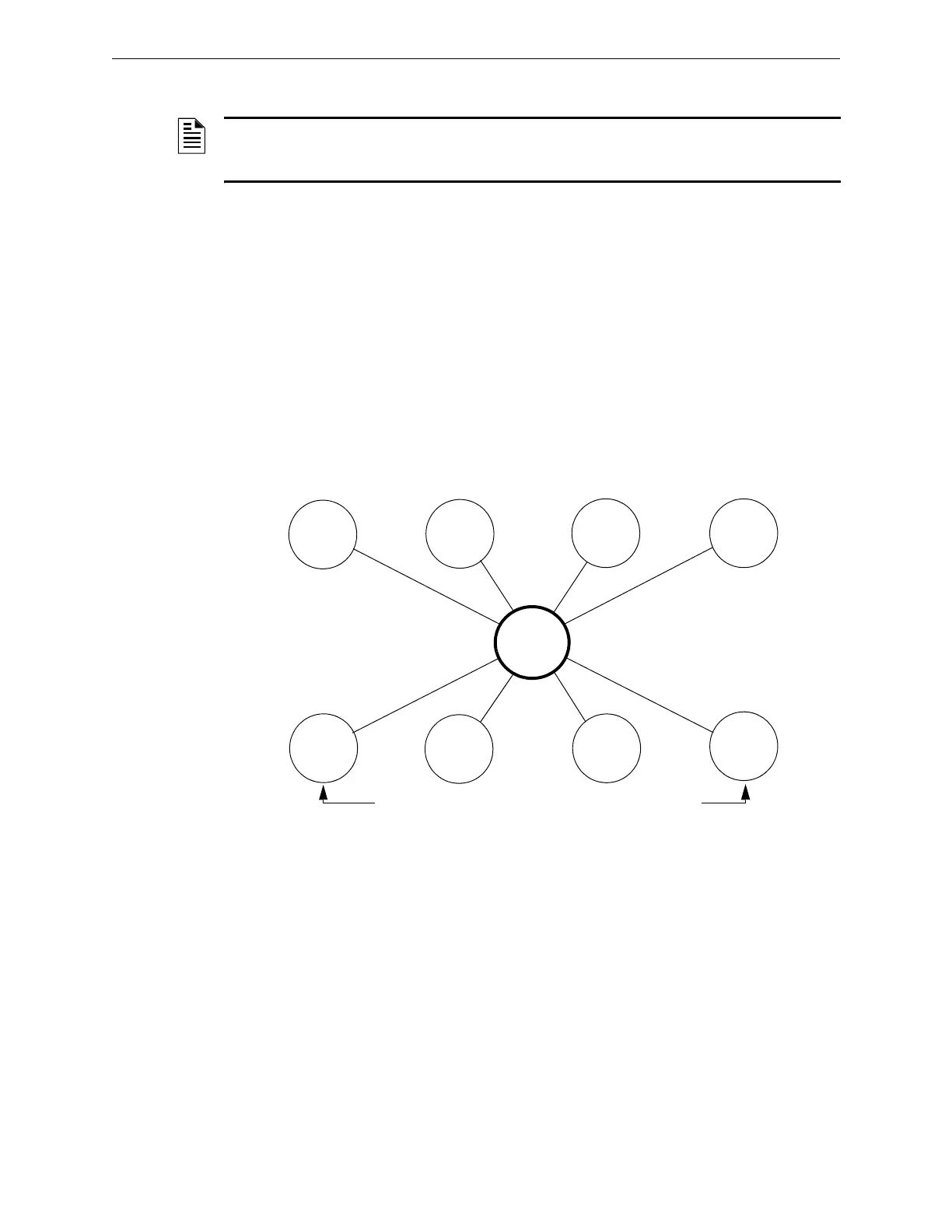

Figure B.18 Output Module Configured as an Instant Release Circuit
Type Code
INST RELEASE
ZR05
Monitor
Module
Detector
Detector
Detector
Type Code
INST RELEASE
For example, a module programmed with the INST RELEASE
Type Code activates simultaneously with other outputs
(modules A & B) programmed for ZR05.
SLC
output
module
A
SLC
output
module
B
SLC
output
module
SLC
output
module
