60 IFC-3030 Programming Manual — P/N 52025:C 08/05/2005
Program Autoprogram Menu

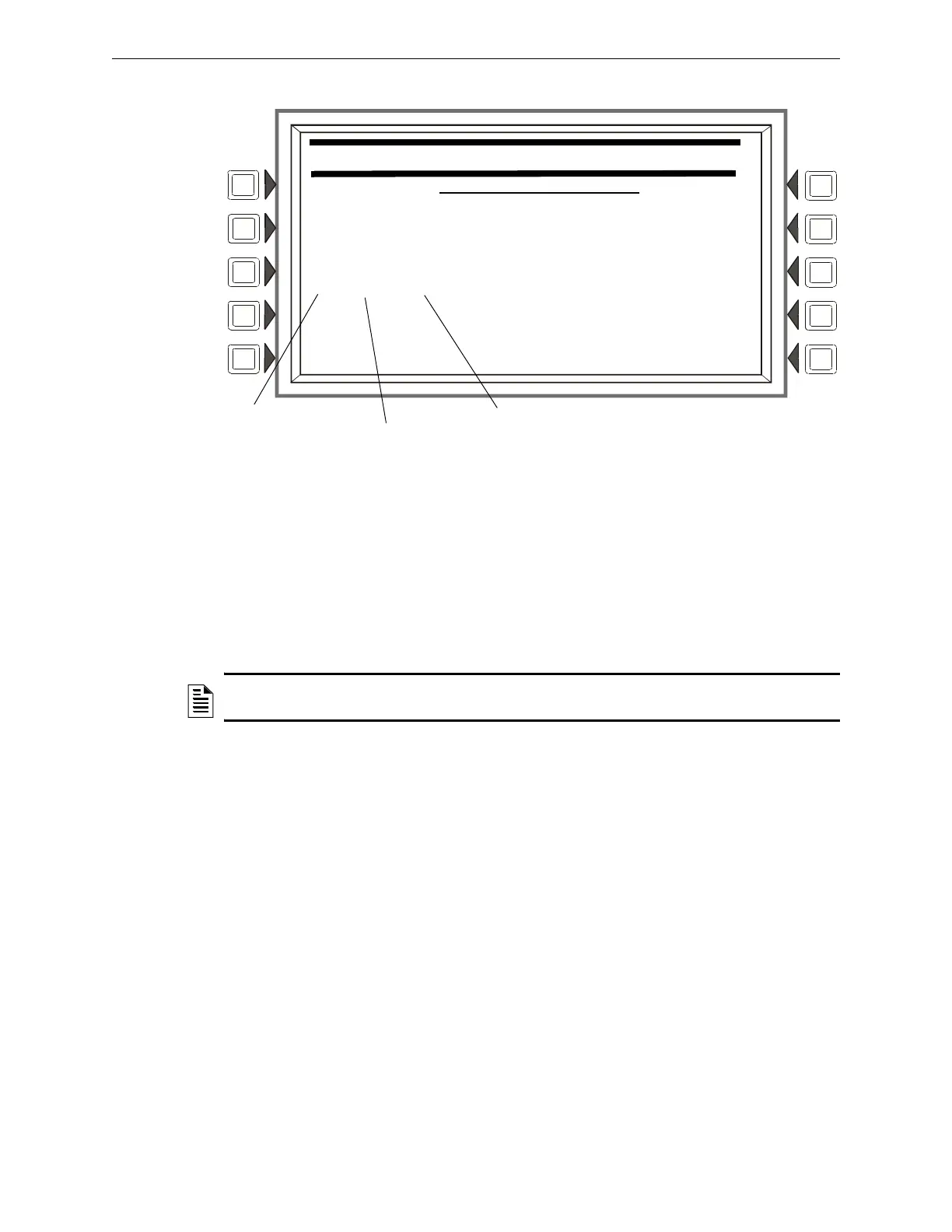

Figure 3.50 Autoprogram Confirmation Screen (Panel Circuits)
Soft Keys
REVIEW: Press this soft key to review the new panel modules found (with the option of adding
them to the program one by one), modules that are in the database that the autoprogram did not
find, and modules that have data base and autoprogram information that differs. Devices will
display in the following order: P01 through P12.
Depending on what information was found, different screens may appear for different points. Refer
to Figure 3.51 through Figure 3.53 for examples of the screens.
NOTE: If panel circuit points have been added, Autoprogram will add them. Pressing the
REVIEW soft key does not give the option to review panel circuit points.
ACCEPT ALL: Press to accept all the new modules and devices that have been found by the
Autoprogram. Discrepancies will still be displayed the same as if the REVIEW soft key had been
pressed: however, new devices will not individually display for review and acceptance.
AUTOPROGRAM CONFIRMATION
PANEL MODULE STATUS
1 INPUT, 8 POINTS 7 OUTPUT, 4 POINTS
2 OUTPUT, 8 POINTS 8 OUTPUT, 4 POINTS
3 OUTPUT, 8 POINTS 9 NO ANSWER
4 OUTPUT, 8 POINTS 10 NO ANSWER
5 OUTPUT, 8 POINTS 11 NO ANSWER
6 OUTPUT, 8 POINTS 12 NO ANSWER
ACCEPT
ALL
REVIEW BACK
Panel Module number
Panel Module type
(input or output)
Number of points found
during autoprogramming
To Next Page
