22 Installation—Installing the FC-2000
To mount the Main Power Supply (MPS-24A or MPS-24B), complete the
following steps and refer to Figure 15.
1. Place the MPS-24A or MPS-24B into the cabinet, ensuring that the
upper bracket engages the support bracket on the cabinet.
2. Secure the bottom of the MPS-24A to the bottom cabinet support with
the two screws provided. The MPS-24B requires only one screw.

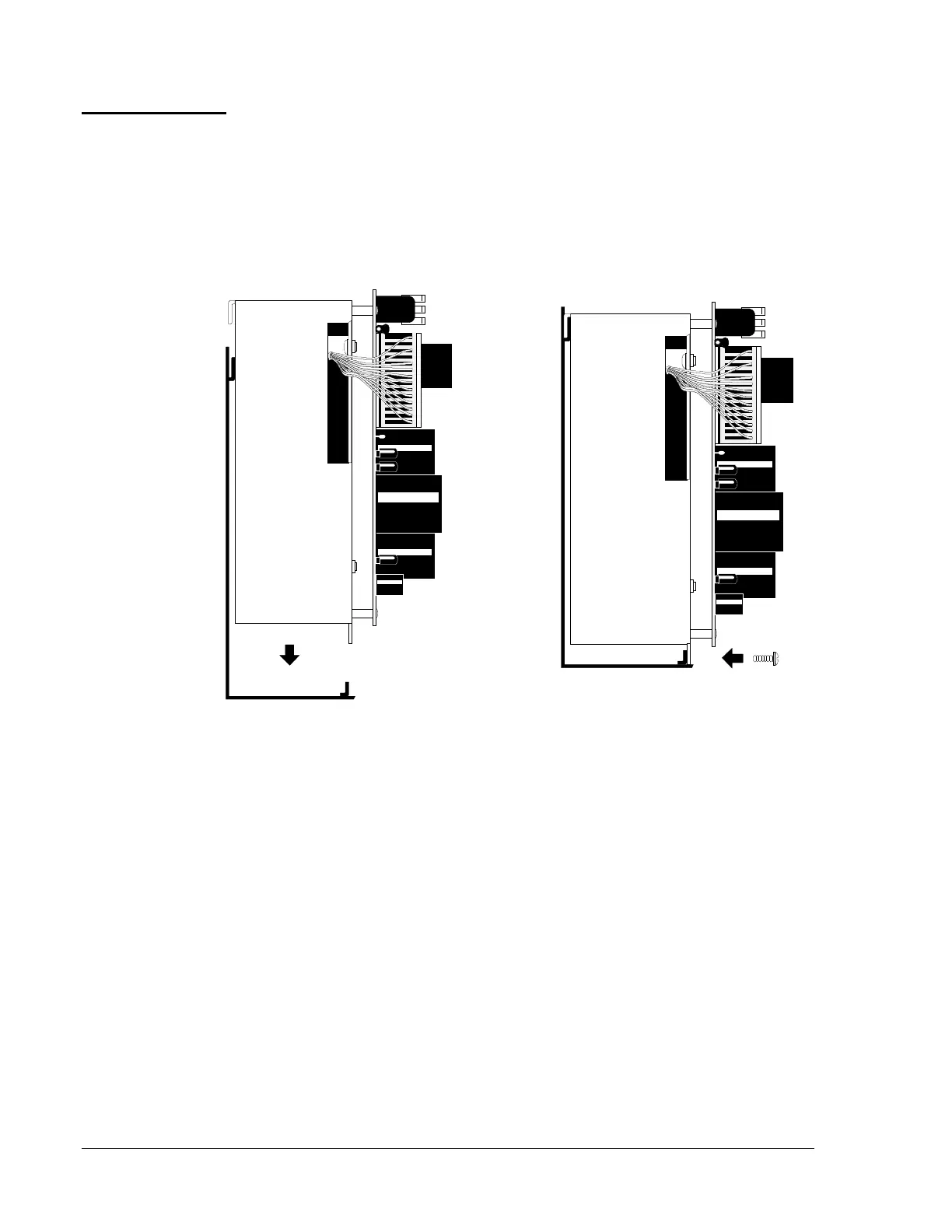

Figure 15: Mounting the Main Power Supply in the CAB-x3
Mounting the
Main Power
Supply in the
Cabinet
Step 1
Place the MPS-24A into the bottom of the cabinet,
ensuring that the upper bracket engages the
support bracket on the CAB-x3 cabinet.
Step 2
Secure the bottom on the power supply to the
bottom cabinet support with the two screws
provided.
mpsmount
CAB-x3
CAB-x3
