Installation—Installing the FC-2000 55
The NIB-96 is suitable for Central Station, and Proprietary Protective
Signaling service when installed according to Figure 39 and the NIB-96
Network Interface Board Technical Bulletin in the Fire Management
Accessories Manual (FAN 445).

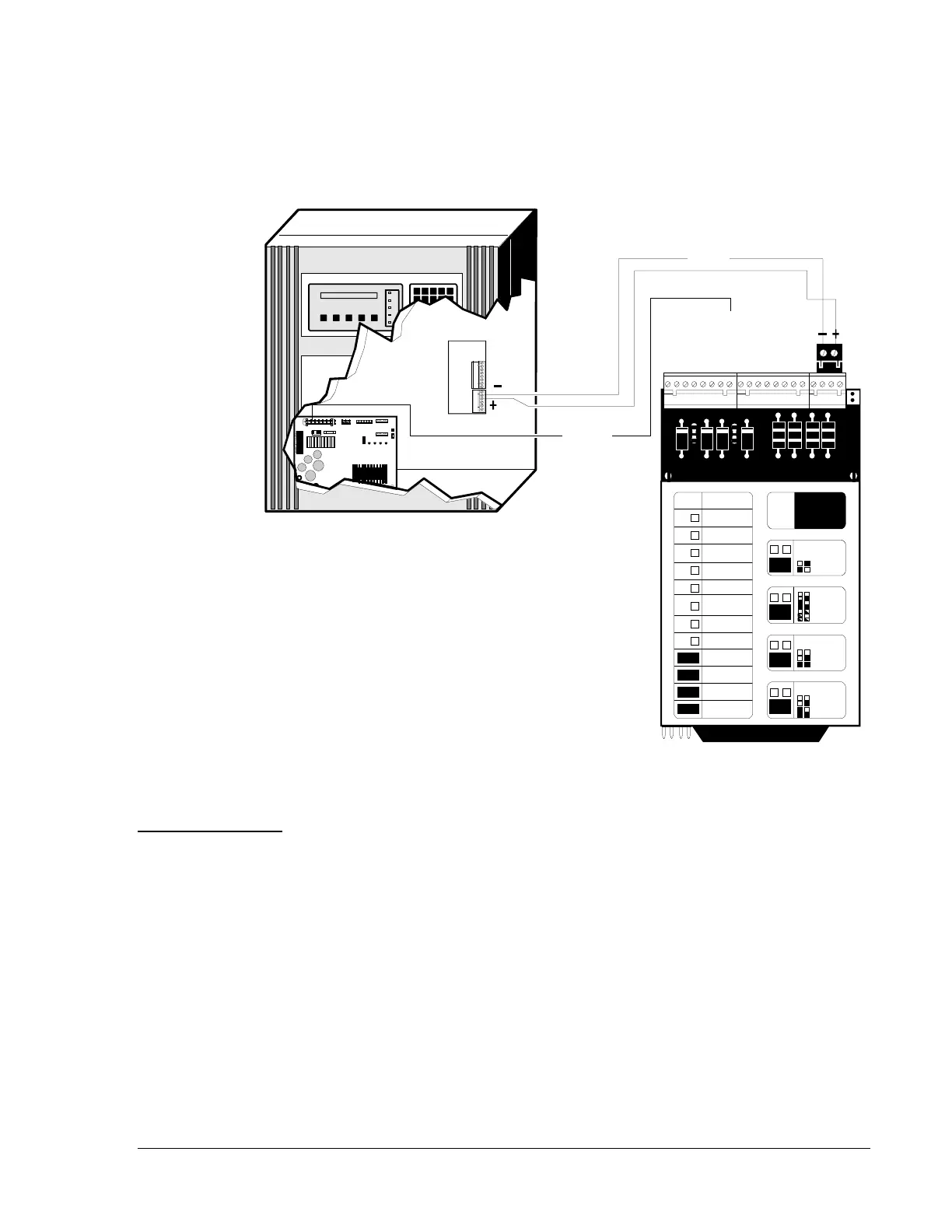

Figure 39: NFPA 72 Proprietary Protective Signaling System
Digital communicators can be used with the control panel to form Central
Station Signaling Systems provided the following conditions are satisfied:
1. The DACT is the 911A Digital Communicator.
2. The Receiving Unit is an Ademco No. 685.
3. The 911A is installed in accordance with the 911A Installation
Manual, packaged with the 911A.
4. The communicator cabinet is installed in the control panel cabinet
with all interconnecting wiring installed according to the 911A
manual.
5. The controller, communicator, and receiver have a secondary power
source that can supply 24 hours of operating power.
INTELLIGENT F IRE DETECTION AND ARLARM SYSTEMS
MPS-24A
NIB-96
IFC-1010/2020
nib96cpu
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
17 18 19 20
MODULE
TYPE
LAMPS
SWITCH
DISABLE
ENABLE
SIGNAL
SILENCE
POW ER
FAILURE
ANNUCIATOR OR
MODULE TROUBLE
SYSTEM
TROUBLE
SUPERVISORY
SIGNAL
SYSTEM
ALARM
AC
POW ER
CONTROL
PANEL
FIRE
ALARM
SYST EM
RESET
SIGNAL
SILENCE
ACKNOWLEGE
SILEN CE TO NE
POW ER
FAILURE
Option Select I
Rem ove this card
after programming
Code Options
March Time
Code 3
Annun ciators
None
1-64 Pts
65-128 Pts
Dual 1-64 Pts
Qu ad 1-64 Pts
Dual 1-28 Pts
AIM (256)P ts
Annunciator Mode
Normal
Ou tput Sts.
Ou tput Cntrl.
Silence Inhibit
None
30 seconds
50 seconds
5 minutes
To
System Common
On Power Supply
CPU
TB3-3
RS-485
System
Common
Digital
Communicators
To Next Page
