16 Installation—Installing the FC-2000
You may mount the hinges for the CAB-x3 doors on either the left or
right-hand sides of the cabinet. The following illustrations and text depict
a left-hand mounted example. For a right-hand mounting, simply
substitute right for left in the instructions.
cabx3aa0
Left-hand mounted door
Right-hand mounted door

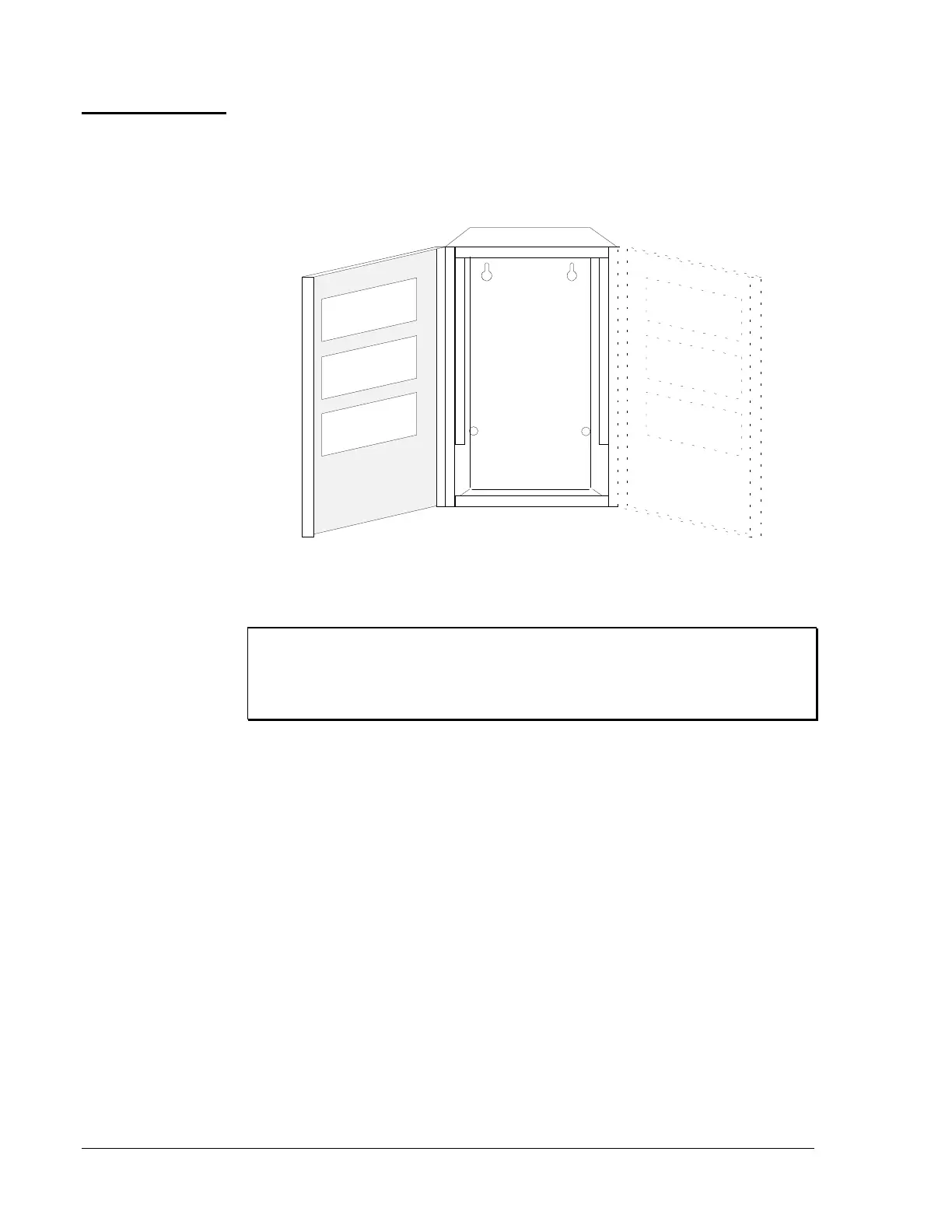

Figure 7: Mounting the CAB-x3 Cabinet Door
IMPORTANT: Assemble the two hinges and two alignment tabs to the
backbox before you install any equipment. Installing
the chassis severely limits space in the areas where the
hinges and alignment tabs are installed.
CAB-x3 Door
Assembly
To Next Page
