28 Installation—Installing the FC-2000
1. Insert the CPU-2000 module into the left-most chassis slot, angling
the front end of the module into position as shown in Figure 20.
2. Push the back end of the module down into the cabinet and pull down
until the upper board engages the slot on the chassis.
3. Align the module screws with the thread-holes on the chassis and
secure in place.
Step 1
step3cpu
Step 2
Step 3
CPU CHS-4 Chassis

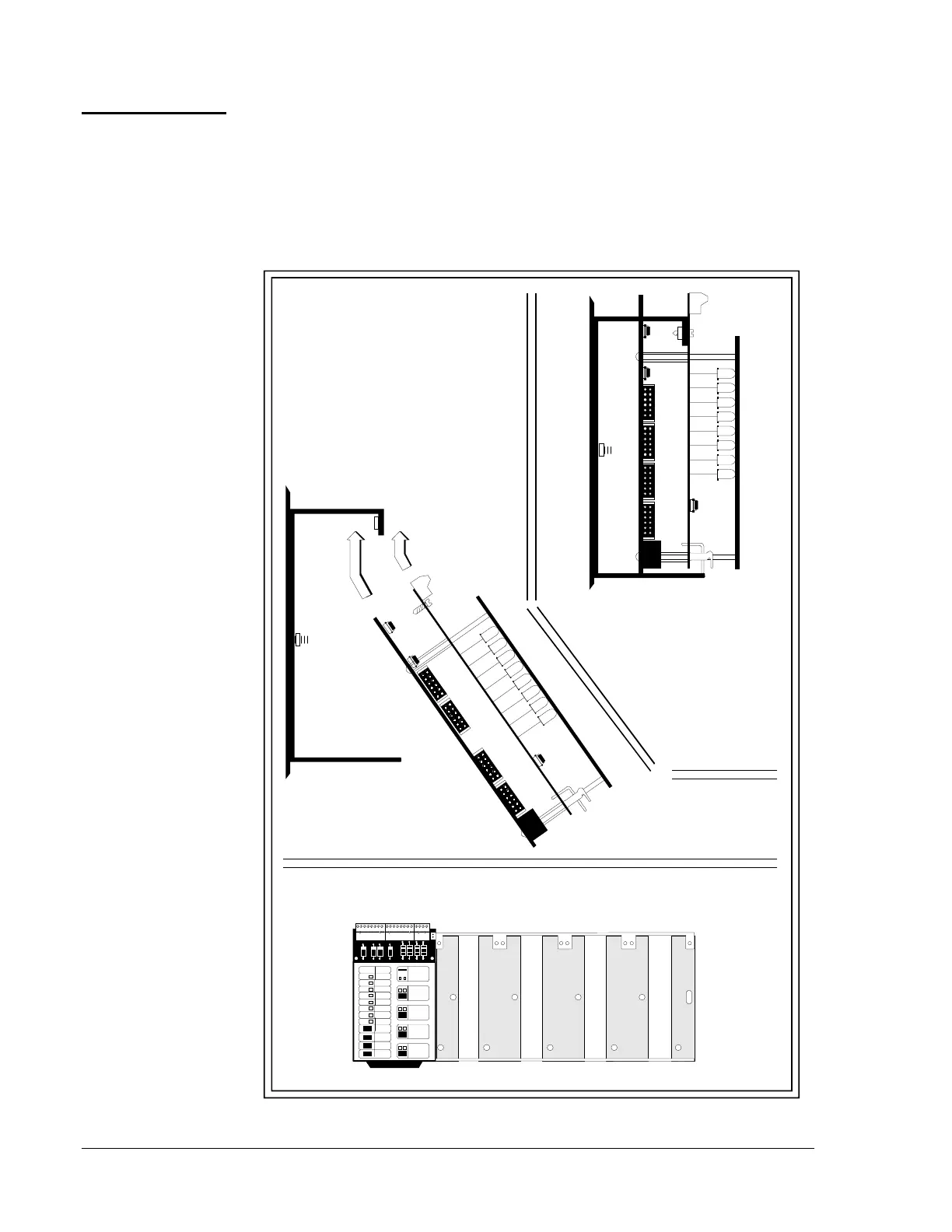

Figure 20: Mounting the CPU-2000
Mounting the
CPU-2000
