Installation—Installing the FC-2000 9
Installation
Modules in the system communicate with the CPU through a common
ribbon cable connection.
aim200up

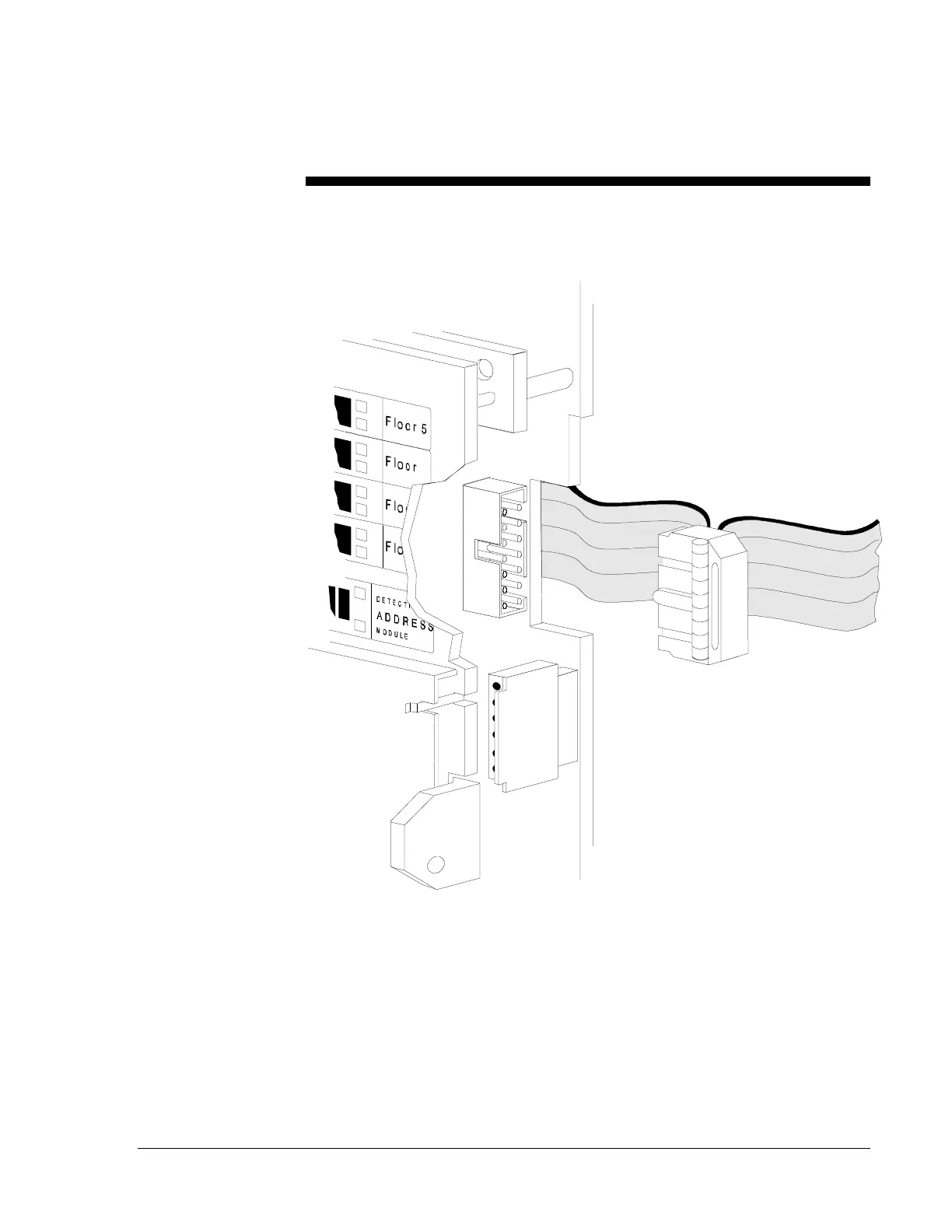

Figure 2: Module Connection Example
