32 Installation—Installing the FC-2000

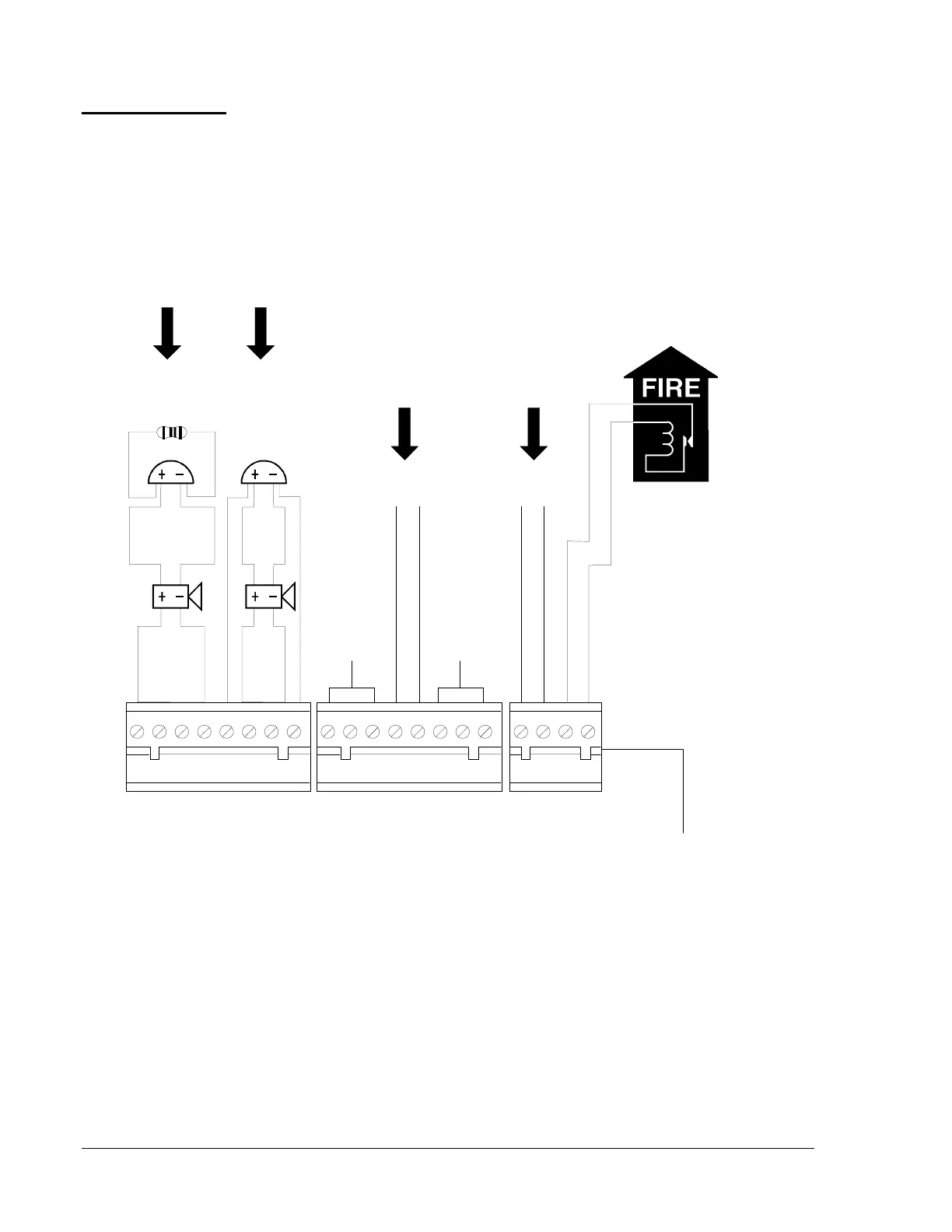

Figure 23: Field Wiring the CPU-2000
Notes:
1. Indicating appliance circuits, remote station trouble output, and the
remote station alarm output are power limited and may be connected
to limited-energy cable.
2. Wire indicating appliances according to their instructions.
3. Terminal blocks will accept 12 to 22 AWG wire.
4. Size indicating appliance circuit wire for a maximum drop of 2.0 volts
DC.
5. See the Device Compatibility document in the Fire Management
Accessories Manual (FAN 445) for compatible indicating appliances.
Field Wiring the
CPU-2000
UL Listed
24 VDC
Polarized Bell
UL Listed
24 VDC
Polarized
Horn
fieldwir
1 2 3 4 5 6 7 8
B+ A+ A- B- B+ A+ A- B-
9 10 11 12 13 14 15 16
C NC NO - + C NO NC
17 18 19 20
+ - + -
Style Y
4.7K, 1/2 watt ELR.
Part No. 71252.
Style Z
System
Trouble
Contacts
2A @ 30 VDC
1A @ 120 VAC
(resistive)
General
Alarm
Contacts
5A @ 30 VDC
5A @ 120 VAC
(resistive)
Remote Station
Trouble Output
Remote Station
Alarm Output
Municipal box
wiring must be
run in conduit.
Municipal Box Output
Power limited and supervised
for open circuits. Max. current
(short circuit) = 0.6 amps. Max.
voltage (open circut) = 27.6 VDC.
Max. wire resistance = 5 ohms.
Typical Supervised, Power-Limited
Indicating Appliance Circuits
Use only UL Listed indicating appliances.
Wire devices according to the manufacturer's
instructions. Maximum current per channel
is 3.0 amps.
Non-Supervised
Remote Station Outputs
(Standby polarity shown.)
24 volts DC (nominal). Power-limited, 10 mA
maximum rated current. Internal
resistance=1360 ohms (nominal).
Intended for connection to the polarity reversal
circuit of a remote station receiving unit having
compatible ratings.
Municipal Box Ratings
1) Trip Current = 0.25 amps (min)
2) Coil Voltage = 3.65 VDC (min)
3) Coil Resistance = 14.6 ohms (max)
4.7 K, 1/2 watt ELR must be
placed across this circuit if
there is no transmitter
connected.
To Next Page
