Johnson Controls MPS-24A Installing Instruction

44 Installation—Installing the FC-2000

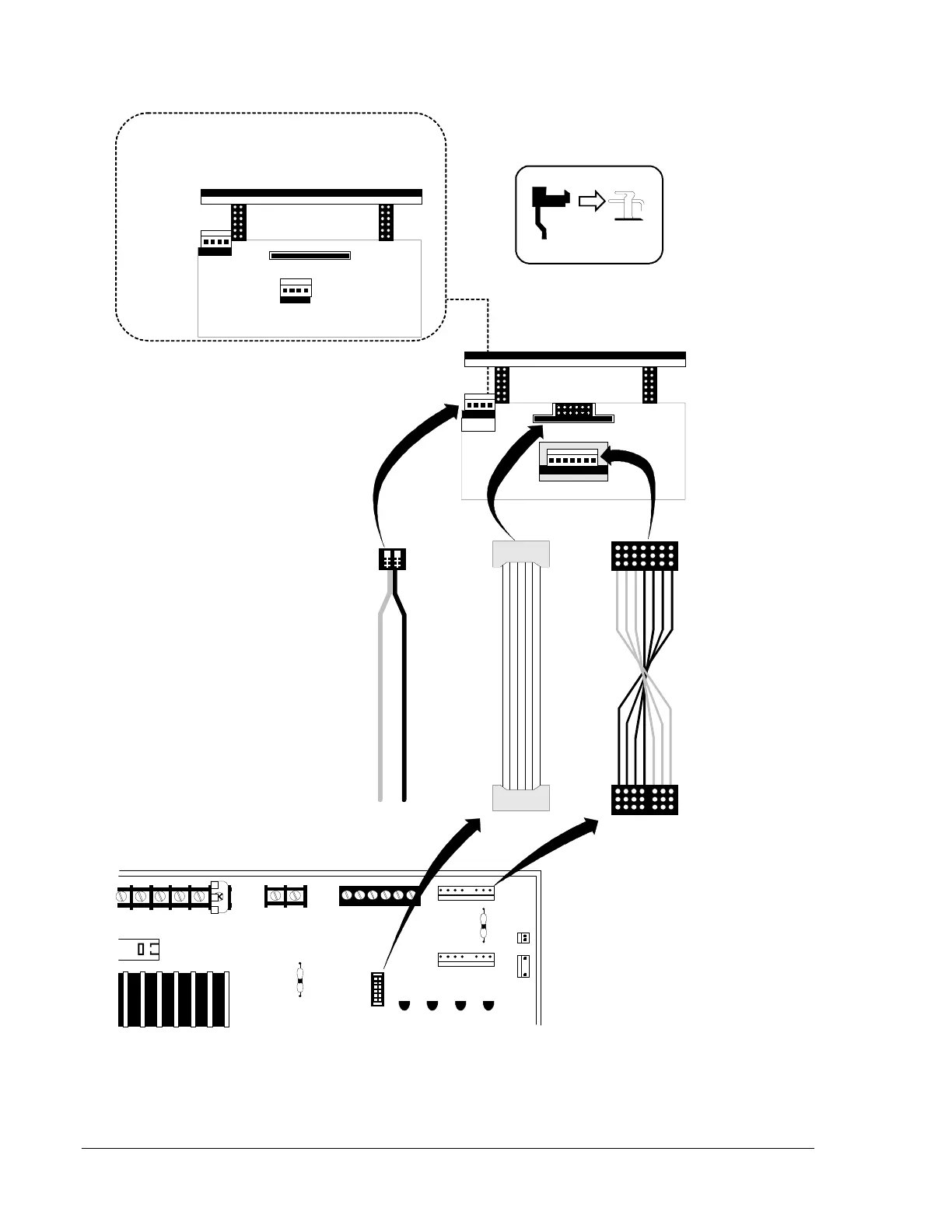

Figure 32: Harness Connections for the MPS-24A
mps24awr
J5 J6
MPS-24A
P3
P2
P4
P5
P6
R27
JP5
3 4 5 6 7 8
1 2
1 2 3 4 5 6
TB3TB2
Power Ribbon
(71085)
Power Harness
(71086)
Connect to P2 or P4.
CPU
(bottom view)
ICM-4
or
ICE-4
(bottom view)
Connector Orientation
J5 J6
(ICM-4)
J5 J6
(ICE-4)
If powering an indicating appliance circuit module
from the MPS-24A, connect an auxiliary bell power
harness (71091) from J6 on the CPU to J5 on the
ICM-4 or ICE-4. See the
Applications
section for more
information.
Note position of red
wire at 8-position end.
7-position End
Blue Wire
