SECTION 3 - YKEP CONTROL PANEL OPERATION
Kilowatt Hours
Displays the cumulative kilowatt hours, as calculated
from the input power transmitted from the starter.
Voltage - Phase A, B, C
Displays the 3-phase input line voltage as measured by
and transmitted from the starter.
Current - Phase A, B, C
Displays the 3-phase motor current as measured by and
transmitted from the starter.
Runtime Until Next Lube
Displays how many hours remain until the next sched-
uled motor lube is to be performed.
Comm Rec Errs
Displays the number of recieve errrors from the SSS
communications link, for troubleshooting.
Comm Check Errs
Displays the number of cross checking errors from the
SSS communications link, for troubleshooting purposes.
OVERVIEW
This screen displays all information pertaining to a
Medium Voltage Solid-State Starter if equipped.
DISPLAY ONLY
Primary Motor Run (LED)
Illuminates when the primary motor is commanded to
run.
% Full Load Amps
Displays the motor current as a percentage of Job Full
Load Amps setpoint.
Current Limit Setpoint
Displays the current limit in use, this value can be a
locally or remote programmed value.
Pulldown Time Left
Displays the time remaining in the programmed
pulldown period when the value is non-zero.
Input Power
Displays the input power for the primary motor.

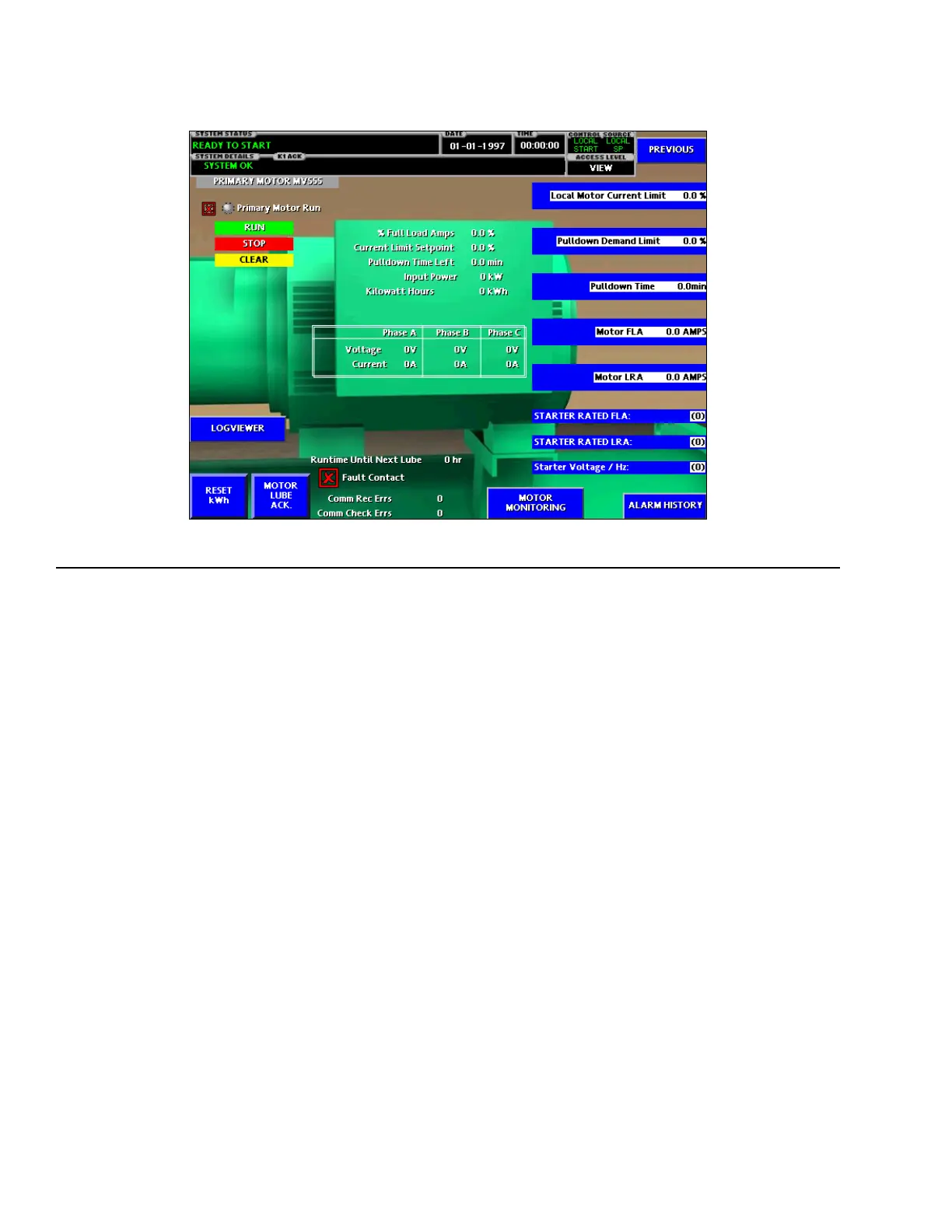

PRIMARY MOTOR SCREEN (MV SSS)
LD15551
FIGURE 31 - PRIMARY MOTOR SCREEN (MV SSS)
