FORM 160.77-O2
ISSUE DATE: 11/15/2011
SECTION 3 - YKEP CONTROL PANEL OPERATION
JOHNSON CONTROLS
89
3
None
NAVIGATION
Previous
Returns the display to the previous screen.
Home
Causes an instant navigation to the Home Screen.
screen.
OVERVIEW
This screen allows the user to browse through the ac-
tive system alarms.
DISPLAY ONLY
Active Alarms
Displays the date, time and active system fault.
PROGRAMMABLE

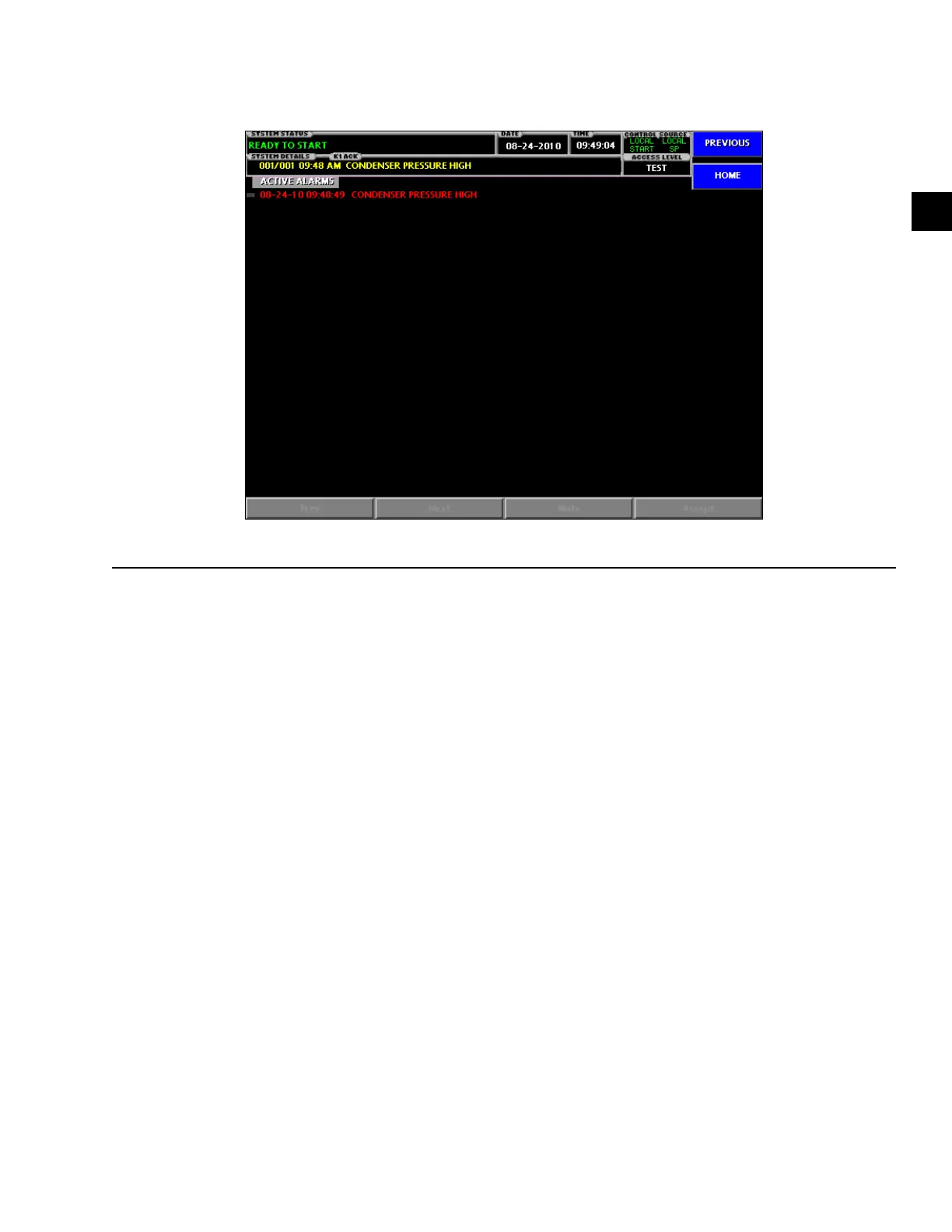

ACTIVE ALARMS SCREEN
LD15408
FIGURE 47 - ACTIVE ALARMS SCREEN
