Steering lubrication
Proper lubrication will ensure steering box work well and longer time. Please lubricate
the steering box refer to Preventative maintenance and service log.
To lubricate the steering box

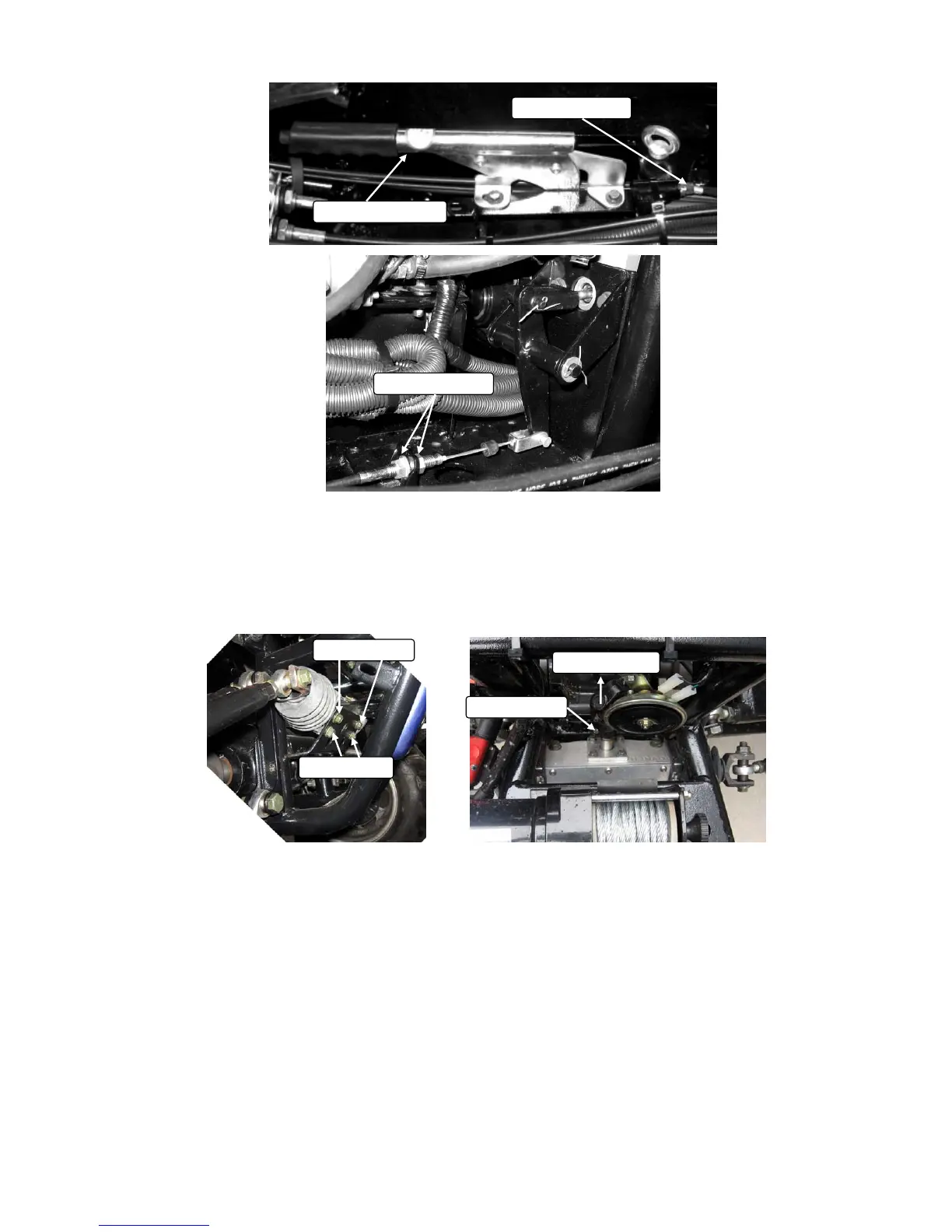

1. Take the steering box off from TR1100 firstly, unbolt these nuts and bolts showed in
the following picture, pull off the steering joint, and take off the steering box slowly.
2. Inject lithium base grease about 20g through grease cup with a grease gun.
3. Clean the steering box, and install it with reverse step 1.
Adjustment nut
Adjustment nut
Parking brake lever
Unbolt the nut
Unbolt the bolt
Unbolt the bolt
Pull off the joint
