6. Fix parts according to reverse operation to the disassembly.

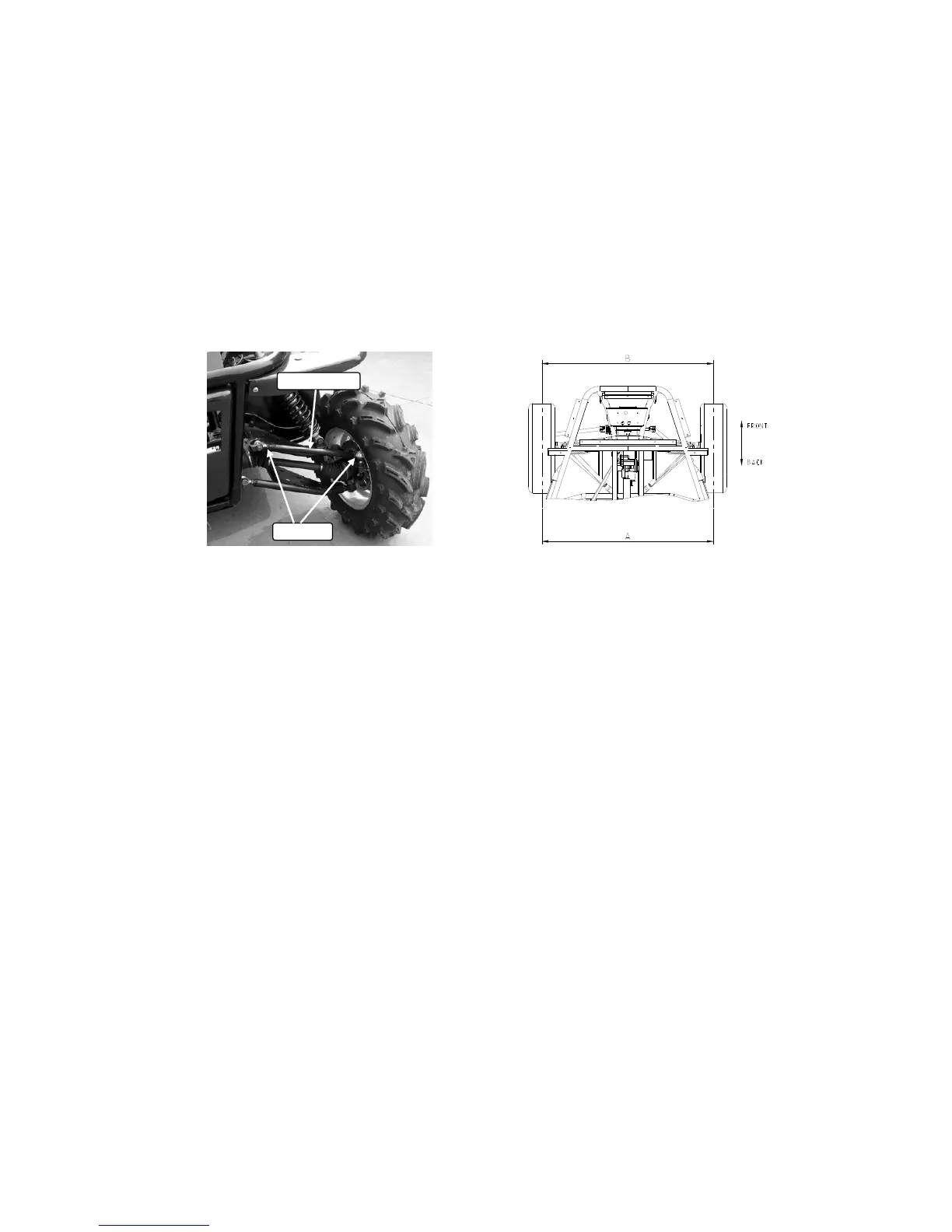

Front Wheel Alignment
Correct front wheel alignment can ensure the vehicle run in a good track. After a long
time use, doing some alignment work is needed.
a. Put the vehicle on level ground.
b. The “toe-in” of the front wheels should be 0.98 inch. It means the dimension A should
be 0.98 inch more than dimension B.
c. Turn the steering wheel to align the center of the steering-rack with the center of the
frame.
d. Loose the lock nuts on both ends of Front Tie Rods. Turn the 2 tie-rods forwards to
increase A and decrease B, backwards to decrease A and increase B. repeat it until
the dimension A and B meet the requirement described as item a. and then tighten
all the lock nuts on the both end of tie-rod.
Fuse and relay
To check or replace fuses:
1. Take off the cover of the fuse box. Press the hook down and pull off the cover.
2. Check and replace the fuse according the fuses and relays diagram.
Lock nut
Front tie rod
