Oil pump

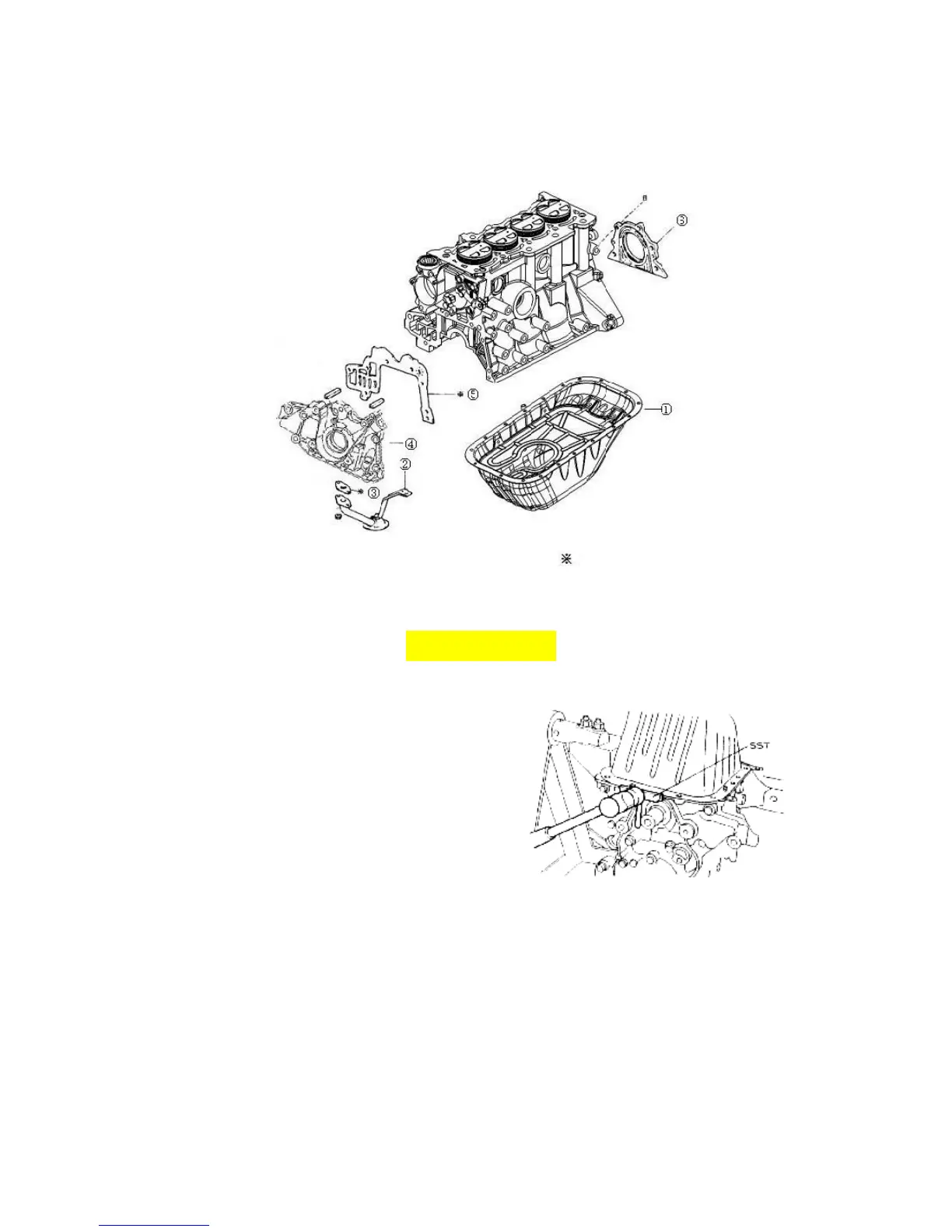

1. Configuration diagram (The dismounting and installation of the lubricating oil pump
should be carried out according to the following procedures).
○
1 Oil pan，tighten bolt：8±2 Nm/5.9±1.47Lb_Ft ② Oil strainer③ Oil collector
gasket④ Oil pump⑤ Oil pump gasket⑥ Rear oil seal bracket
2. Dismounting
2.1. The engine being turned upside down on
the dismounting frame, take off the bolts.
Remove the oil pan from the cylinder
body.
Attention: Do not make the oil pan flange
section to be deformed.
Non-reusable part
