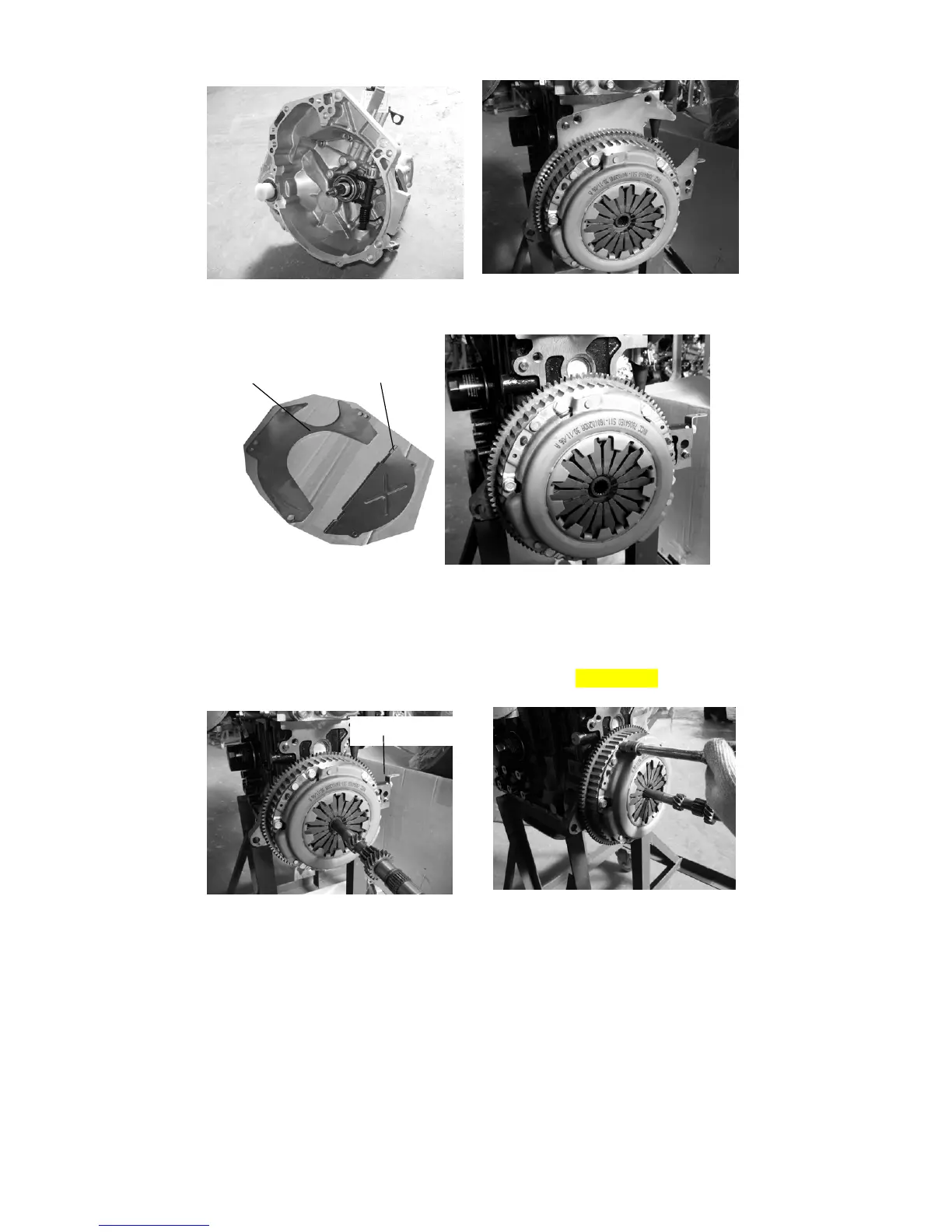

3. Remove upper steel cushions and lower steel cushion.
4. Insert a spine-shaft into the hole of the Clutch assy , remove the six bolts on the Clutch
pressure plate, now It’s clear. Caution: When fix the six bolts in the Clutch pressure
plate;
You must tighten them according to the prescribed torque 20.5 Ft_Lb
S11-170010372-100203
Spline-shaft
