4. Disintegration and assembling of oil pump

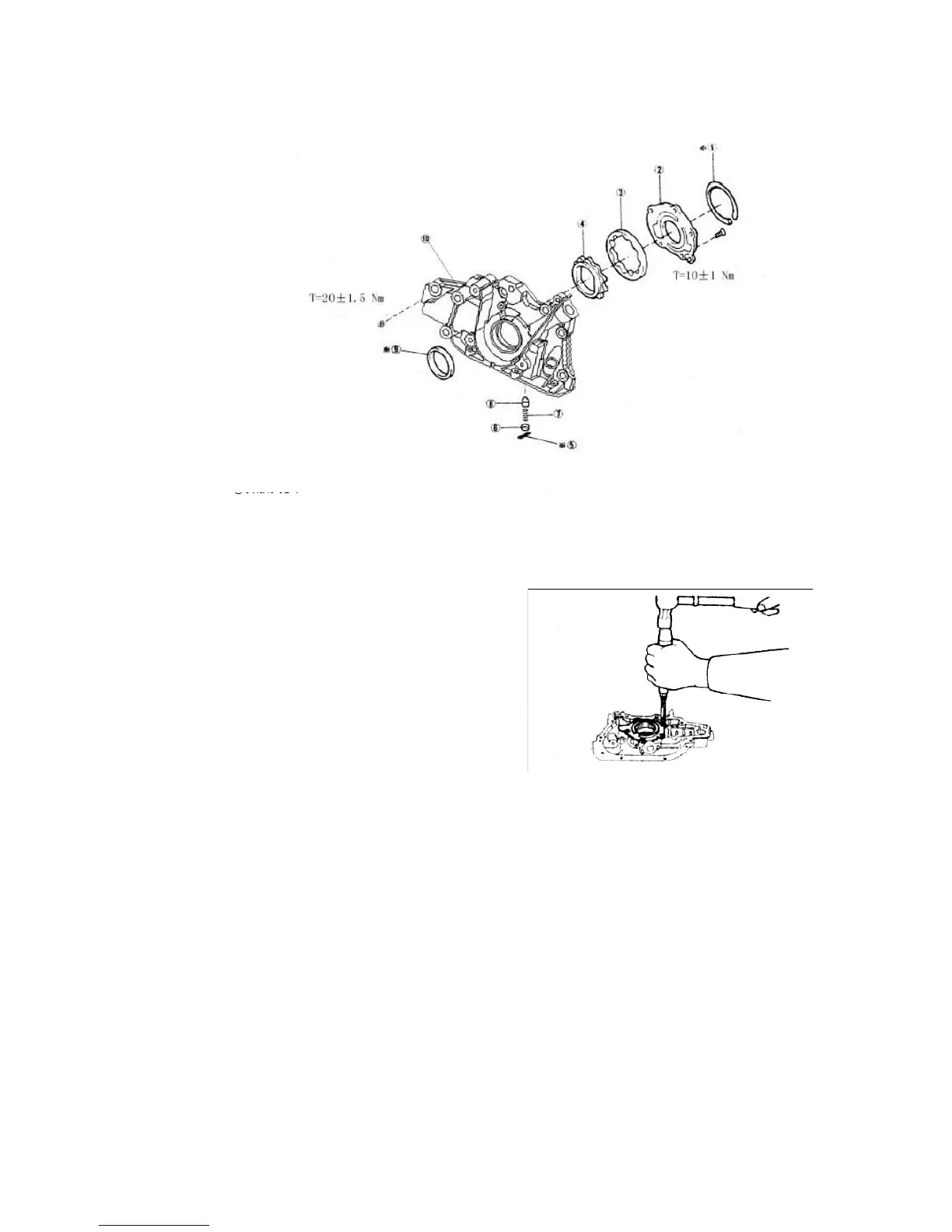

4.1. Configuration diagram
1 Weather seal 2 Oil pump cover plate3 Driven rotor4 Drive rotor5 Split pin6 Relief valve
spring seat7 Relief valve spring8 Relief valve9 Crankshaft front oil sealing10 Oil pump
body
4.2. Disintegration
4.2.1. Weather seal
Attention The weather seal are not
reusable.
4.2.2. Remove the oil pump cover
Attention: The bolt is assembled with glue;
loosen it with screw driver according to the
illustrations
4.2.3. Remove the driven and drive rotor
of the oil pump
※:Non-reusable part
