2. Disintegration of crankshaft connecting
rod mechanism

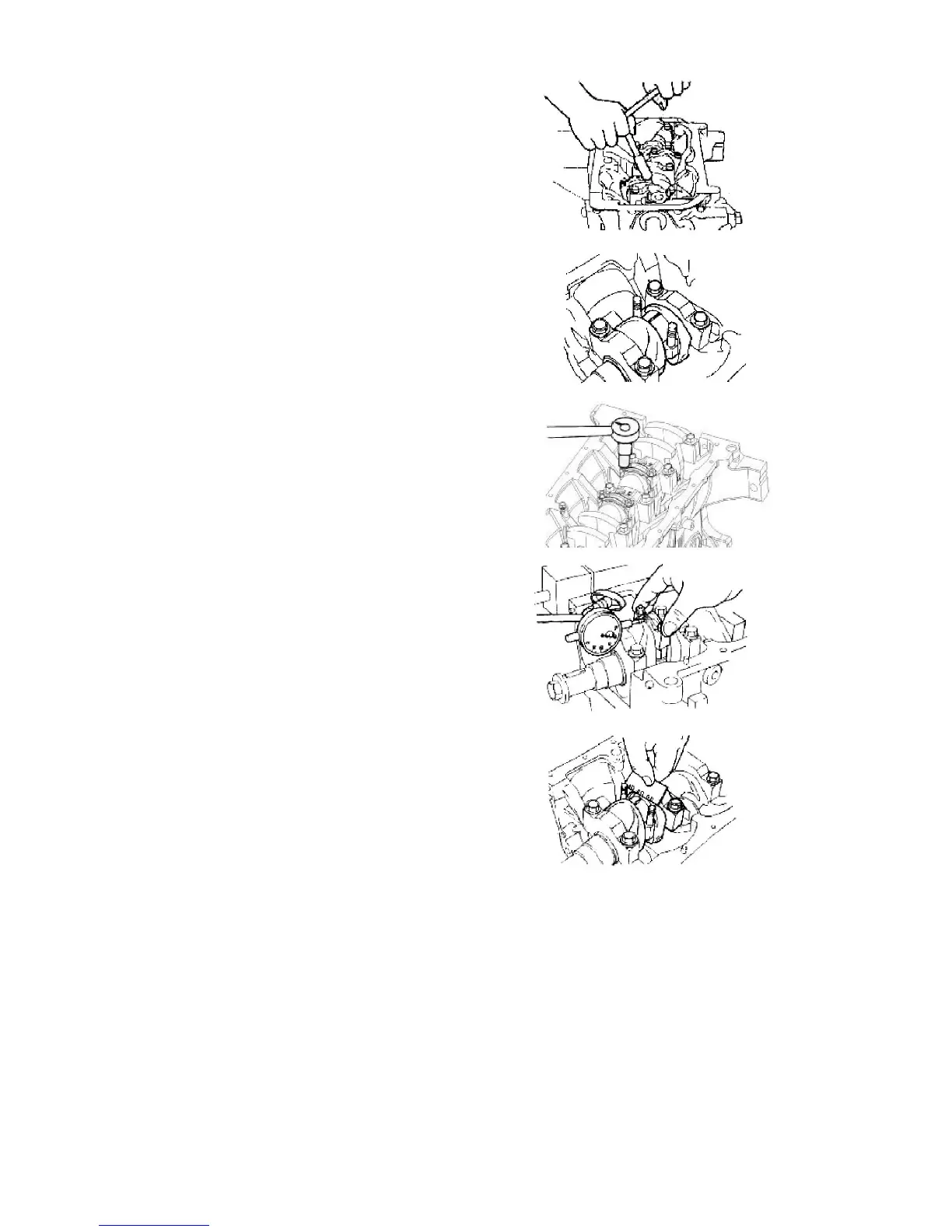

2.1. Check the connecting rod axial clearance
2.1.1. Use centimeter or feeler to measure axial
spacing
[Benchmark]:0.15-0.24mm/0.0059-0.0094inch
[Limit]:0.30mm/0.0118inch
2.2. Check the connecting rod bush vertical
clearance
2.2.1. Remove the bush cover
Attention: Parts and components of various
cylinders should be placed in good order.
2.2.2. Clean the bush and axle diameter
2.2.3. Place clearance gauge on the
connecting
bearing diameter.
Tighten bush cover according to regulated
torque
torque: 40±2N*m/28±1.5Ft_Lb
Attention Do not turn the crankshaft
2.2.4. Remove the bush cover, measure the
maximum width of the spacing ruler
[Benchmark]: 0.020-0.044
mm/0.0008-0.0017inch
[Limit]: 0.07 mm/0.0027inch
