43
XP7202 Instruction Manual
The XP7202 features synthesized channel selection,
allowing the selection of channels 15 through 60 via the
SYNTHSIZED CH
screen.

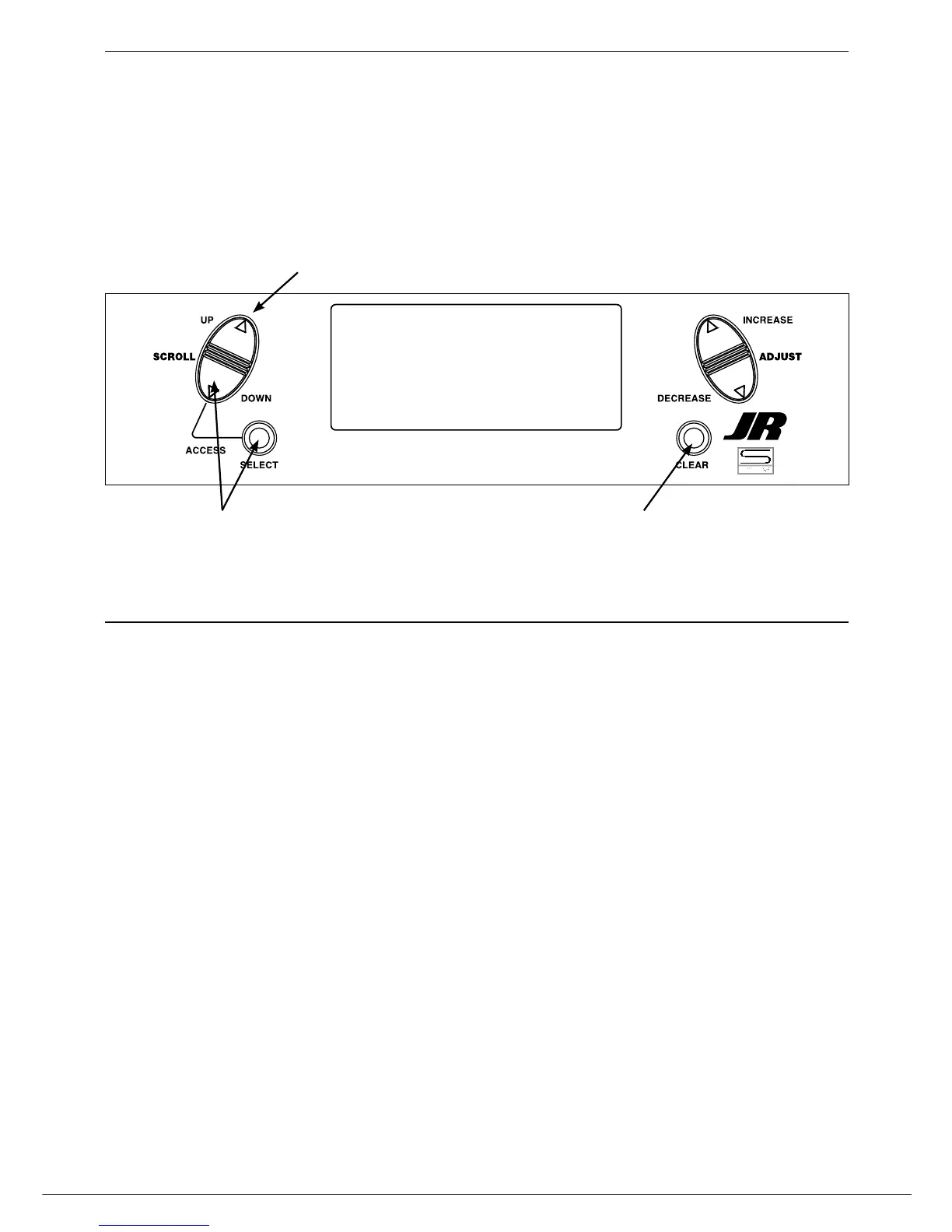

Press and hold the Down and Select key
simultaneously while turning on the transmitter to enter
system set up mode.
Press the UP or Down key until SYNTHESIZED CH
appears on screen.
Press the IncreaSe or DecreaSe key to select the
desired channel.
To return to the warning/ main screen, press the Down
and Select keys simultaneously.
Synthesized Channel Select
To Select a Transmitter Channel
NOTE
: To transmit on the selected channel displayed
in the warning screen, press the clear key. The
screen will change to the main screen and the
transmitter will emit a signal on the selected channel.
NOTE
: When turning on the transmitter, the
warning screen is displayed with the previously
selected channel. No signal is being transmitted.
To accept this displayed channel, press the
clear key. A signal will then be transmitted on
the selected channel.
[SYNTHESIZED CH]
FREQ. 72.09MHz
CH 15
Press to enter main screen
Press to enter SYNTHESIZED CH
Press to accept channel
and begin transmitting
