JR XP7202 - Elevator-To-Flap Mixing; To Access the Elevator-To-Flap Mixing

50
XP7202 Instruction Manual
The upper-most position of the flap mixing switch or the
Mix Switch can be used to activate the Elevator-to-Flap
Mixing function. When this system is active and a value
of flaps is input, the flaps will be deflected each time
the elevator stick is used. The actual flap movement is
independently adjustable for both up and down elevator.
A commonly used application is up elevator/down flaps
and down elevator/up flaps. When used in this manner, the
aircraft pitches much more quickly than normal. When you
want to reverse the mixing directions, press the - key and
change the mixing value from + to - (or - to +).
Elevator-to-Flap Mixing
To Access the Elevator-to-Flap Mixing
In the Function Mode, use the UP or Down key to
select the Elevator to Flap Mixing function and access by
pressing the UP and DN keys simultaneously.
NOTE
: The flap mixing switch, or the Mix switch,
depending on which is selected, must be in the upper
position to adjust values.
[ELEV->FLAP MIX]
◊RATE:≥D 0%
ON
U 0%
SW:FLAP0

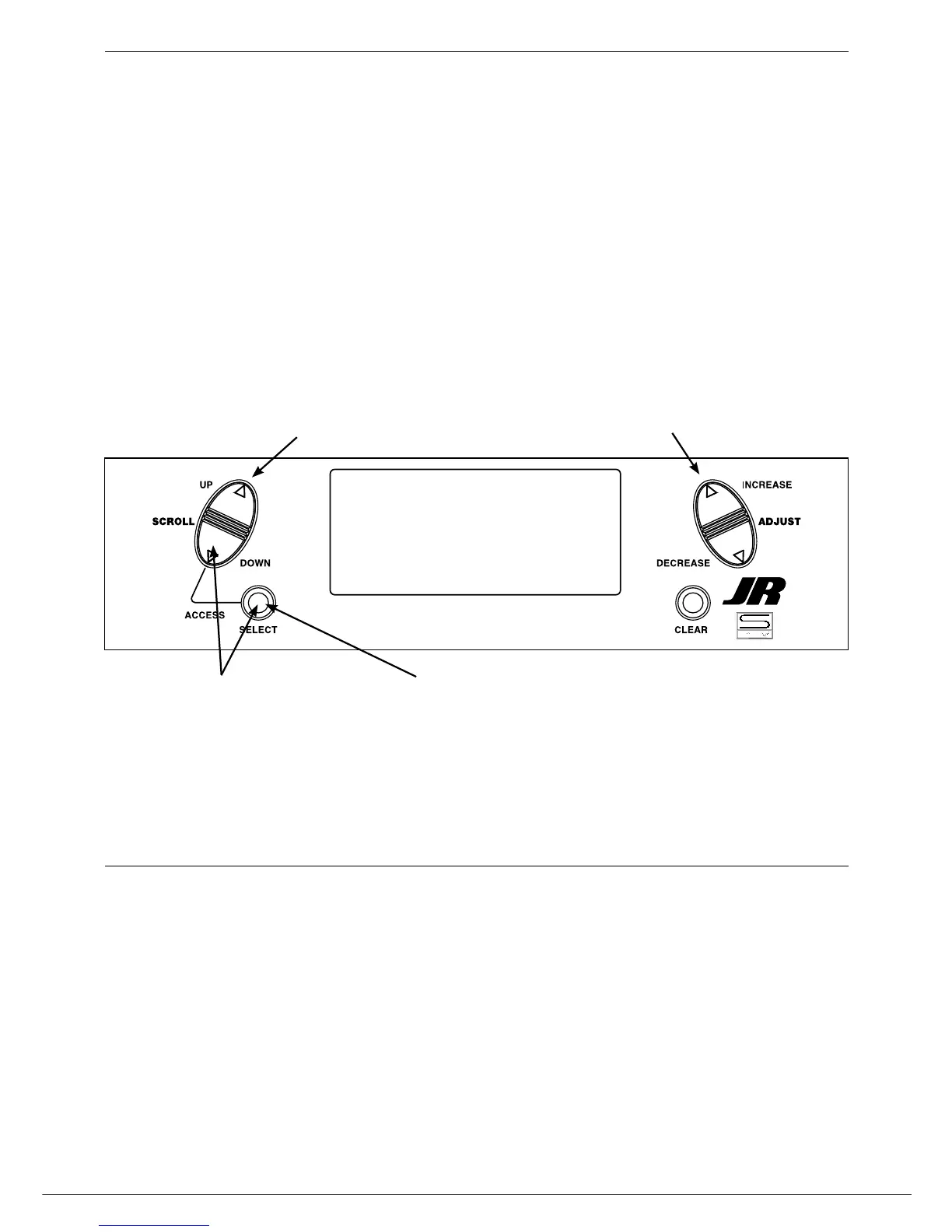

Press to enter
Function Mode
Press to enter ELEV-FLAP MIX
Press to adjust value
Press to select
desired rate
To adjust the rate value, with the switch on, move the
elevator stick in the desired position up or down and
press the IncreaSe or DecreaSe button to adjust the
desired mix value.
