3.3.8 Set Display Color
For each day/night mode, set the colors of the background outside the bearing scale, the background inside the
bearing scale, characters, radar echoes, and radar trails.
Color Adjustment by Menu Operation
Day/Night Registers the switching of a day/night mode.
Own Ship Adjust the colors of the ship's heading marker, own ship symbol, and a vector of
the own ship.
Outer PPI Adjusts the background color outside the bearing scale.
Inner PPI Adjusts the background color inside the bearing scale.
Character Adjusts the colors of characters and bearing scales.
RADAR Echo Adjusts the colors of radar echoes.
RADAR Trails Adjusts the colors of radar trails.
Time: Display interval time is selected.
All:
Continuous display
TT/AIS Adjusts the colors of TT symbols, AIS symbols.
Selecting a Day/Night Mode (Day/Night)
Select the mode for which color setting is to be changed.
Procedure 1 Press [RADAR MENU] key.
Press [4] key.
Press [1] key.

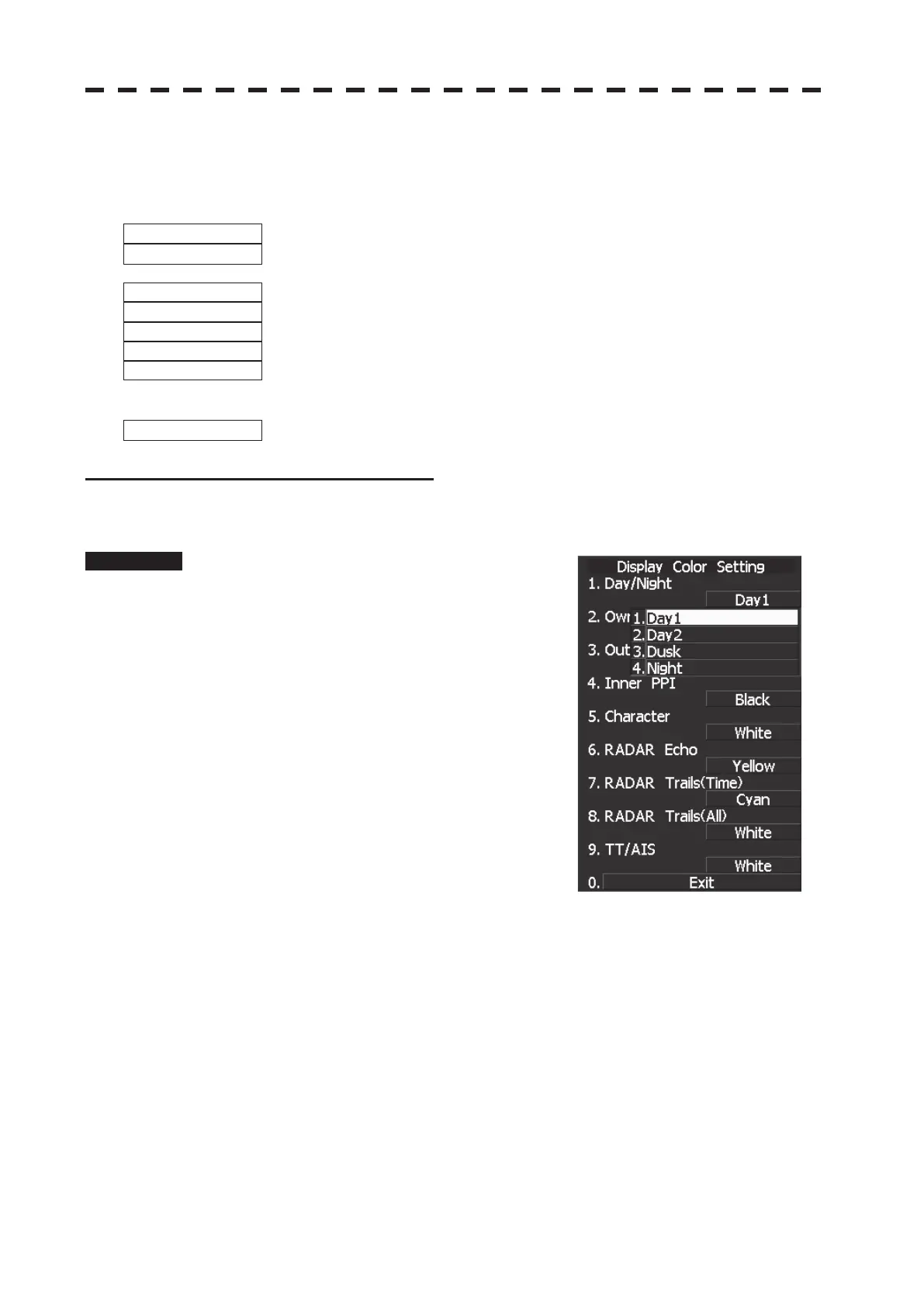

The Display Color Setting Menu will appear.
2 Press [1] key.
The Day/Night mode selection screen will
appear.
3 Select the mode number for color
adjustment, pressing the numeric keys
[1] to [4].
The mode will be selected.
To Next Page
