3.5 GENERAL OPERATIONS
3ņ50
3
y
y y
3.5.9 Move Own Ship’s Display Position [OFF CENT]
The own ship’s position can be moved from the display center to any position within 66% of the display radius.
This function is convenient for observing a wide coverage in any direction.
Note: This function is not available on the 96 NM range.
If the CCRP is outside the display area due to off-centering, the CCRP becomes the antenna
location.
Procedure 1 Press [OFF CENT] key.
The cross cursor mark + will appear at the own ship’s position on the radar display.
* Software button Õ´ located at the top left corner of the radar display described in
Section 2.3.1 is also available to activate OFF Center.
2 Move the cross cursor mark + (own ship’s display position) to a
desired position by using the trackball.
While the cross cursor mark is moving, the own ship’s display position moves following
the cross cursor mark.
When it moves to a position outside 66% of the display radius, the center position is
limited to a position within 66% of the display radius.
3 Press [ENT] key.
The own ship’s display position will be fixed to the cross cursor mark + .
Returning Own Ship’s Position to the Center
Procedure 1 Press [OFF CENT] key for 2 seconds.
Note: Close the menu before using this function. While the menu is open, the function cannot be
used.
* You can keep pressing software button Õ´ located at the top left corner of the radar display described in
Section 2.3.1 for two seconds to return the own ship position to the center.
HL
HL

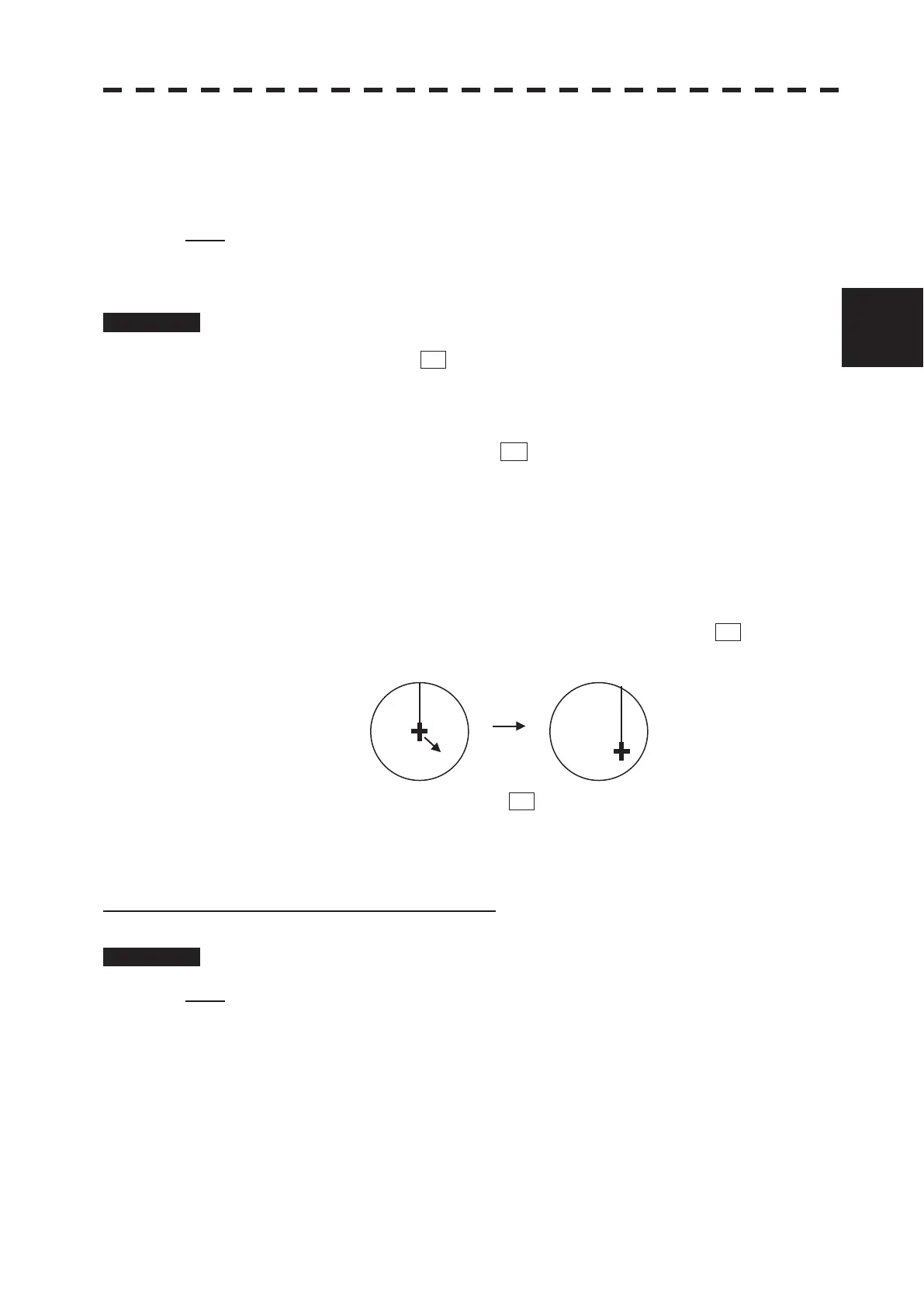

Move the cross cursor mark +
to a desired position.
Press [ENT] key.
The own ship’s display position
will be fixed.
To Next Page
