8.3.2 Line Monitor
Serial communication data can be seen on the built-in Line monitor.
Line monitor can be used to make sure that the serial data are received properly.
Procedure 1 Hold down [RADAR MENU] key.
The Code Input Menu will appear.
2 Press [0] key.
3 Move the cursor onto the “ENT” button
in the Code Input menu, and press
[ENT] key.
The Adjust Menu will appear.
4 Press [5] key.
The COM Port Setting Menu will appear.
5 Press [7] key.

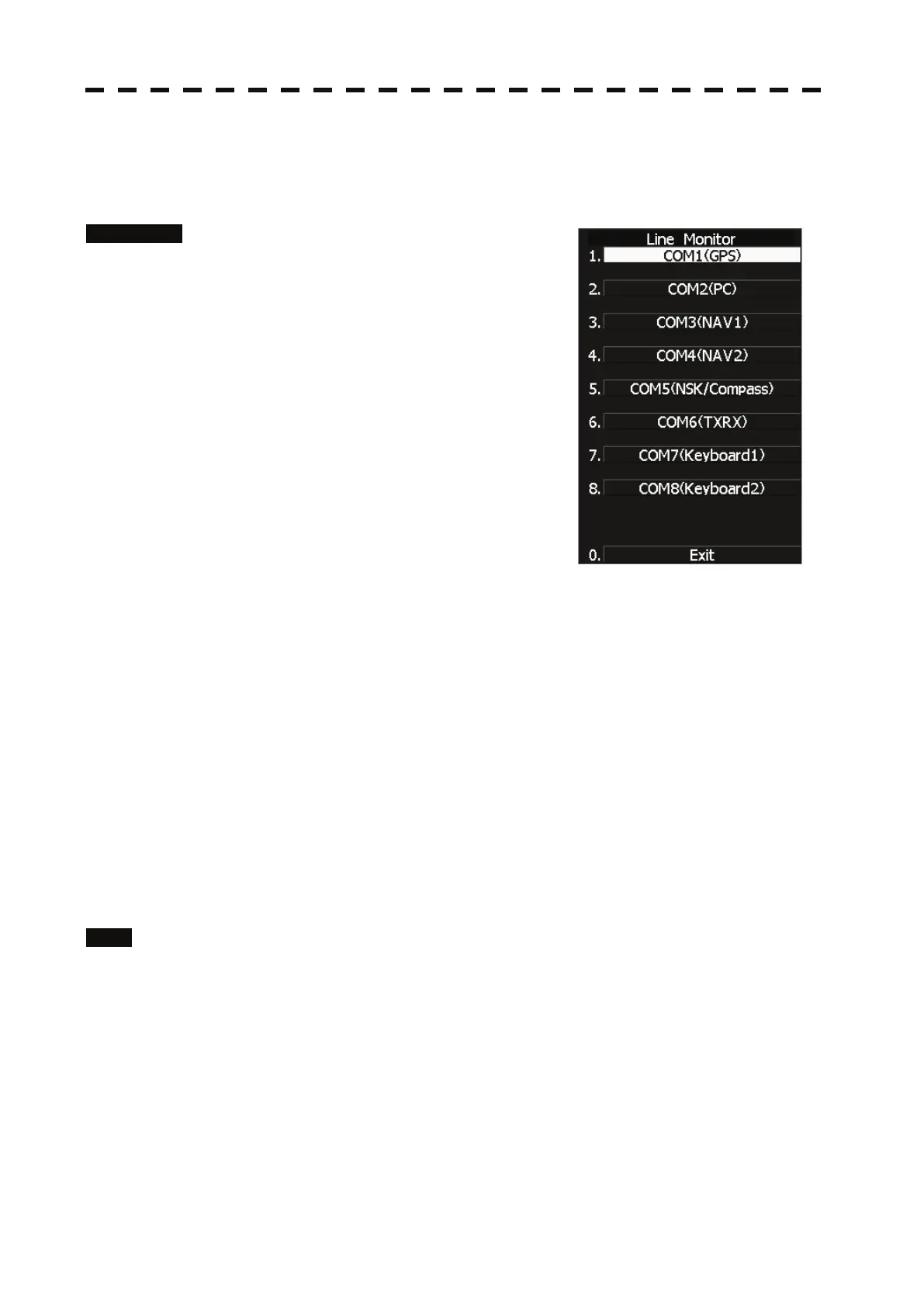

The LINE MONITOR menu will appear.
6 Select the Communication port you want to see, pressing the numeric
keys [1] to [8].
The LINE MONITOR appears.
Refer to the next page for the display.
Each ports on the menu repesets followingconnectors.
COM1(GPS) J3 GPS
COM2(PC) J8 NMEA
COM3(NAV1) J6 AIS/NMEA
COM4(NAV2) J9 AUX (Option)
COM5(NSK/COMPASS) J5 GYRO / COMPASS
COM6(TXRX) J2 SCANNER
COM7(KEY BOARD1) J4 KEY BOARD
COM8(KEY BOARD2) J9 AUX (Optioon)
Exit 1 Press [0] key.
2 Press [RADAR MENU] key.
The Main Menu will reappear.
