7.1.2 Tuning Adjustment
Adjust the tuning control for the transmitter and receiver.
The turning control should be adjusted when the system is installed or when the magnetron is replaced.
Procedure 1 Set a range of 24 NM or more.
2 Hold down [RADAR MENU] key.
The CODE Input screen opens.
3 Press [0] key.
The numeric keypad screen opens.
4 Place the cursor over the “ENT” button
of the numeric keypad and press [ENT]
key.
Adjust Menu opens.
5 Press [1] key.
Equipment Setup menu opens.

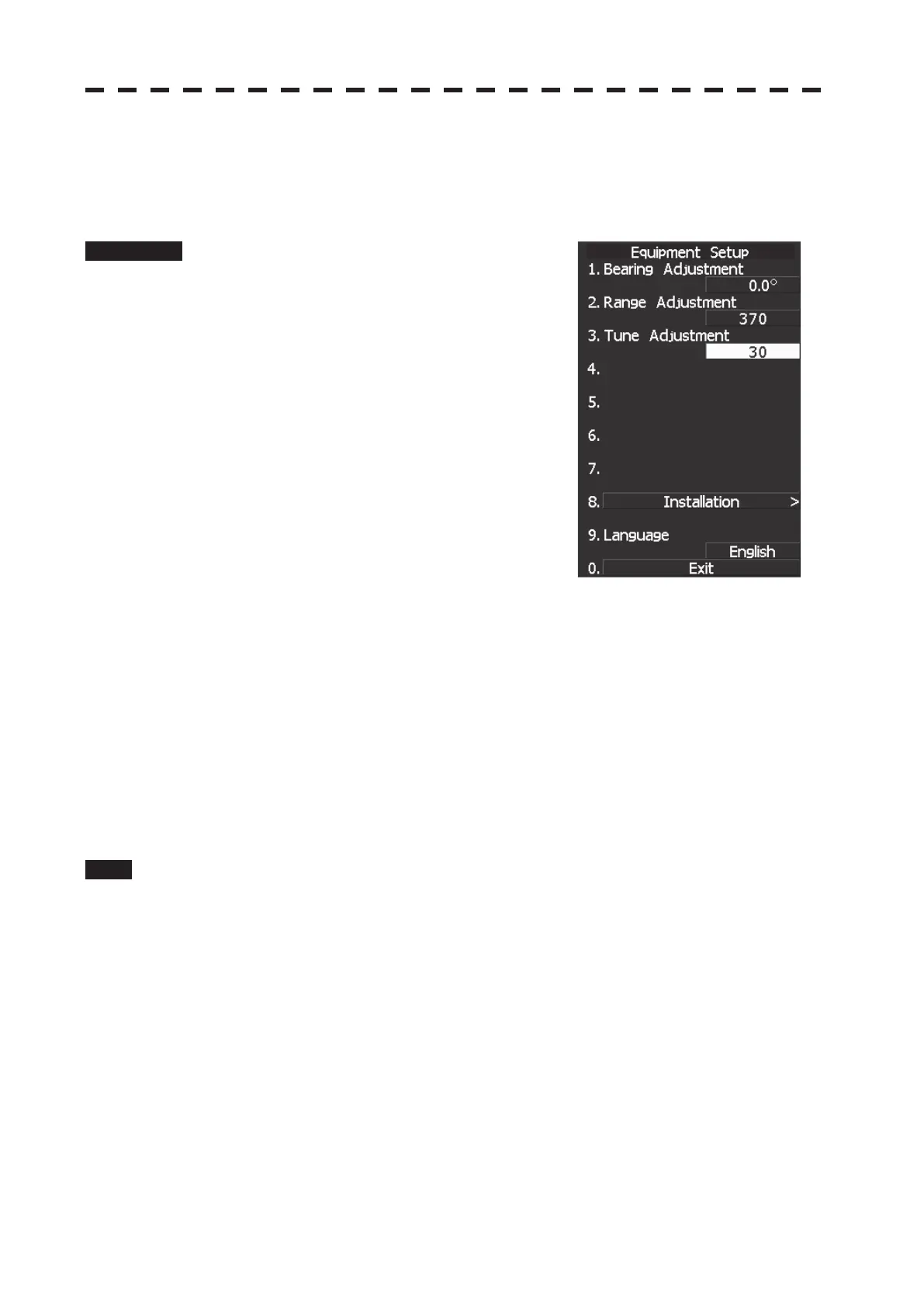

6 Press [3] key.
A numeric keypad screen for Tune Adjustment opens.
7 Adjust the value until the tuning state gauge reaches maximum by
inputting a value with the number keys or by turning the multi-dial to
change the value.
8 When the adjustment is complete, place the cursor over the “ENT”
button of the numeric keypad and press [ENT] key.
The adjustment value is memorized and the adjustment is complete.
Exit 1 Press [RADAR MENU] key.
The Main Menu will reappear.
