Located on the left-hand side of the transmitter is the
charging jack that accepts only JR wall chargers. Please
do not attempt to use any other brand of wall charger, as
it may be reverse polarity and can cause damage to your
system. Only use the JR wall charger when the XS3 is
equipped with Ni-Cd batteries (JRPB958, available
separately).

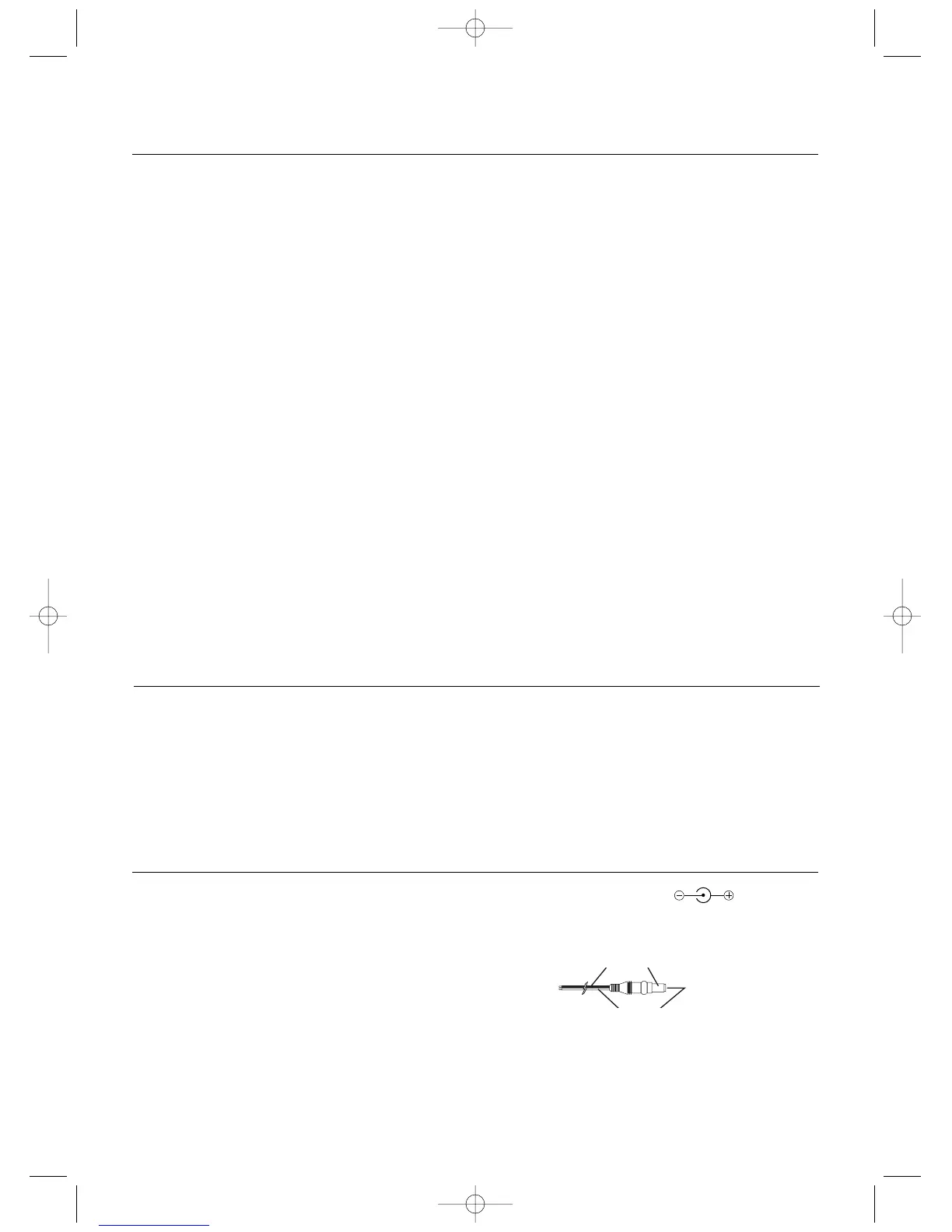

Charging Jack
Charger Pigtail For Transmitter
Black To Positive
Red To Negative
JR TRANSMITTER CHARGE JACK POLARITY:
RC Safety Precautions
Steering Tension Adjustment
Steering tension is adjustable via the recessed screw
located beneath the steering wheel (see page 7 for exact
location). Turning the screw clockwise increases the
steering tension.
8
1.Radio control models are not toys. They are capable
of inflicting serious injury to people and property. Use
caution at all times when operating your model.
2.You are responsible for the safe operation of your RC
model. You must properly install, test and operate your
model with a clear sense of that responsibility. Do not
take risks that might endanger yourself or others.
3.Running an RC car in the streets is very dangerous to
both drivers and models. Avoid running your model in
areas occupied by full-size automobiles. To locate areas
where you can safely operate your model, contact your
local hobby shop for RC tracks or clubs in your area.
4.When running an RC boat, keep it away from any swim
mers, full-size boats and wildlife. Also, watch carefully
for fishing lines that may get tangled in the propeller.
5.Before operating your model, make sure your frequency
is clear. If someone else is operating on the same
frequency, both models will go out of control, possibly
causing damage to the models, as well as others.
6.If at any time while operating your RC model you sense
abnormal model functioning, end your operation im-
mediately. Do not operate your model again until you
are certain the problem has been corrected.
Caution: Control of your model is impossible
without sufficient voltage for the transmitter and
receiver. A weak transmitter battery will decrease
your range of operation, and a weak receiver battery
will slow servo movement and decrease your range
of operation. Check your receiver pack voltage often
to avoid losing control of your model. When using
a model that operates both the electric motor and
the receiver from the same battery (Battery
Eliminating Circuitry or BEC), you should discon-
tinue use when the top speed sharply decreases or
you’ll quickly lose control of your model. For safe
and reliable performance of your RC model, please
carefully read and follow the guidelines below.
