33
1

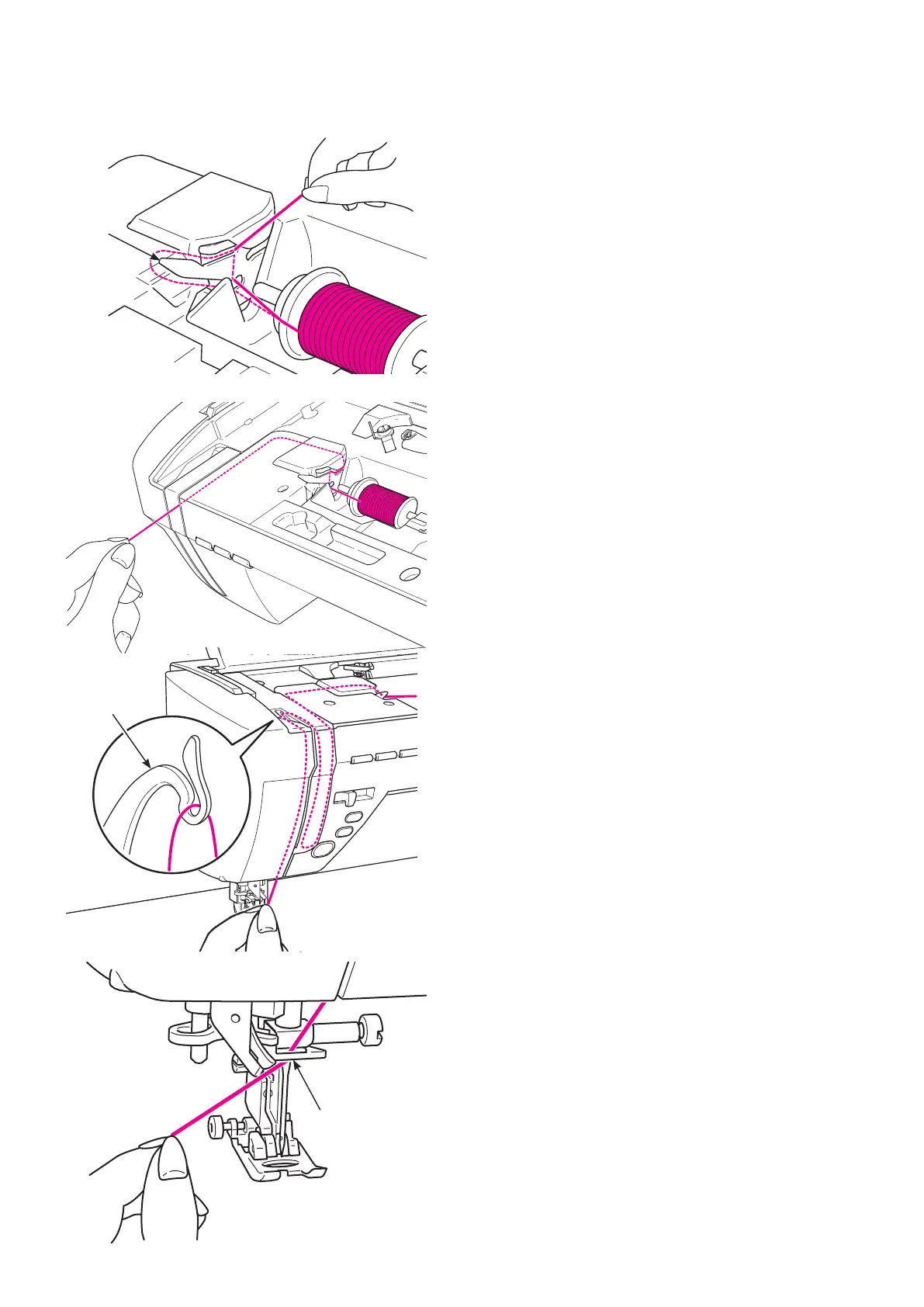

Thread to guide
1
.
Hold the thread end and thread according
to the arrow marking.
*
Check that the thread take-up
C
is correctly
threa
ded.
2
3
Thread the guide
6
from the right-hand
side.
Draw the needle thread out from the guide by approxi
-
mately 10 cm.
4
6
C
34
36
Table of Contents
Default Chapter
1
Instruction Manual
1
Important Safety Instructions
3
Contents
6
Table of Contents
6
1 Configuration and Functions
8
Names and Functions of the Operational Buttons
9
Names and Functions of the Operation Icons and Operational Keys
10
2 Accessories
14
3 Set-Up
15
How to Install Wide Table
15
Changing the Position of the Foot Switch
16
Installation of Knee Lifting Lever
17
4 Basic Settings and Basic Operations
18
Connecting to the Power Supply
18
Speed Control
20
Lifting/Lowering of the Presser Foot
21
Changing the Presser Foot
22
Placing and Releasing "JUKI Smart Feed
24
Changing the Throat Plate and the Feed Dog
25
How to Use the Throat Plate for Straight Stitch
26
Attaching the Needle
27
Fabric, Thread and Needle Table
28
Bobbin Thread Preparation
29
Needle Thread Preparation
33
Threading the Needle Thread
34
Automatic Needle Threader
36
How to Adjust Thread Tension
38
Setting the Presser Foot Pressure
40
Setting the Micro-Lifter
41
Twin Needle Sewing
42
Setting the Automatic Back Tacking, Thread Trimming and Presser Foot Lifting
44
Needle Positions / Zigzag Width / Stitch Length
46
Bobbin Thread Counter
48
Setting the Stop Position of Needle
50
Pivot Setting
50
How to Lower the Feed Dog
51
Operation in Detail
52
Options
52
① Standard Thread Tension Setting
53
② Presser Foot Lifting Height
53
③ Screen to Set the Functions While Presser Foot Is up
54
④ Foot Switch Functions
55
⑤ Start-Up
55
⑥ Adjustable Starting Stitch Speed
56
⑦ Adjustable Reverse Stitch Speed
56
⑧ Darning Adjustment
57
⑨ Buzzer Volume Setting
58
⑩ Brightness Adjustment
58
⑪ Selecting Language
59
⑫ Initialization / Deletion of the Settings
59
⑬ Firmware Update
60
⑭ Machine Log
62
Operation Guide
63
Lock Mode
63
Return" Operation
63
Clear" Operation
63
6 Setting for the Pattern Sewing
64
Single Stitching Mode / Combination Stitching Mode
64
Single Stitching Mode
64
Combination Stitching Mode
64
Setting for the Repetition Stitching
69
How to Select a Stitch Pattern
70
Practical Patterns
70
Decorative Patterns
72
Quilt Patterns
74
Buttonhole Patterns
75
Letters
76
User Memory
77
How to Select the Pattern by Selecting Its Number
78
Types of Edit Functions and How to Use Them
79
Adjusting the Darning
79
Pattern Inversion
81
Changing the Elongation Size
82
Changing the Tapering Size
83
Selecting the Combined Patterns Collectively
83
Deletion
83
Setting the Interval between Patterns
83
Change of Seam Width of Buttonhole
83
7 Sewing
84
Straight Stitch
84
Thread Trimming
86
Reverse Stitch
87
Lock Stitch
88
Inserting Zippers
89
Patchwork Piecing
90
Overcasting Stitch
91
Blind Stitch
92
Shell Tuck
95
Bartacking
96
Eyelet
98
Decorative Stitches
99
Lace / Feather Patterns
100
Scallop Stitches
101
Random Pattern
102
Tapering
103
Hand Look Quilt Stitches
105
Buttonhole Stitches
106
Manual 2-Step Buttonhole
112
Sewing Buttons
114
Quilting (Free Motion)
115
Quilting (Quilt Guide)
117
8 Message Catalog
118
9 Machine Maintenance
121
10 Introduction of Optional Accessory Parts
122
Invisible Zipper Foot
122
Twin Needle
122
Spool Holder
123
11 Performance Check List
124
12 List of Stitch Patterns
126
Specification List
128
