60
⑭

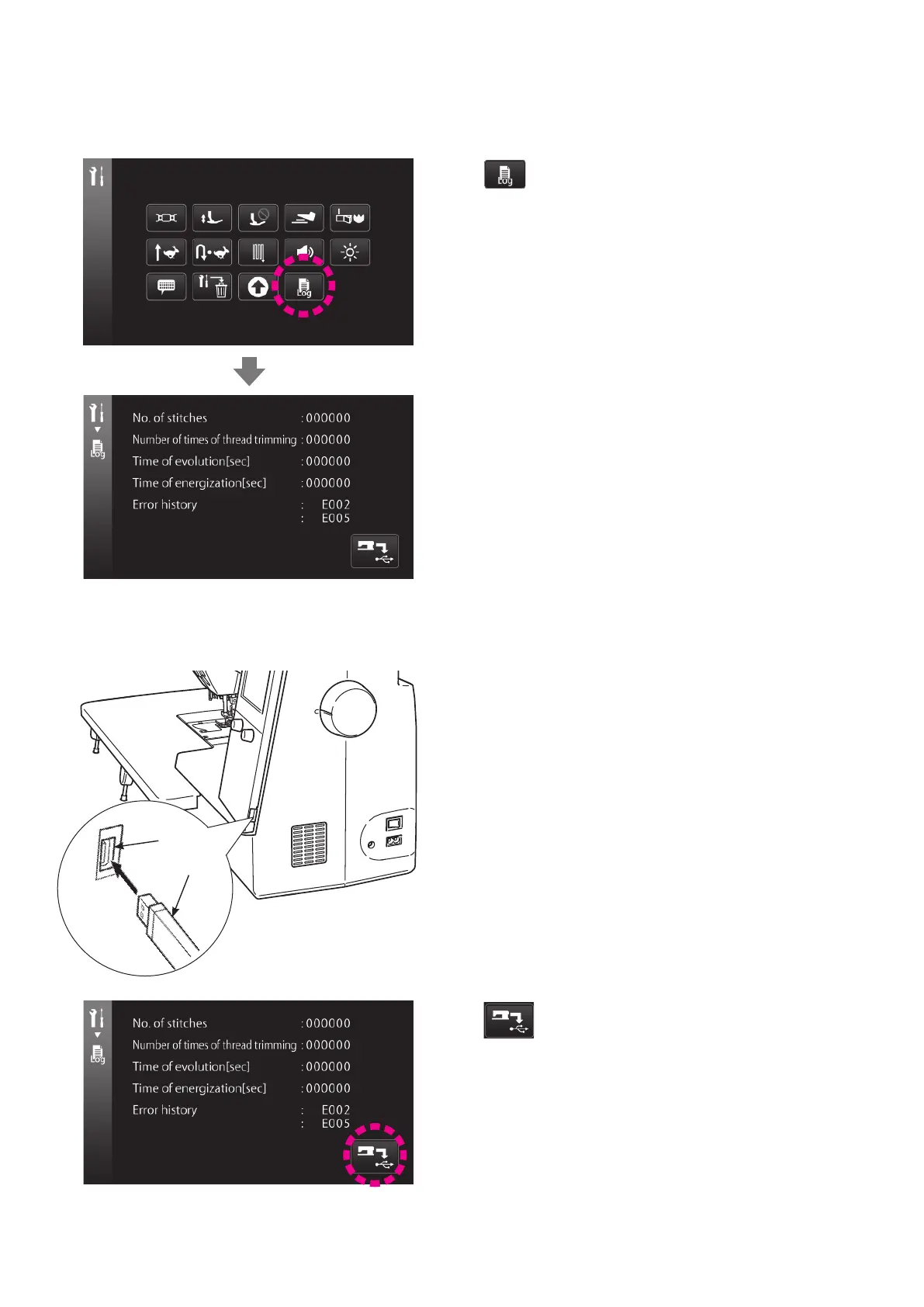

Machine log
Y
ou can check the log of the machine.
Press
.
The sewing machine log is displayed.
・
Accumulated number of stitches
・
Accumulated number of times of thread trimming
・
Accumulated operating time
・
Accumulated energizing time
・
The latest two errors history
●
Saving the service data
Press
.
The service data is stored on the USB thumb drive.
❶
❷
Insert thumb drive
❷
which contains no data or contains only
into USB slot
❶
.
61
