Industrial Sewing Machine SADE
34

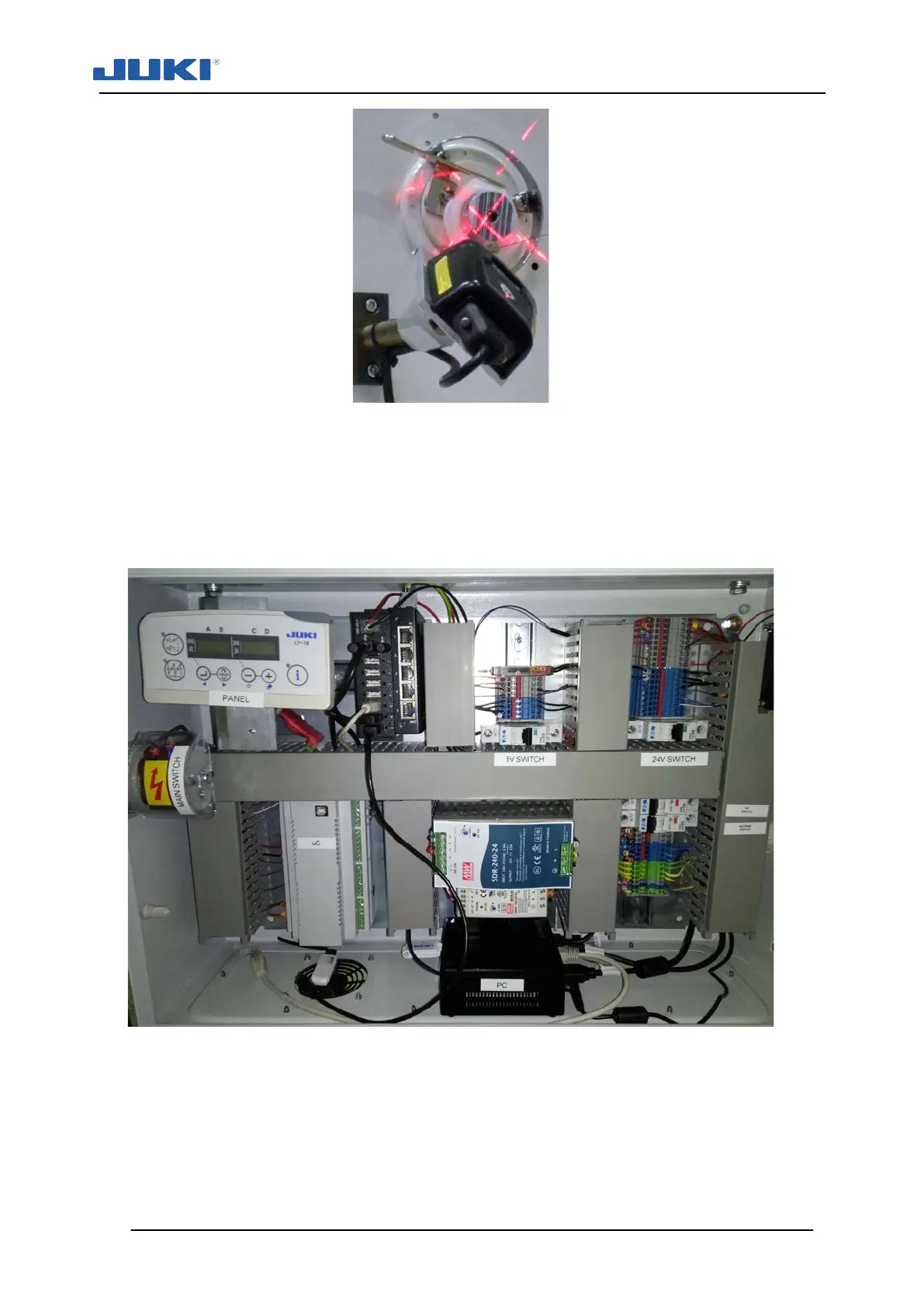

Fig. 8. Bobbin winding station
Control unit
The control unit cabinet placed at the left side of the machine is like the heart of the
JUKI SADE machine. It connects all components. It will monitor and control all in- and
output by programmable logic controller (PLC) with dedicated software. Figure 9 shows
the location of various components in the control unit cabinet.
PANEL – CP-18 control panel
Machine switch
5V switch
uC – SADE control board
24V switch
Impulse power supply 240W, 24V dc
Main switch
Impulse power supply 30W, 5V dc
PC switch
PC - computer
Fig. 9. Location of various components in the control unit cabinet
