i Switching times can be individually deleted in the submenus (see page 238-239). The
configurations for the switching time concerned are discarded and the allocation of
channels are removed by the deletion. When a switching time is deleted, a memory
location is reserved that can be assigned again later at any time by the creation of a new
switching time. Deleted switching times can therefore be set up again at any time. For this
purpose, a button with the name "New - create switching time" is displayed in the overview.
If all 8 switching times are available, the "New" button is omitted.
The sensor surfaces of the switching times visible in the display have different display elements
(figure 110). For this reason, each switching time is indicated by the room name (A) to identify
the area of operation (e.g. "living room", "kitchen"). This room name is specified by allocating
the KNX channels to the existing rooms (parameter "room" in the parameter node of a channel).
In addition, the enabled switching time is indicated (B) in the sensor element. A status text (C)
to the right of the switching time indicates which channel command with an active switching time
is being executed for the specified time. The executable channel commands are dependent on
the configured function of the allocated KNX channel (see page 227-228). A status icon (D) is
also displayed on the right-hand side of the sensor elements. Just like the status text, the icon
also indicates the channel command to be executed in graphic form. With some channel
functions the icon can be changed if required and thus adapted to the activated KNX function. In
the sensor element of a switching time, the symbol selected by the ETS configuration of the
allocated KNX channel is always used.
Switching times can be active or inactive. The sensor surfaces of inactive switching times are
greyed out (E) in the overview indicating that these switching times are not being edited and
thus not executed either. Inactive switching times can be activated in the submenu of a
switching time at any time.

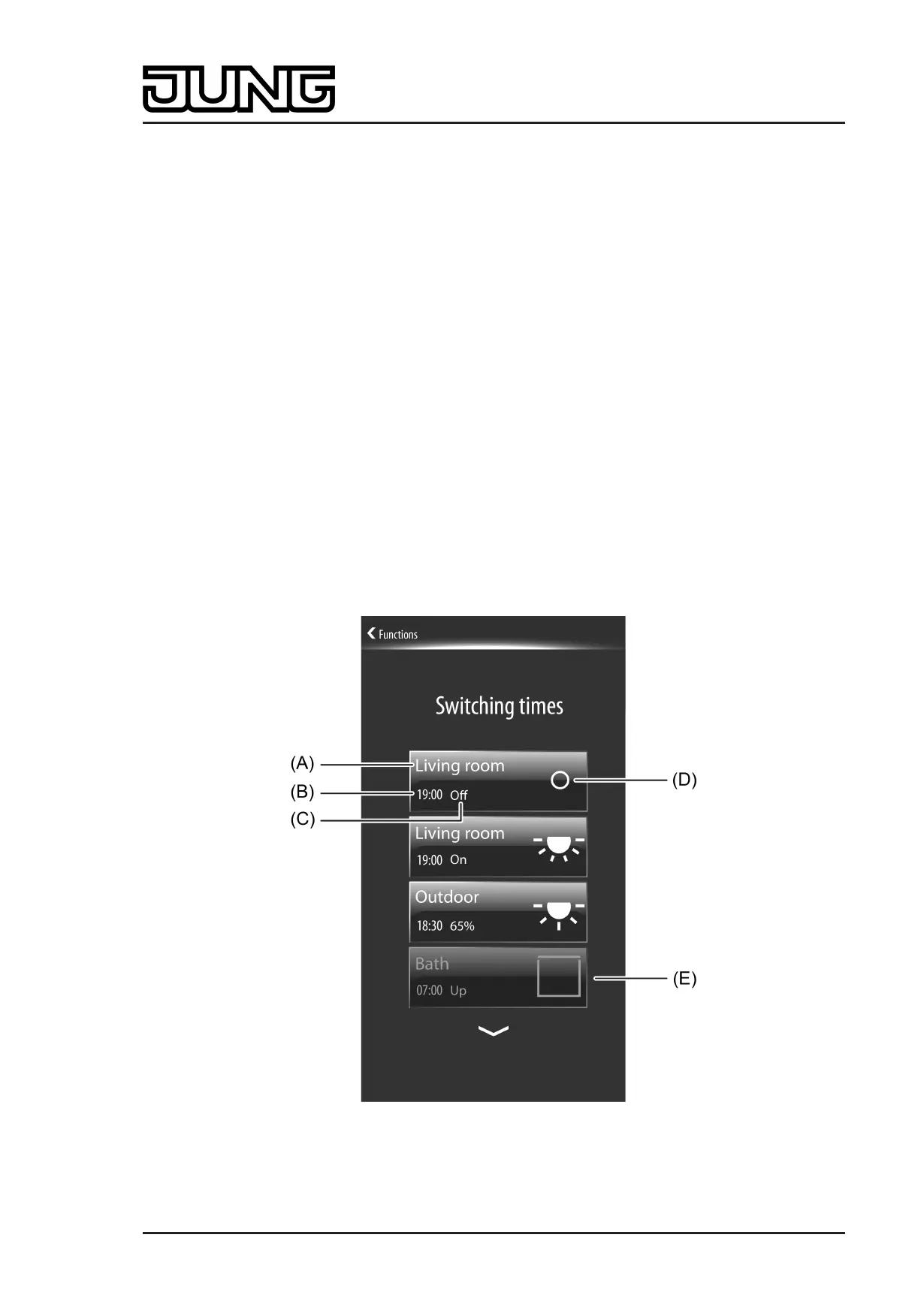

Figure 110: Example of display elements of the sensor elements in the Switching times
overview
(A) Room name
