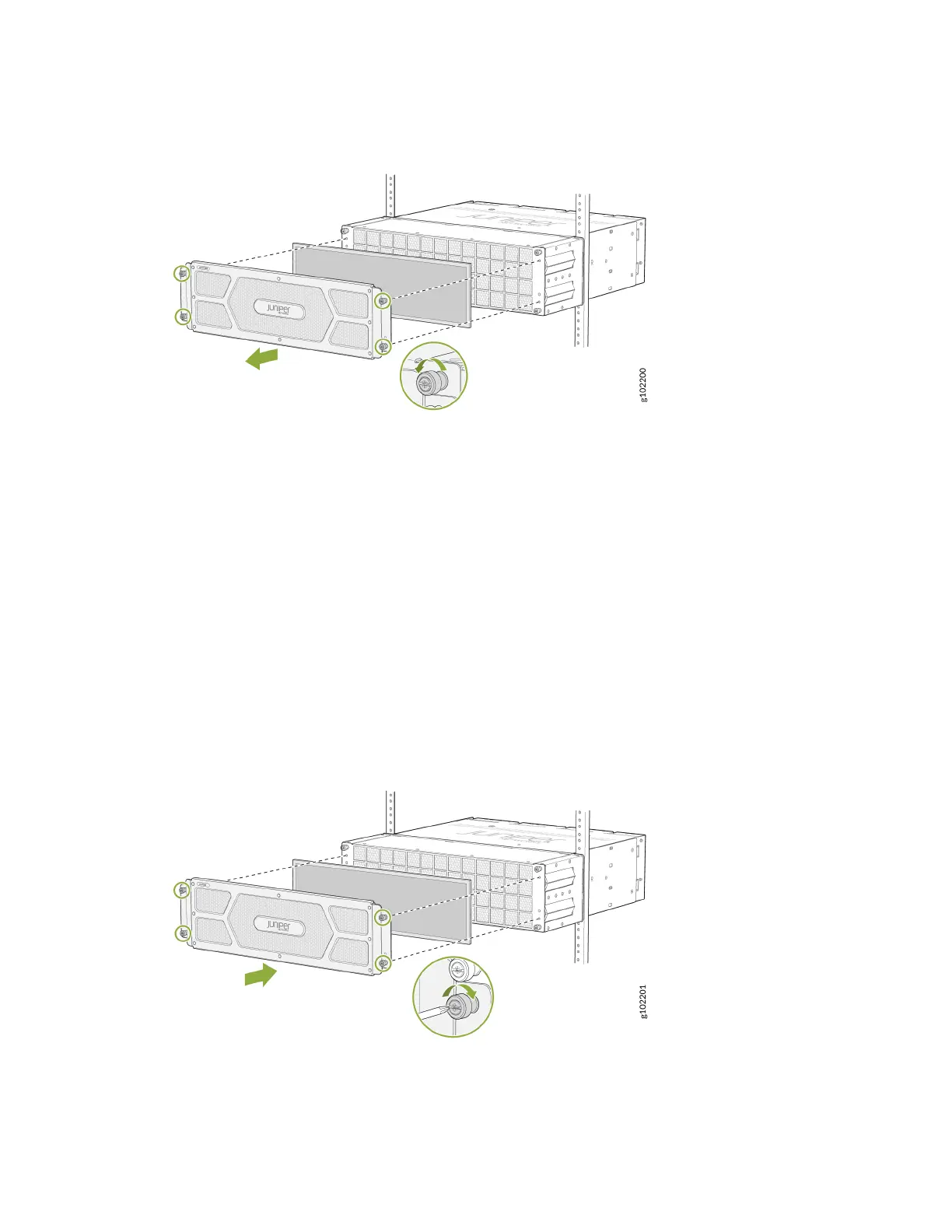

Figure 61: Remove the Air Filter from the Chassis
Install the Air Filter
To install the air lter:
1. Aach an electrostac discharge (ESD) grounding strap to your bare wrist, and connect the strap to
one of the ESD points on the chassis.
2. On the front of the router, loosen the capve screws on each side of the air lter unit.
3. Grasp the head of the loosened screws, and pull out the outer air lter cover. The air lter is installed
at the center of the air lter unit, just behind the outer lter cover. See Figure 53 on page 103.
4. Slide the air lter straight onto inner lter cage. See Figure 62 on page 109.
Figure 62: Install the Air Filter
5. Place the outer air lter cover back into its place, and ghten the capve screws to secure the air
lter unit.
109
