3. Connect the power cord to the power source outlet.
NOTE: Each power supply module (PSM) must be connected to a dedicated AC power feed
and a dedicated customer-site 2-pole circuit breaker. We recommend that you use a

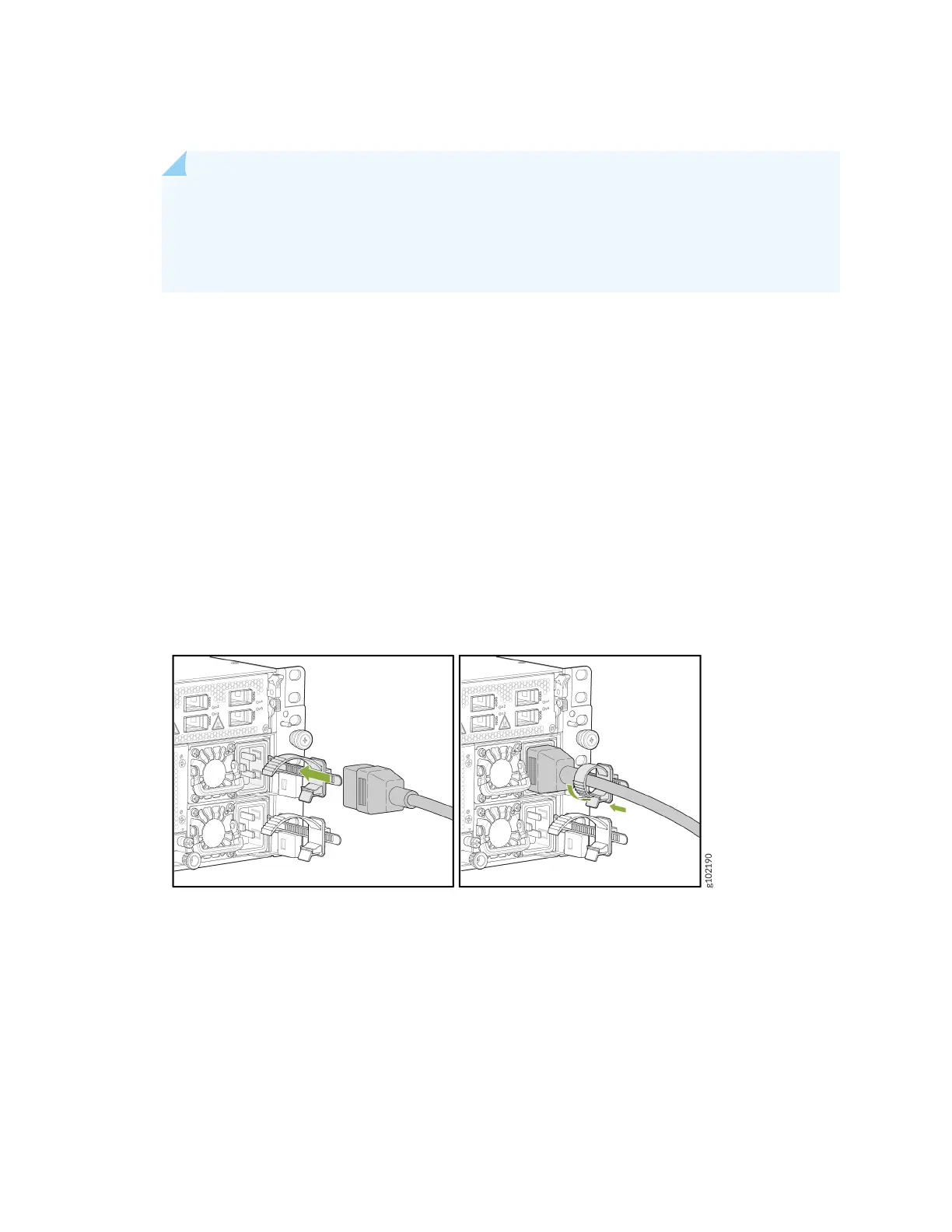

dedicated customer-site circuit breaker rated for 16 A, 250 VAC or as required by local
code.
4. Press the small tab on the power cord retainer strip to loosen the loop. Slide the loop unl you have
enough space to insert the power cord coupler into the inlet.
5. Insert the power cord coupler rmly into the inlet.
6. Slide the loop toward the PSM unl it is snug against the base of the coupler.
7. Press the tab on the loop and draw out the loop into a ght circle.
8. Route the power cord appropriately. Verify that the power cord does not block the air exhaust and
access to router components, or drape where people could trip over it.
9. Power on the source power supply.
10. Repeat Step "2" on page 4 through Step "9" on page 5 for connecng the other PSM to power.
5
