2. Wrap and fasten one end of the ESD grounding strap around your bare wrist, and connect the other
end of the strap to an ESD point on the chassis. An ESD point is located on the front of the ACX7348
router (see Figure 74 on page 121 ).
3. Label the cables connected to each port on the FPC so that you can reconnect the cables to the
correct ports.
4. Take the FPC oine by using the request-chassis-fpc slot
slot-number
oine command. Verify the
status informaon by using the show chassis fpc command.
5. To unlatch the ejector handles, grasp both the ejector handles using your hands by placing your
thumb on top of the ejector handle and your index nger below the ejector handle. Pull down the
ejector handles simultaneously and slide the FPC out of the slot (see Figure 75 on page 122).

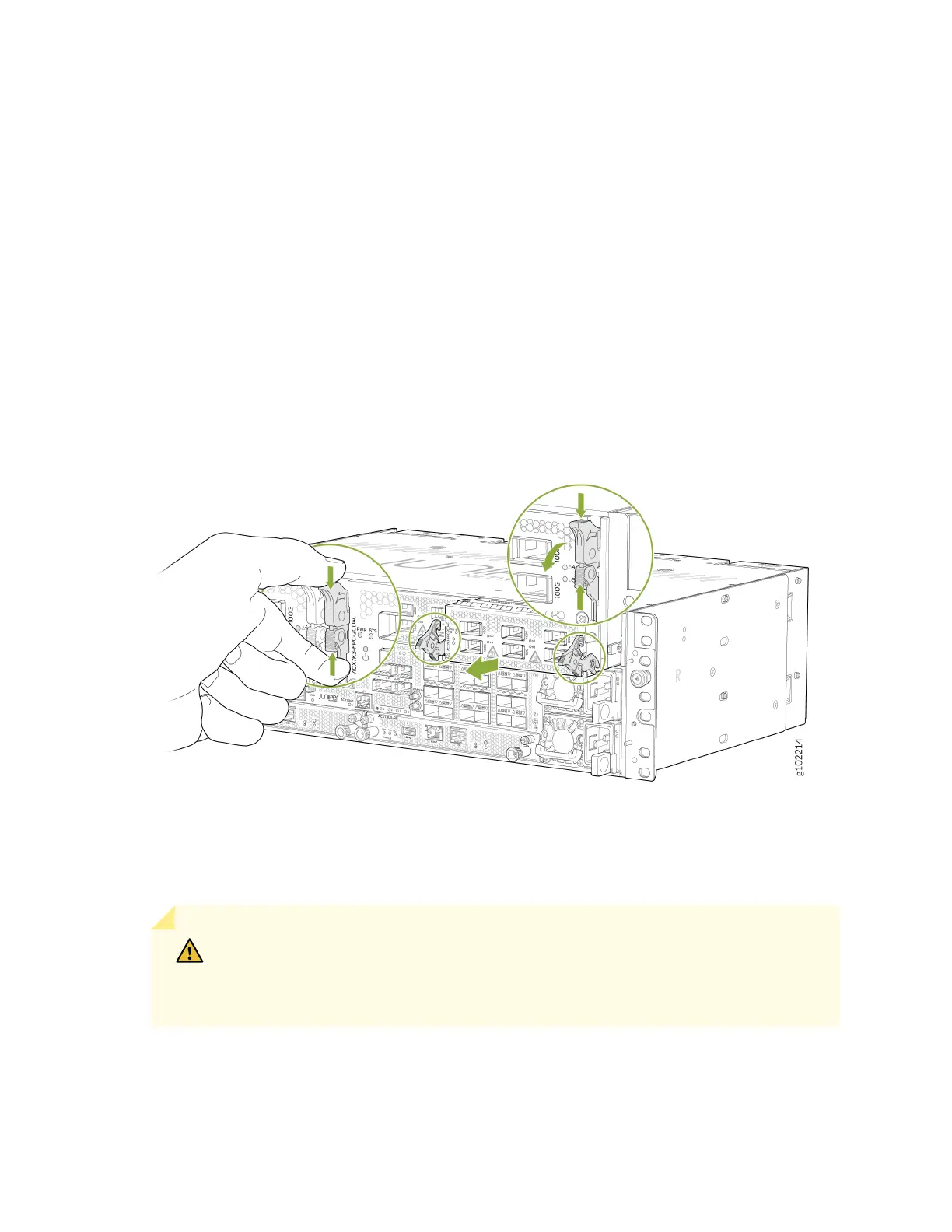

Figure 75: Removing an ACX7348 FPC
6. Place the FPC on the anstac mat. Be careful not to bump or handle the FPC by the connectors. If
you do not have an anstac mat, have another person help you slide the anstac bag over the FPC
before placing it on a stable surface.
CAUTION: Do not stack hardware components on top of one another aer you
remove them. Place each component on an anstac mat resng on a stable, at
surface.
