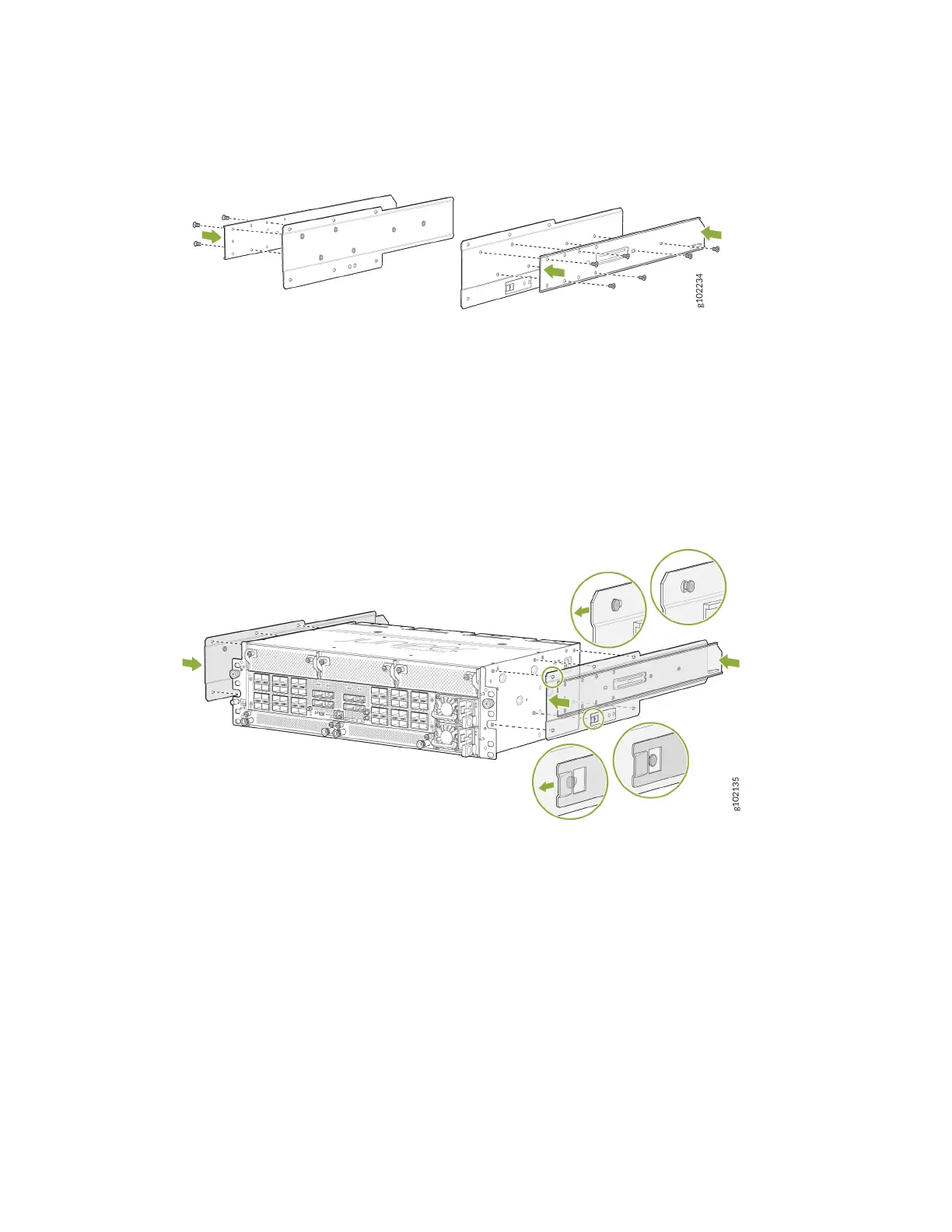

Figure 29: Assemble the Telescopic Rail Bracket Assembly
4. Aach the bracket assembly to the chassis.
a. Align the keyholes in the bracket assembly to the aligned holes on the chassis.
b. Push the bracket assembly towards the front of the chassis to lock the bracket assembly in place.
Figure 30: Aach the Bracket Assembly to the Chassis
5. Aach the telescopic rails to the rack posts.
a. Aach the rear end of the telescopic rails into the rear rack posts.
b. Aach the front end of the telescopic rails into the front rack posts.
