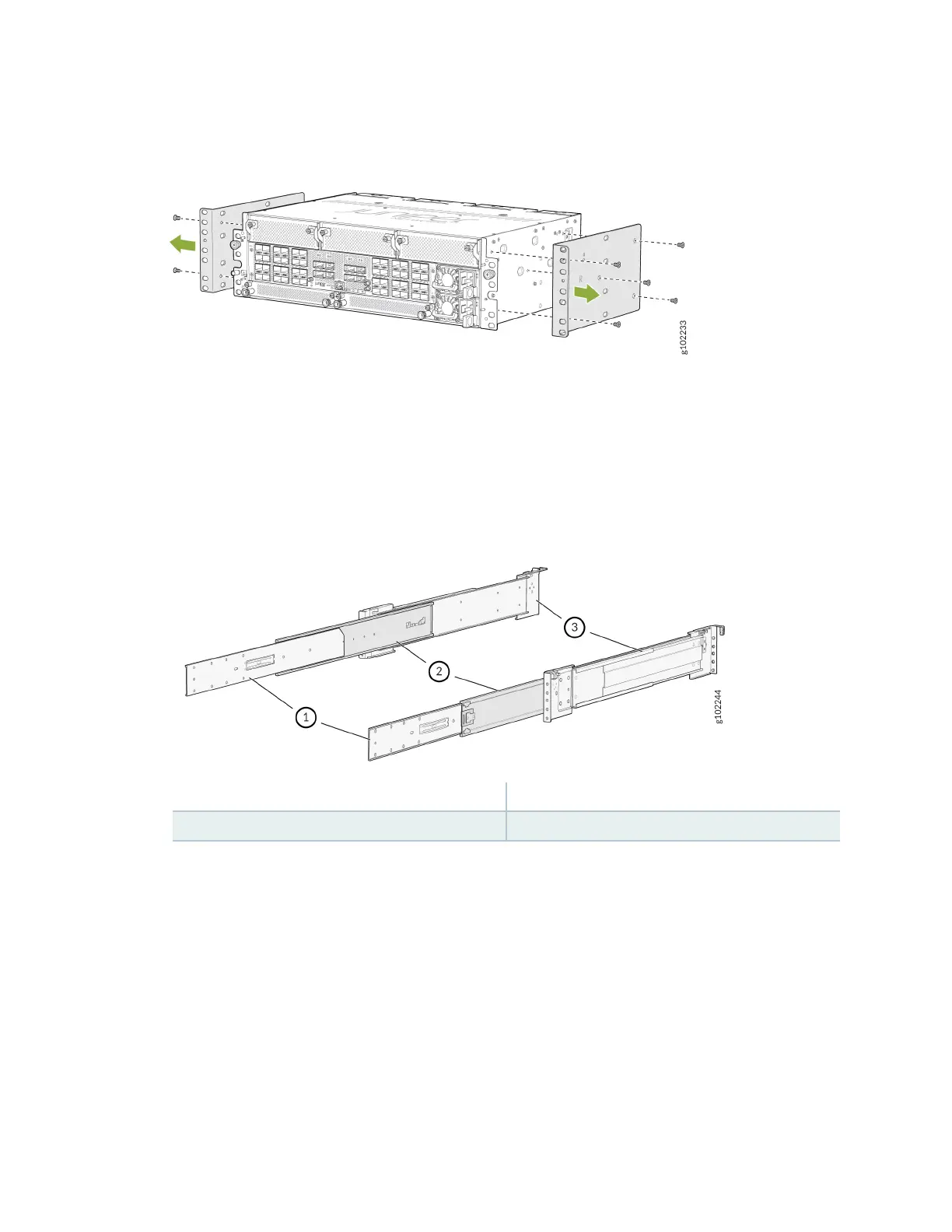

Figure 27: Remove the Two-Post Mounng Brackets
3. Assemble the bracket assembly.
a. Detach the removable telescopic rail. The telescopic rail assembly consists of three parts. See
Figure 28 on page 75.
Figure 28: Telescopic Rail Assembly
1— Removable telescopic rail bracket 3— Fixed telescopic rail
2— Middle telescopic rail
b. Pull out and detach the removable telescopic rail bracket from the telescopic rail assembly.
c. Place the telescopic rail bracket over the chassis bracket. See Figure 29 on page 76.
d. Align the holes on the telescopic rail bracket over the chassis bracket.
e. Use the screws provided with the telescopic rail brackets to aach the telescopic rail bracket over
the chassis bracket.
