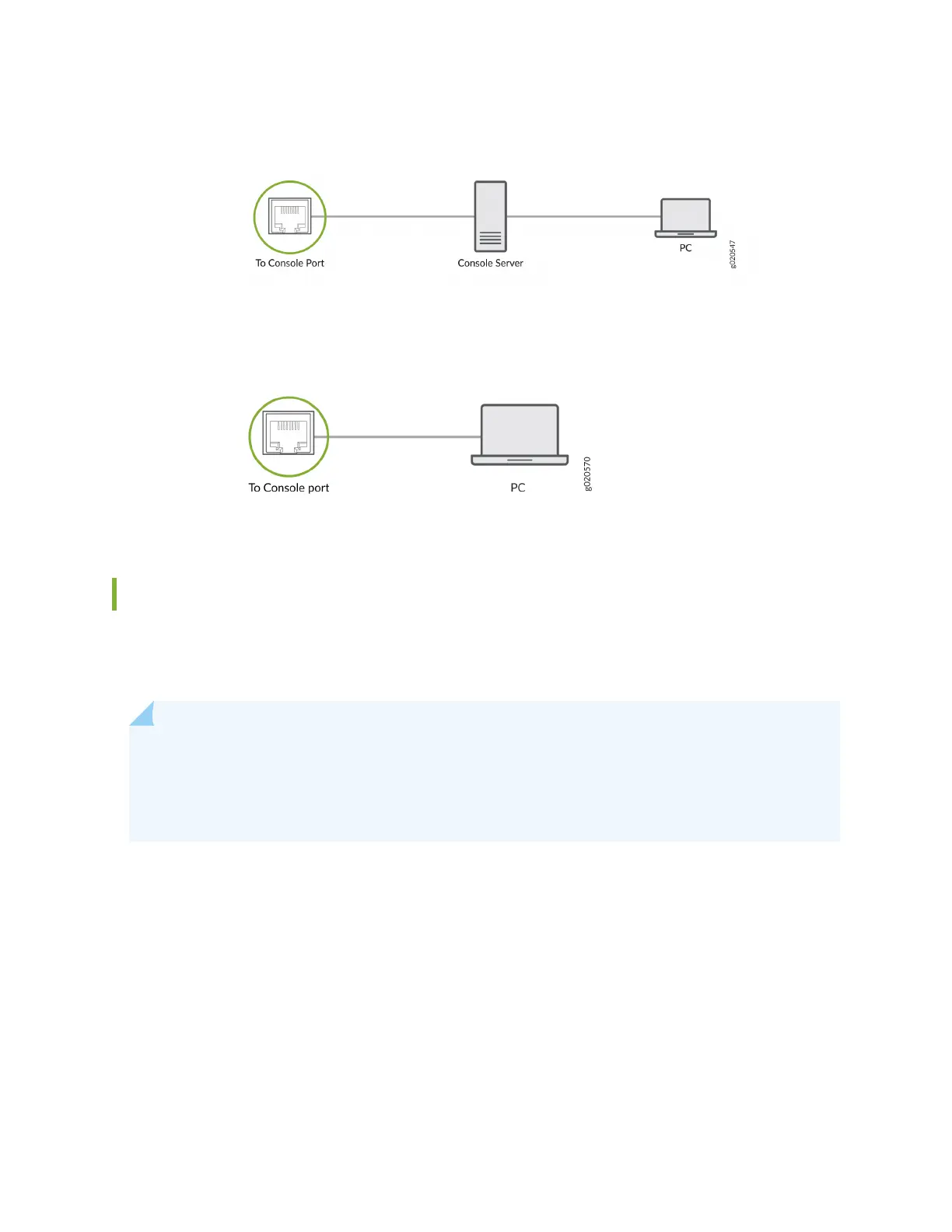

Figure 43: Connect the ACX7348 Router to a Management Console through a Console Server
Figure 44: Connect the ACX7348 Router Directly to a Management Console
Connect an ACX7348 Router to a Network for Out-of-Band Management
You can monitor and manage the ACX7348 router by using a dedicated management channel. Use the
management ports to connect the ACX7348 router to a network for out-of-band management.
NOTE: You cannot use the management ports to perform the inial conguraon of the
ACX7348 router. You must congure the management ports before you can successfully connect
to the ACX7348 router using these ports. See "Perform Inial Soware Conguraon for
ACX7348 Routers" on page 93.
To connect an ACX7348 router to a network for out-of-band management:
1. Connect one end of the cable to the management port labeled MGMT on the ACX7348 router.
2. Connect the other end of the cable to the management PC (see Figure 45 on page 89).
