5.7.7.2 Non-line-monitored inputs

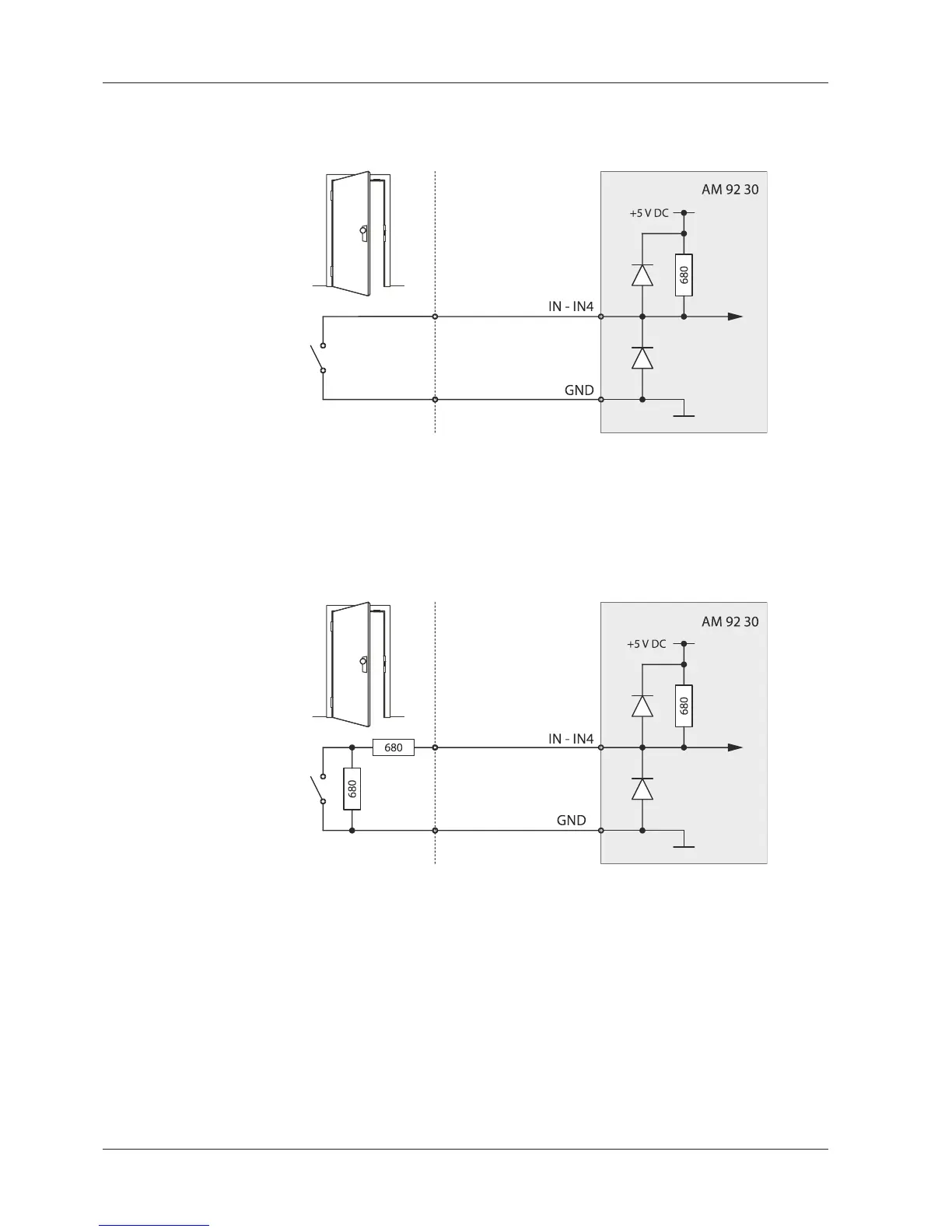

Example: Connection to door frame contact not line-monitored.
Tampering to lines between access manager and door frame contact is not detected.
5.7.7.3 Line-monitored inputs
With line monitoring activated, resistors (680 Ω, 0.25 W, 2 %) must be connected in
series and in parallel to the respective contact. The resistors must be attached in a
vandal secure manner directly to the external contact.
Example: Connection to door frame contact line-monitored.
Tampering to lines between access manager and door frame contact is detected.
