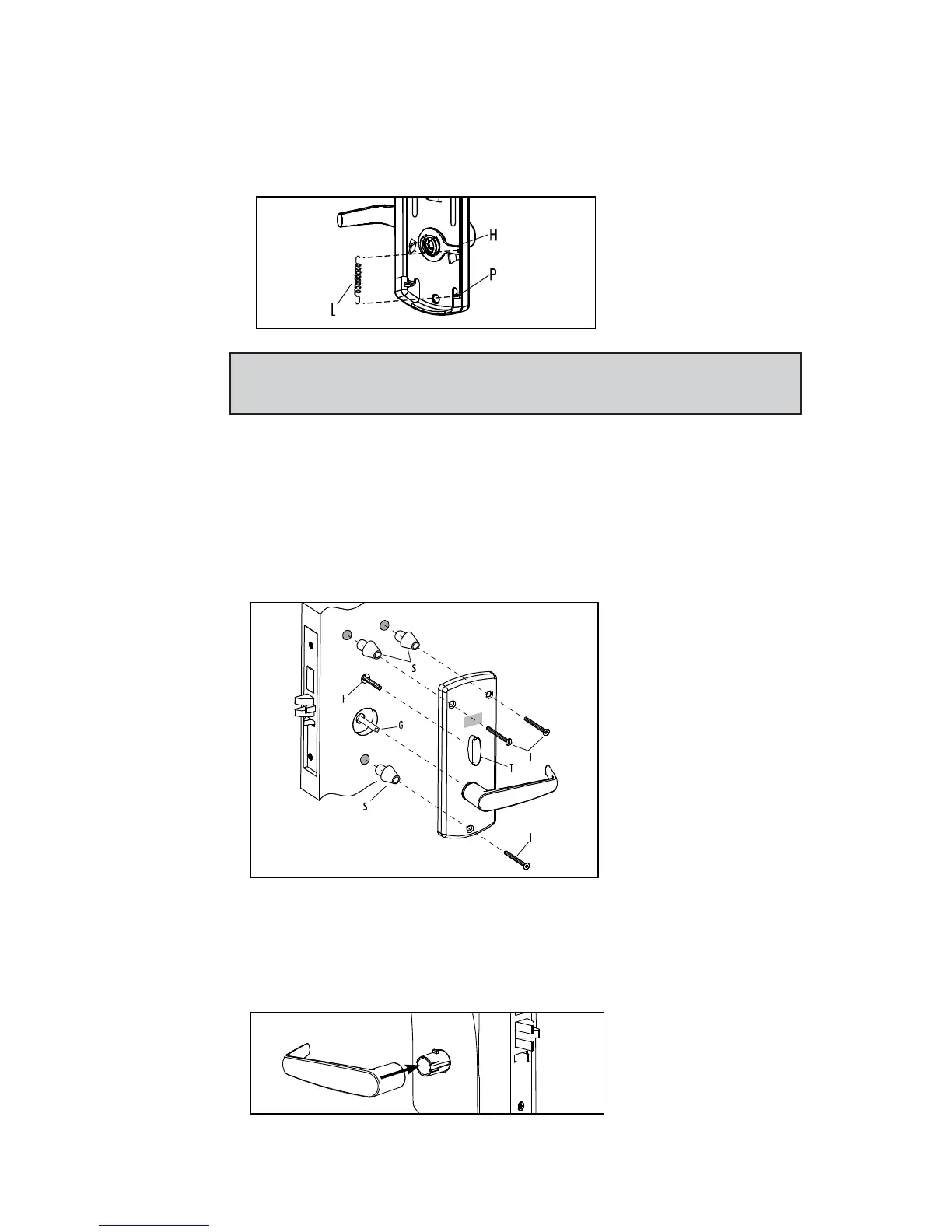

5. On the inside trim assembly turn the lever to the correct horizontal rest
position for the handing of the door. Install the tension spring (L)
between the handle (H) and the post (P).
Note: For Autodeadbolt ASM, Office and Storeroom models, refer to
section B-3
6. Put the thumbturn (T) in a vertical position. Place 3 spacers (S) on the
door (for recent models only) and place the inside trim assembly on the
door so that the upper and lower spindles (F) and (G) engage the thumb-
turn and the inside lever. Fasten to the outside housing using the three
1/8" hex drive mounting screws (I). Install the screws without tightening.
Verify the inside lever and thumbturn operates smootly. If not move the
inside and outside housings slightly. Then tighten the screws.
7. Assemble the lever on the outside housing, in the horizontal rest position
appropriate to the handing of the door. Simply push the lever onto the
tube until it clicks in place. If more force is required, use a rubber mallet.
Test the attachment of the handle by pulling smartly on it. (For locks with
key override, see p. 35)
