1.3 Choosing the installation location
Installation environment
1. Ensure that the inverter is installed out of the reach of children.
2. To ensure an optimal operation and a long service life, the temperature of the installation environment of the inverter
should be ≤ 40 °C.
3. T
o avoid direct sunlight, rain, snow and moisture on the inverter, we recommend to install the inverter at locations with
a protective roof. Do not completely cover the top of the inverter.
4. The installation conditions must be able to accommodate the weight and size of the inverter. The inverter is suitable for
mounting on a solid wall that is vertical or sloping backwards (max. 15°). It is not recommended to install the inverter on
a wall made of plasterboard or similar materials. The inverter may emit audible noises during operation.

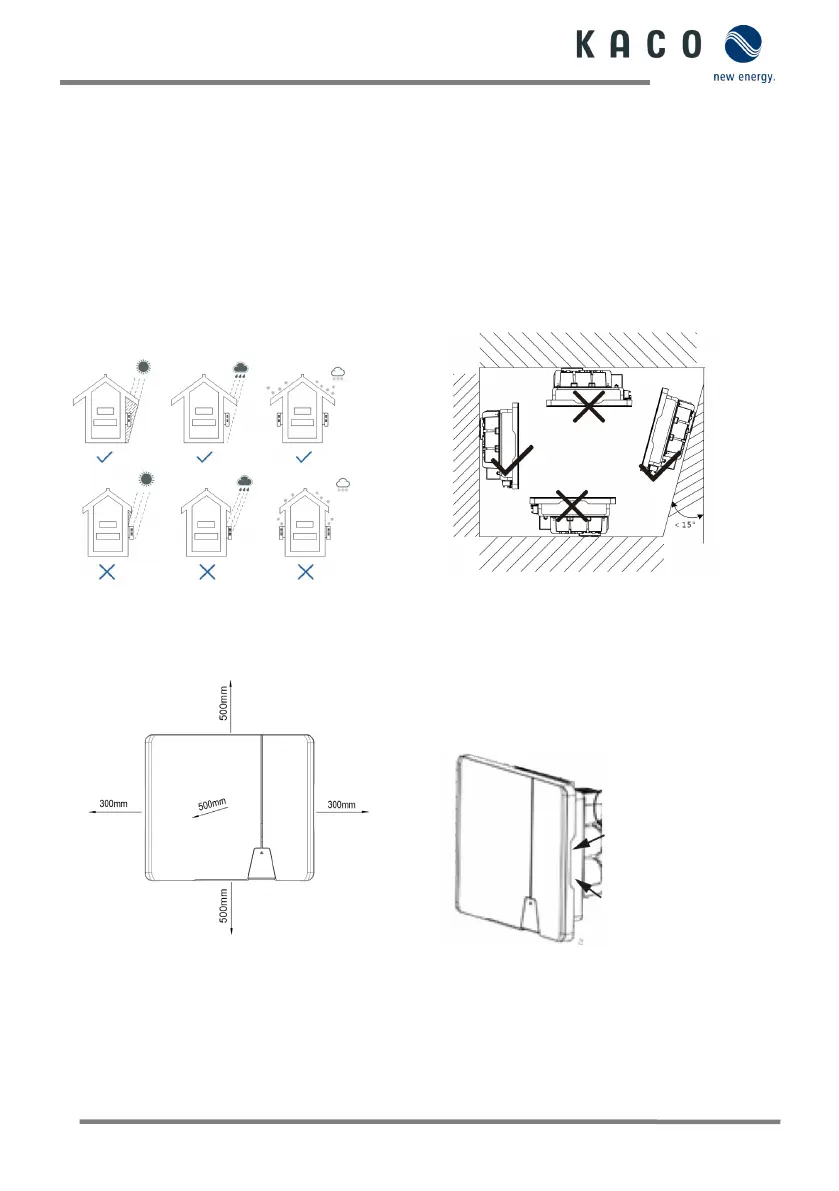

Fig. 1: Device for outdoor installation
Fig. 2: Permissible installation location
5. To ensure adequate heat dissipation, the following clearances are recommended between the inverter and other
objects:
Fig. 3.1: Device for outdoor installation
Fig. 3.2: Lifting position (right side)

Kaco blueplanet 10.0 NX3 M2 Specifications

General

Model	blueplanet 10.0 NX3 M2
Manufacturer	Kaco
Category	Inverter
Max. AC Output Power	10000 W
Max. DC Voltage	1100 V
Number of MPPTs	2
Max. apparent AC power	10000 VA
AC frequency	50 Hz / 60 Hz
Max. AC current	16 A
Max. DC current	26 A
Protection class	IP65
Topology	Transformerless
Operating Temperature Range	-25°C to +60°C
Cooling	Convection
Max. DC power	15000 W
AC Output Voltage	230 V / 400 V
AC voltage range	230 V / 400 V
