Lifting and installing the device
 Wall bracket mounted.
1 Lift the device using the grip recesses (see Fig. 3.2). Observe the centre of gravity!
2 Hook the device into the mounting plate (see Fig. 6 and Fig. 8.2 – Pos 1.) and check that it is securely seated.
3 Mount the enclosed screws (2x M5x14mm) on both sides of the hole (Fig.8.2 – Pos 2.) to secure against lifting out.
[ P / 2 Nm]
»Device is installed. Proceed with the electrical installation.

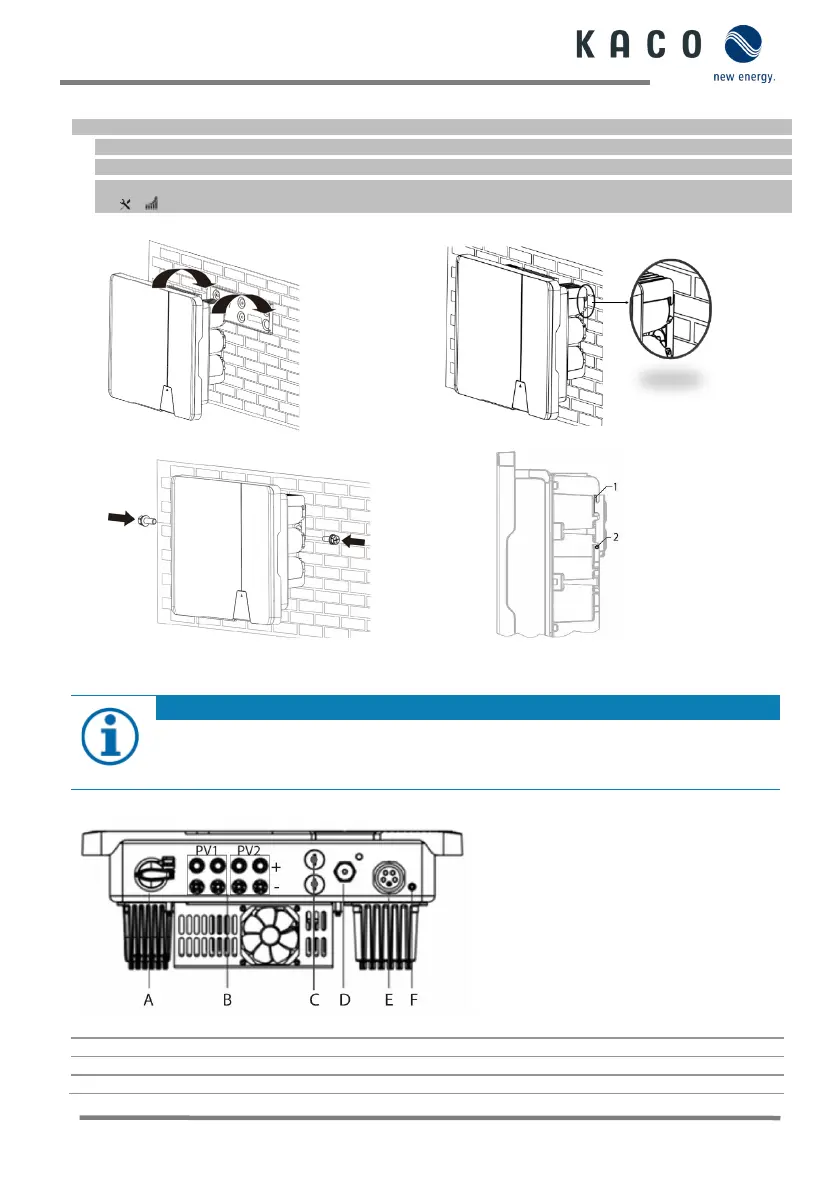

Fig. 6: Mounting the inverter to the wall bracket
Fig. 7: Check that the device is secure.
Fig. 8.1: Fasten the inverter Fig. 8.2: Securing the inverter
1.6 Making the electrical connection
NOTE
Select conductor cross-section, safety type and safety value in accordance with the following basic
conditions:
Country-specific installation standards; power rating of the device; cable length; type of cable installation;
local temperature
1.6.1 General view inverter from the bottom
Fig. 8.3: Connection site: Legend
A DC integrated isolator switch
D
COM 3 – Connector for WiFi stick
B DC connector for PV generator
E
AC connection socket
C COM1&2 – RJ45 socket for RS485 connection
F
Housing grounding

Kaco blueplanet 10.0 NX3 M2 Specifications

General

Model	blueplanet 10.0 NX3 M2
Manufacturer	Kaco
Category	Inverter
Max. AC Output Power	10000 W
Max. DC Voltage	1100 V
Number of MPPTs	2
Max. apparent AC power	10000 VA
AC frequency	50 Hz / 60 Hz
Max. AC current	16 A
Max. DC current	26 A
Protection class	IP65
Topology	Transformerless
Operating Temperature Range	-25°C to +60°C
Cooling	Convection
Max. DC power	15000 W
AC Output Voltage	230 V / 400 V
AC voltage range	230 V / 400 V
