KEB COMBILINE Z2 Series User Manual

26
DIMENSIONS AND WEIGHTS
3.3.2 Motor chokes size 13 to 19
B
T
H
d1
L3
L1 L2
H1
d2
Mounting direction
Size B H H1 T L1 L2 L3 d1 d2 Weight
13Z2F04-1003 168 160 160 280 135 145 120 7 6.5 5.2
14Z2F04-1003 168 160 160 280 135 145 120 7 6.5 5.5
15Z2F04-1003 168 160 160 310 135 145 120 7 6.5 6.6
16Z2F04-1003 168 160 160 315 135 145 120 7 6.5 7.0
17Z2F04-1003 232 180 180 255 150 160 184 8.5 8.5 10.0
18Z2F04-1003 245 180 180 260 150 160 184 8.5 8.5 11.2
19Z2F04-1003 250 180 190 270 150 160 184 8.5 8.5 11.7

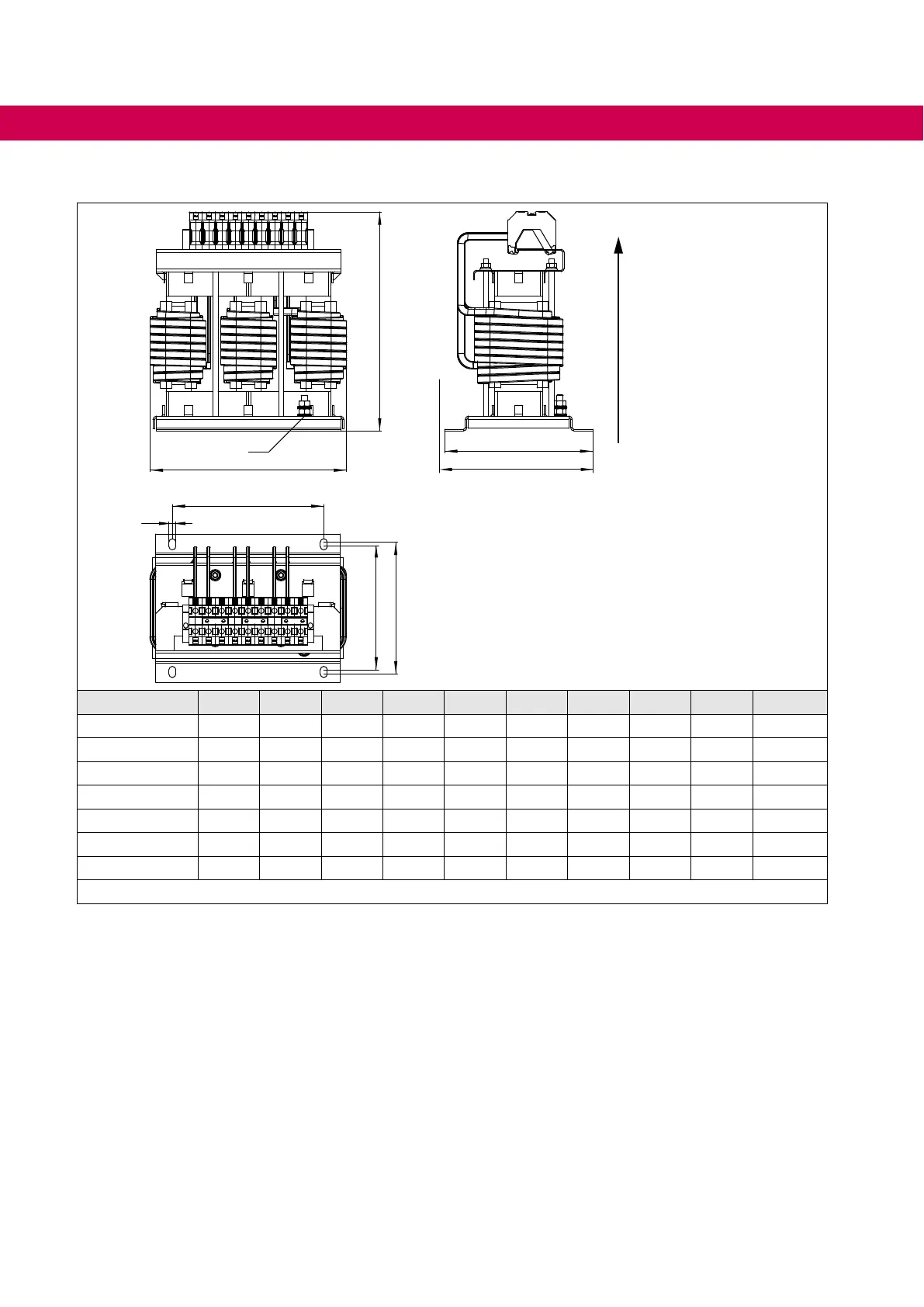

Figure 2: Dimensions and weights motor chokes size 13 to 19
All dimensions in mm; all weights in kg.
