KEB COMBILINE Z2 Series User Manual

42
INSTALLATION AND CONNECTION
4.5.3 Connection of the capacitor module with a power capacitor
Legend
PE Protective earth connection via connection point on the retaining plate
3 x M12 bolt Capacitor connections U1.3, V1.3, W1.3

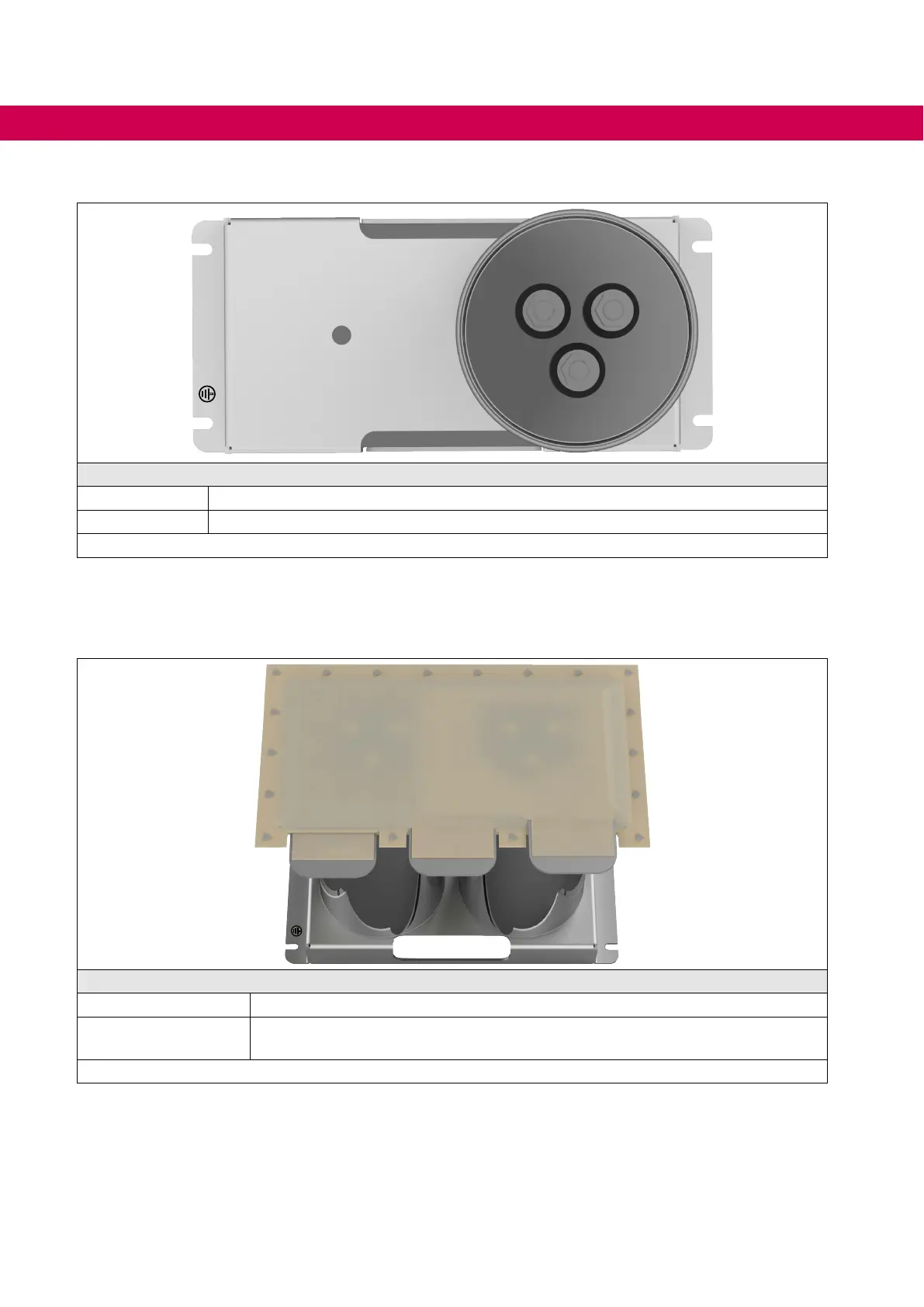

Figure 18: Connection of the capacitor module with a power capacitor
The 3 phases can be contacted at the 3 connection points.
4.5.4 Connection of the capacitor module with two power capacitors
Legend
PE Protective earth connection via connection point on the retaining plate
3 x FlatAL 80x2mm;
Drilling:
⌀ = 13mm
Capacitor connection for M12 screw
Figure 19: Connection of the capacitor module with two power capacitors
The 3 phases can be contacted at the 3 connection points.
