DIMENSIONS AND WEIGHTS

3.3.3 Motor chokes size 20 to 22

Mounting direction

Size B H H1 T L1 L2 L3 d1 d2 Weight

20Z2F04-1003 313 180 205 275 150 160 244 8.5 8.5 15.0

21Z2F04-1003 335 180 220 275 150 160 244 8.5 8.5 17.3

22Z2F04-1003 335 180 240 265 150 160 244 8.5 8.5 17.0

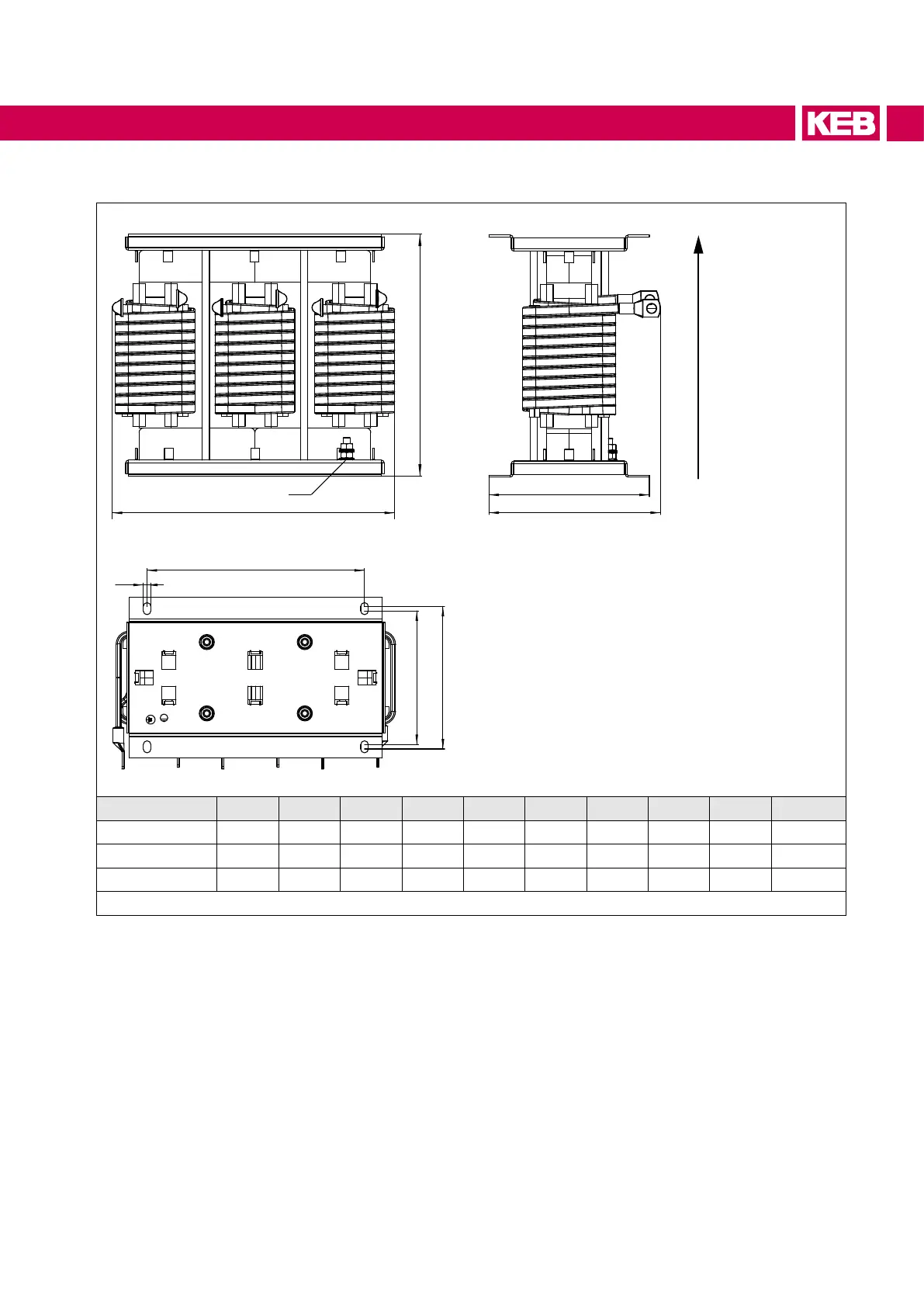

Figure 3: Dimensions and weights motor chokes size 20 to 22

All dimensions in mm; all weights in kg.
