KEB COMBILINE Z2 Series User Manual

41
INSTALLATION AND CONNECTION

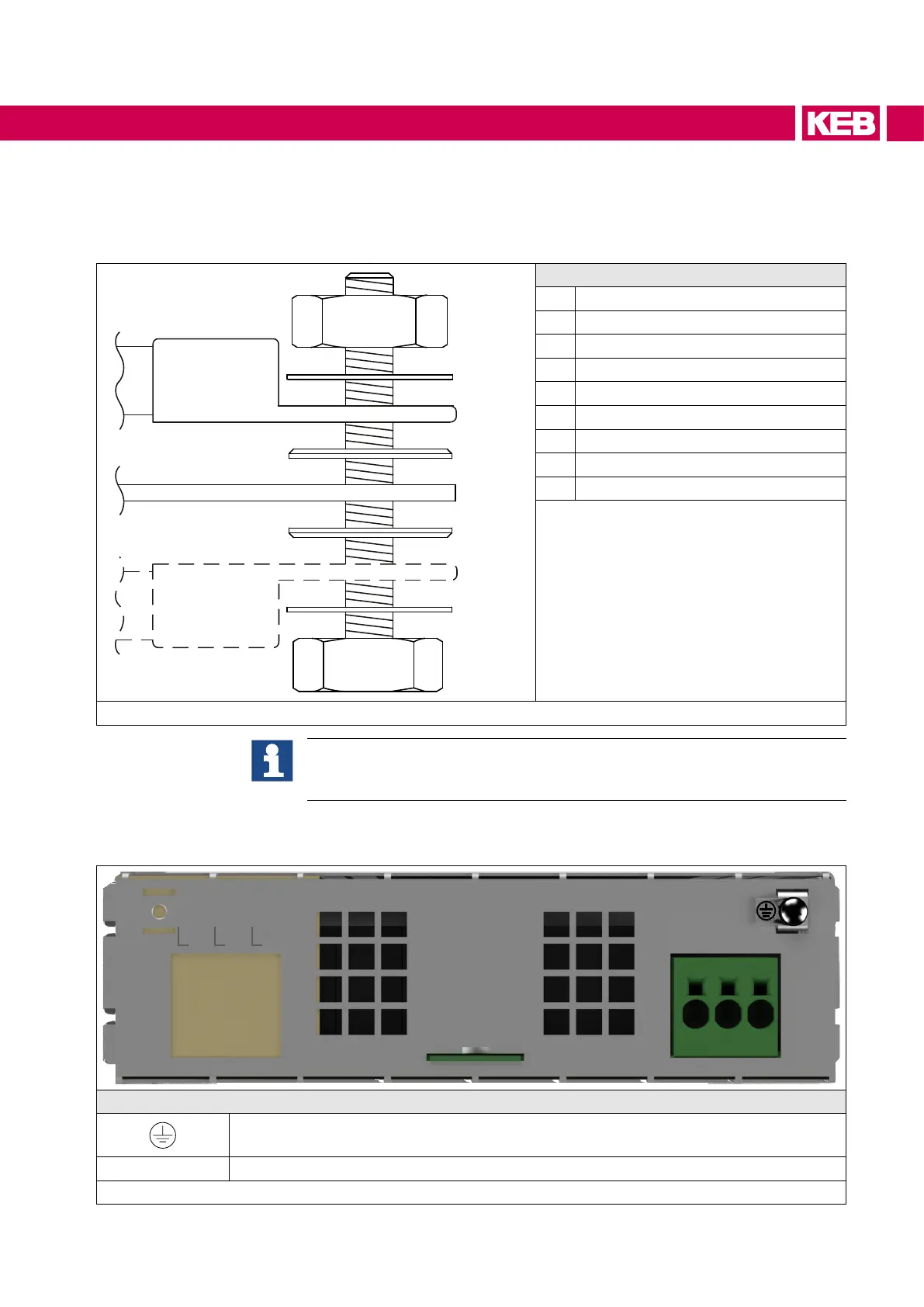

4.5 Connection of the capacitor modules
4.5.1 Connecting example for capacitor modules with M12 screw connection
①
②
③
④
⑤
⑥
⑦
⑧
⑨
Legend
①
Nut for M12 screw
②
Brass disc
③
Ring crimp connector
④
Cupal-washer (copper side top)
⑤
Aluminium sheet
⑥
Cupal-washer (copper side bottom)
⑦
Optional ring crimp connector
⑧
Brass disc
⑨
M12 screw
Figure 16: Connecting example for capacitor modules with M12 screw connection
TheM12screwmustbecounterxedduringassembly.
The tightening torques can be found in chapter => „Mechanical data of the
motor chokes“.
4.5.2 Connection of the capacitor module in the housing
3´ 2´
1´
U1.3 V1.3 W1.3
Legend
Protective earth connection
U1.3, V1.3, W1.3 Capacitor connection
Figure 17: Connection of the capacitor module in the housing
