KEB COMBILINE Z2 Series User Manual

43
INSTALLATION AND CONNECTION
4.5.5 Connection of the capacitor module with three power capacitors
Legend
PE Protective earth connection via connection point on the retaining plate
3 x FlatAL 80x2mm;
Drilling:
⌀ = 13mm
Capacitor connection for M12 screw

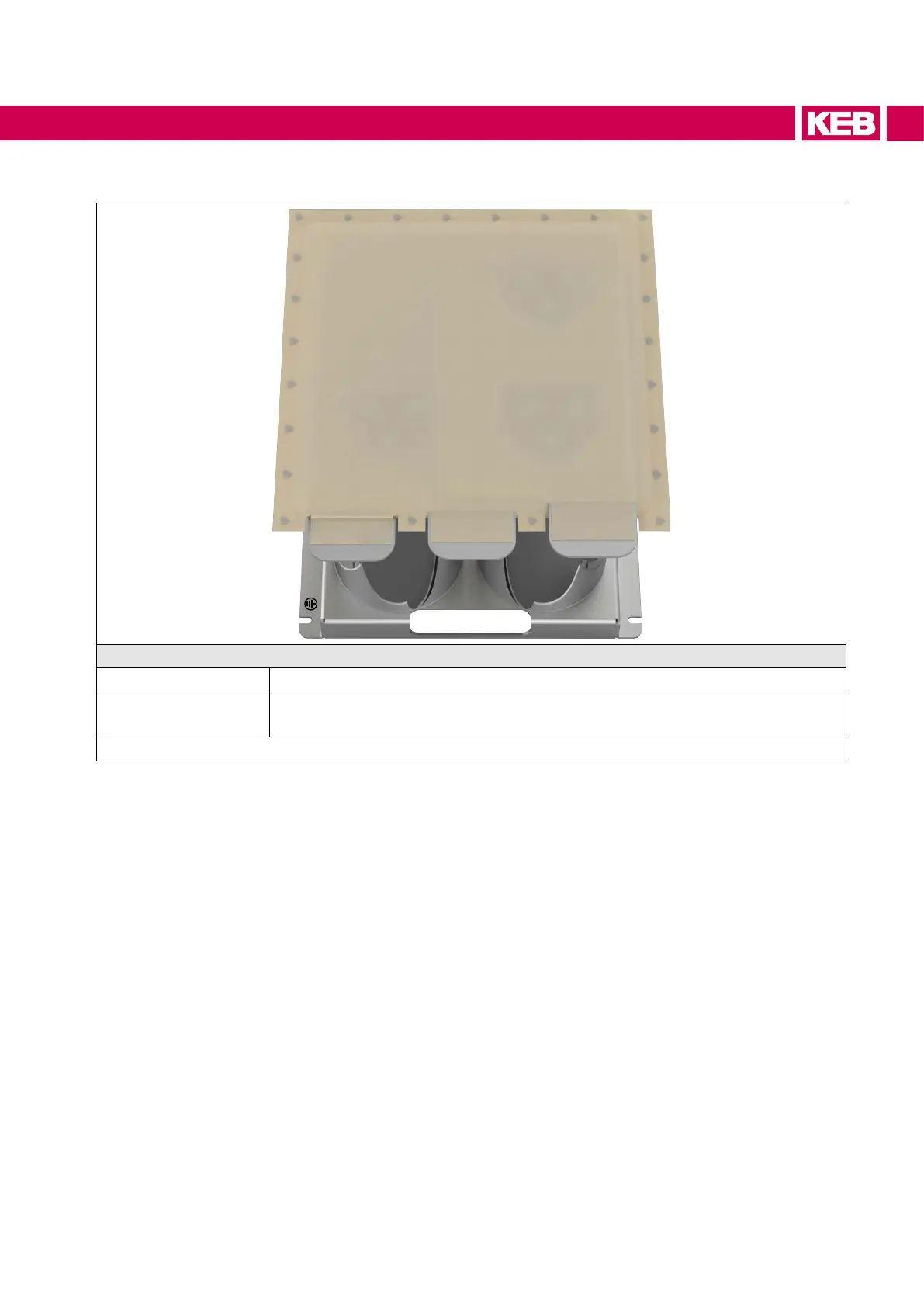

Figure 20: Connection of the capacitor module with three power capacitors
The 3 phases can be contacted at the 3 connection points.
